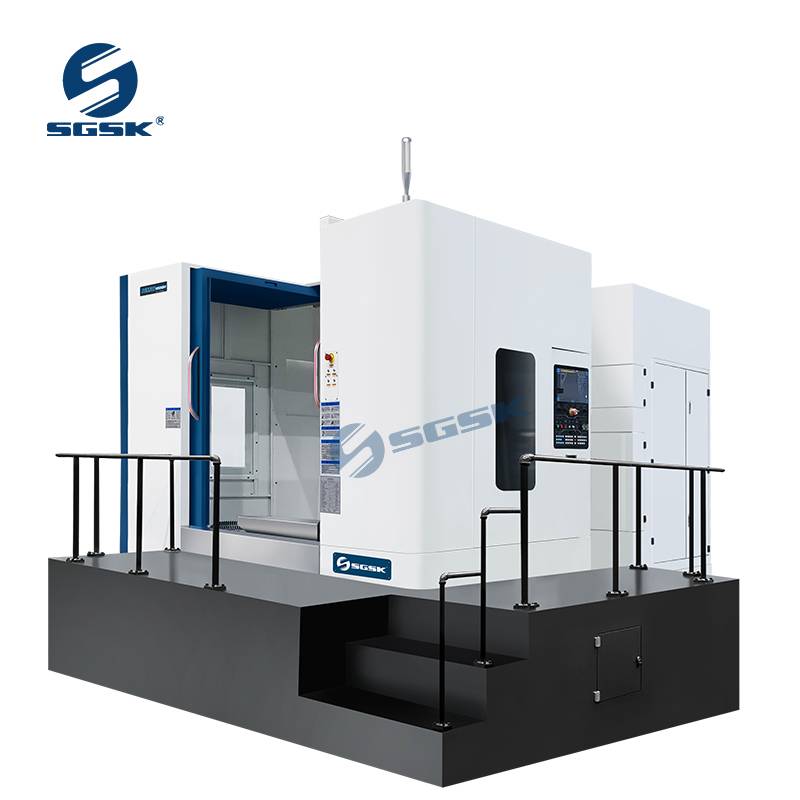

HMU1250 5 Axis CNC Machining Center

Inquire Now Next Product

Product Main Technical Parameters

Specification	Units	HMU800	HMU1000	HMU1250
X-axis travel (coumn left-right movement)	mm	800	1000	1250
Y-axis tavel (forward and backward movement of rotay table)	mm	1000	1100	1250
Z-axis travel (headstock up and down)	mm	900	1000	1100
A-axis rotary range	°	-30°～+180°	-30°～+180°	-30°～+180°
C-axis rotary range	°	360°	360°	360°
Max.workpiece rotary diameter	mm	Ø 1100	Ø 1100	Ø 1200
Distance from spindle nose to table nose (spindle vertical)	mm	150～1050	150～1150	150～250
Distance from spindle axis to table rotation center(spindle vertical)	mm	-200～800	-200～900	-200～1050
Distance from spindle axis to table surface (spindle horizontal)	mm	50～950	50～1050	50～1150
Distance from spindle nose to table rotation center (spindle horizontal)	mm	-100～900	-100～1000	-100～1150
Table size	mm	630*630	800*800	1000*1000
Min.indexing unit	°	0.001	0.001	0.001
Max.table load	kg	1200	2000	3000
Rotary table speed	rlmin	11.1	11.1	11.1
Max.spindle speed	rpm	18000	18000	18000
Spindle taper		HSK-A63	HSK-A63	HSK-A63
Spindle motor power	KW	30	30	30
Spindle torque	Nm	72/85	72/85	72/85
Rotational speed of the pendulum head	rpm	60	60	60
Rated torque	Nm	1200	1200	1200
Clamping system		液压Hydraulic	液压Hydraulic	液压Hydraulic
X/Y/Z rapid feed speed	m/min	48	48	48
X/Y/Z max.cutting feed speed	m/min	20	20	20
Max tool magazine capacity		45	45	45
Max tool diameter(full/empty)	mm	75/130	75/130	75/130
Max tool length	mm	350	350	350
Max,tool weight	kg	8	8	8
Linear axis positioning accuracy X/Y/Z	mm	0.008/0.008/0.008	0.008/0.008/0.008	0.008/0.008/0.008
Linear axis repeatable positioning accuracy X/Y/Z	mm	0.005/0.005/0.005	0.005/0.005/0.005	0.005/0.005/0.005
Rotary axis positioning accuracy	arc/sec	8	8	8
Repeatable positioning accuracy of rotary axis	arc/sec	4	4	4
Control system model.		SINUMERIK One	SINUMERIK One	SINUMERIK One
Total control axes	axes	5	5	5
Number of linkage control axes	axes	5	5	5
