Product Main Technical Parameters

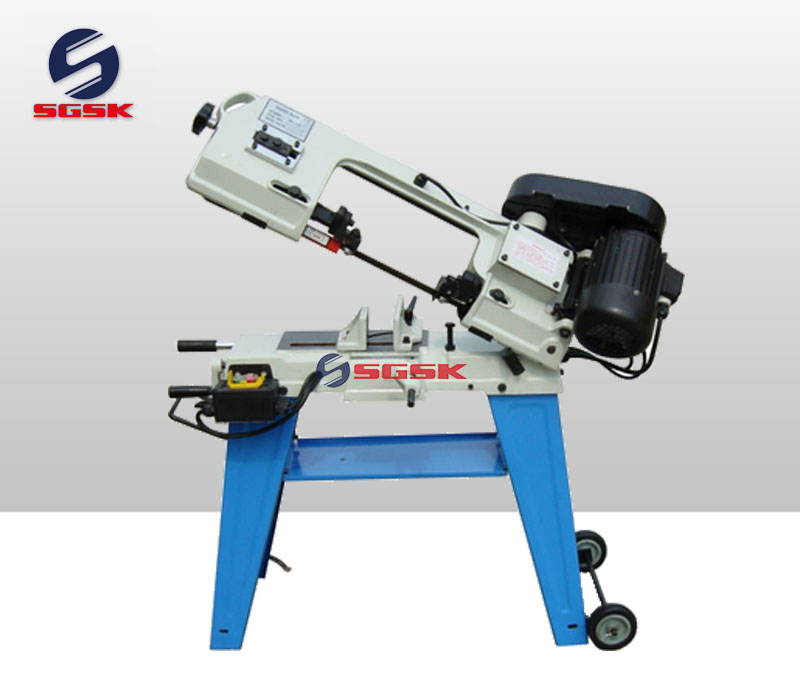

Band Saw Machine Features:
1. This band saw features a belt drive and 3-speed conversion.
2. Light-weight design, suitable for field and construction site application
3. The maximum processing capacity is 115 mm (4.5”).
4. The saw bow can rotate from 0° to 45°, and can be used vertically and horizontally.
5. It features quick and fixed clamping and is equipped with a block feeder (with fixed sawing length)
6. With a sizing device, machine will stop automatically after sawing materials
Band Saw Machine Main Technical Parameter
| Model | BS-115 | |
| Capacity | Circular @90° | 115mm(4.5”) |
| Rectangular @90° | 100X150mm(4”x6”) | |
| Circular @45° | 100mm(4”) | |
| Rectangular @45° | 60x100mm(2.4”x4”) | |
| Blade speed | @60Hz | 24,35,61MPM |
| @50Hz | 20,29,50MPM | |
| Blade size | 13x0.6x1538mm | |
| Motor power | 375W 1/2HP(3PH), 550W 3/4HP(1PH) | |
| Drive | V-belt | |
| Packing size | 97x46x46cm | |
| N.W./G.W. | 68/72kg | |
