Product Model：

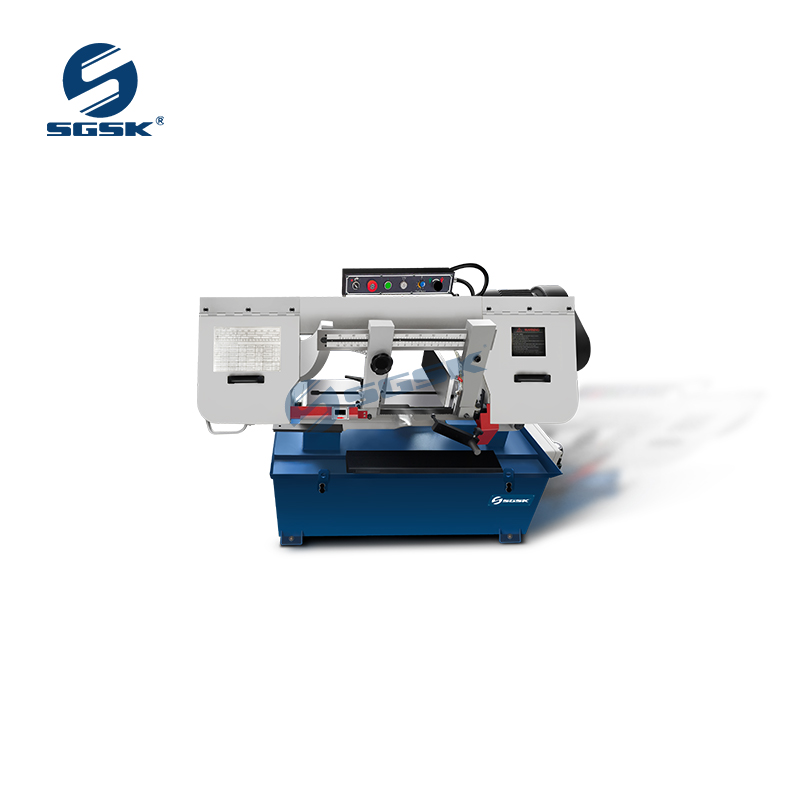

BS-912B Band Saw Machine

Inquire Now Next Product

Product Main Technical Parameters

Band Saw Machine Main Performance Characteristics：

1.Maximum capability 9"
2. The belt gear of it has four cutting speeds
3. The quick clamps can be rotated from 0° to 45°
4. High-capacity due to controlled by motor
5. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
6 Has a sizing device (the machine will automatically stop after sawing materials)
7. With power break protection device, machine will power off automatically when the rear protective cover is opened
8. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length)
10.V-belt driven

Band Saw Machine Main Technical Specifications:

Model		BS-912B
Capacity	Circular @90°	229mm(9”)
	Rectangular @90°	178x305mm (7”x12”)
	Circular @45°	150mm(6”)
	Rectangular @45°	127x150mm (5”x6”)
Blade speed	@60Hz	32,60,88,115MPM
Blade speed	@50Hz	26,50,73,95MPM
Blade size		27x0.9x2655mm
Motor power		1.1kw 1.5HP(3PH),1.5kw 2HP(1PH)
Drive		V-belt
Packing size		154x59x115cm
N.W./G.W.		230/260 kg
