Product Model:

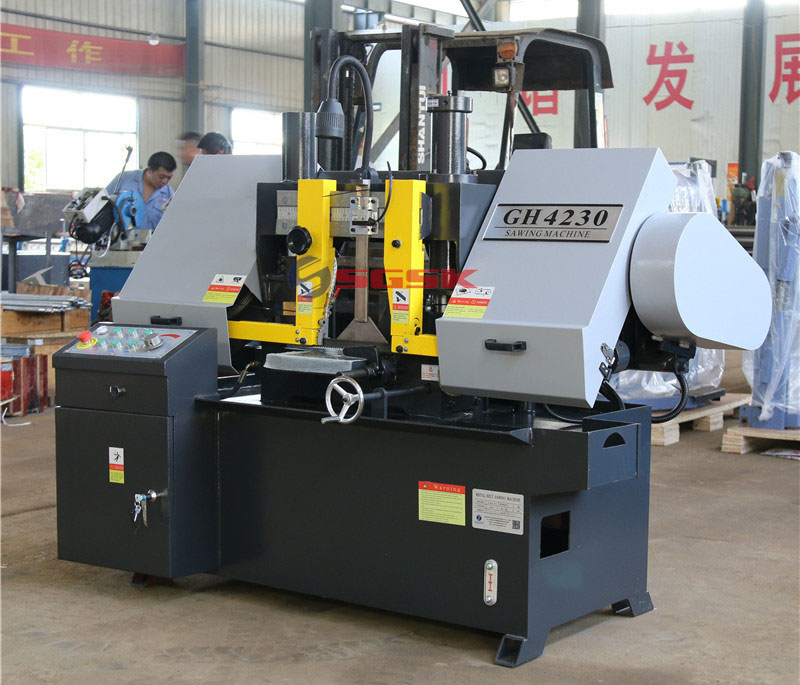

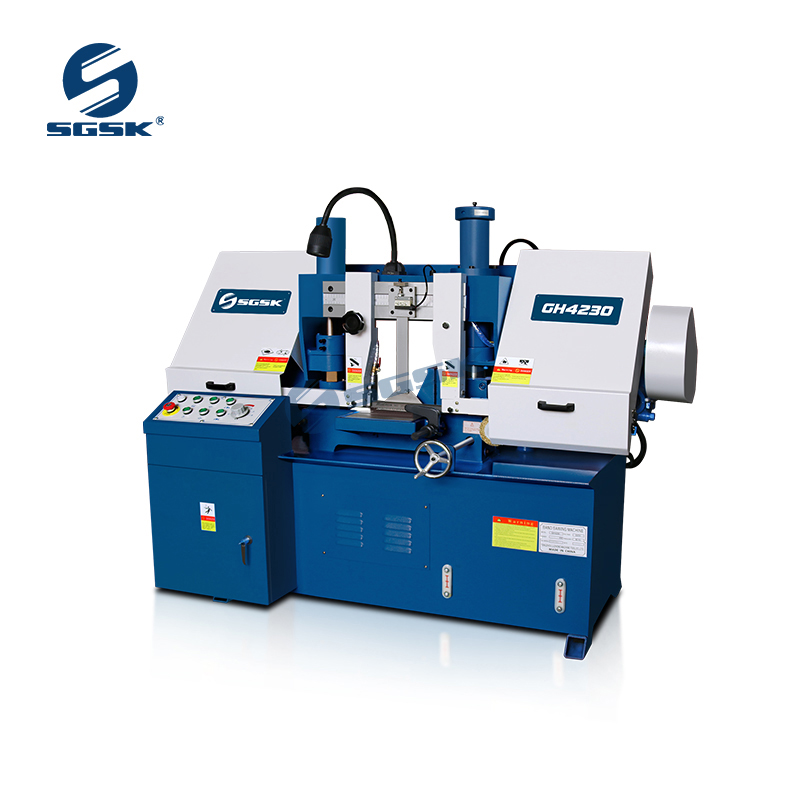

GH4230 Band Saw Machine

Product Main Technical Parameters

Band Saw Machine Main Performance Characteristics:

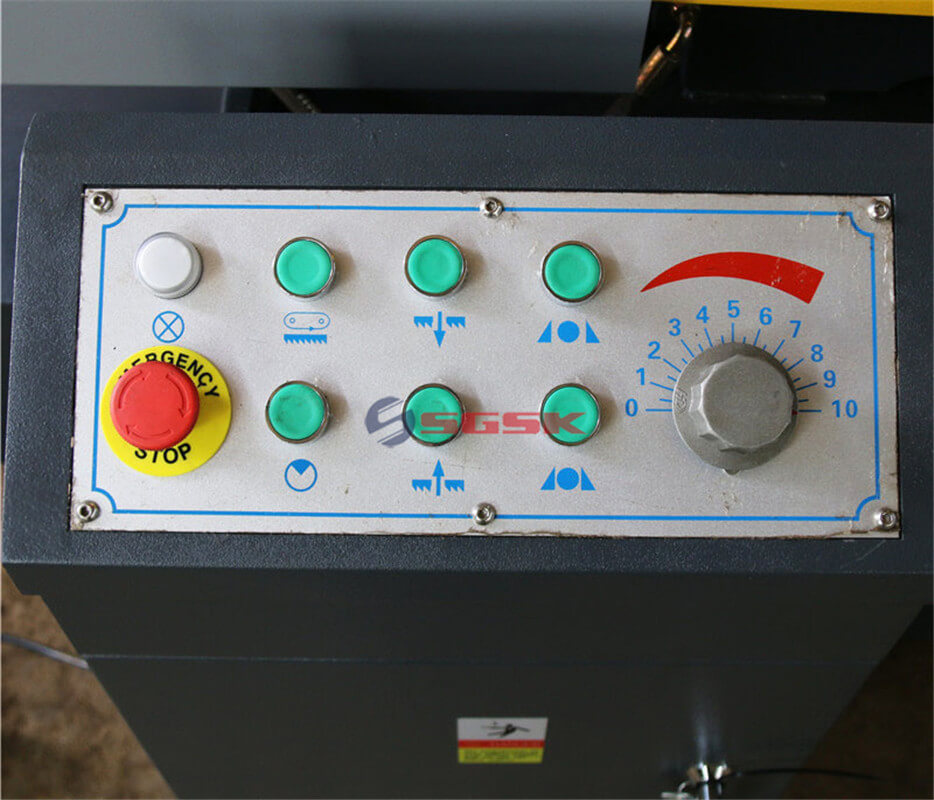

1. Button type control panel, sawing mode change flexible, manual and automatic combination;

2. PLC controller, complete automatic sawing process, feeding length 0-500mm;

3. Double upright column structure, vertical lift, high stability;

4. Cutting speed  hydraulic control, stepless regulation speed,

5. Stable performance, high efficiency, suitable for bulk material sawing.


Band Saw Machine Application:

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.


Band Saw Machine Main Technical Parameters:

Main technical parametersGH4230
Sawing range300-300×300mm
Belt saw blade  size3505×34×1.1mm
Saw blade speed27,45,69mm/min

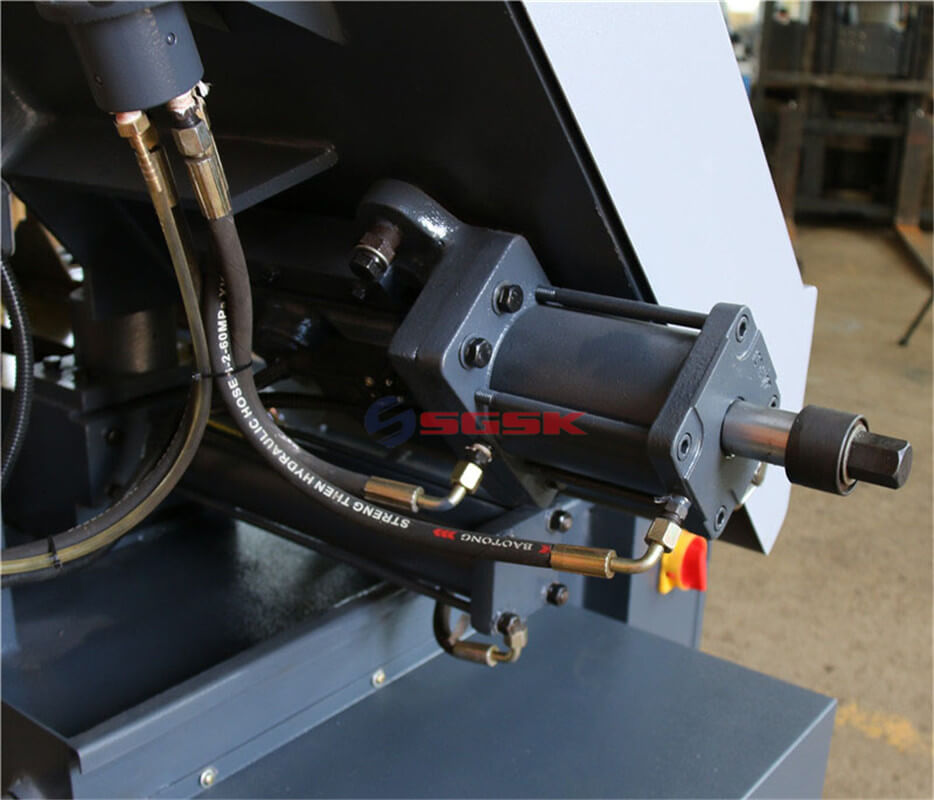

Working clamping modehydraulic pressure
Main motor power3kW
Hydraulic motor power0.75kW
Cooling pump power0.04kW
External form size1860×900×1400mm
