Product Model：

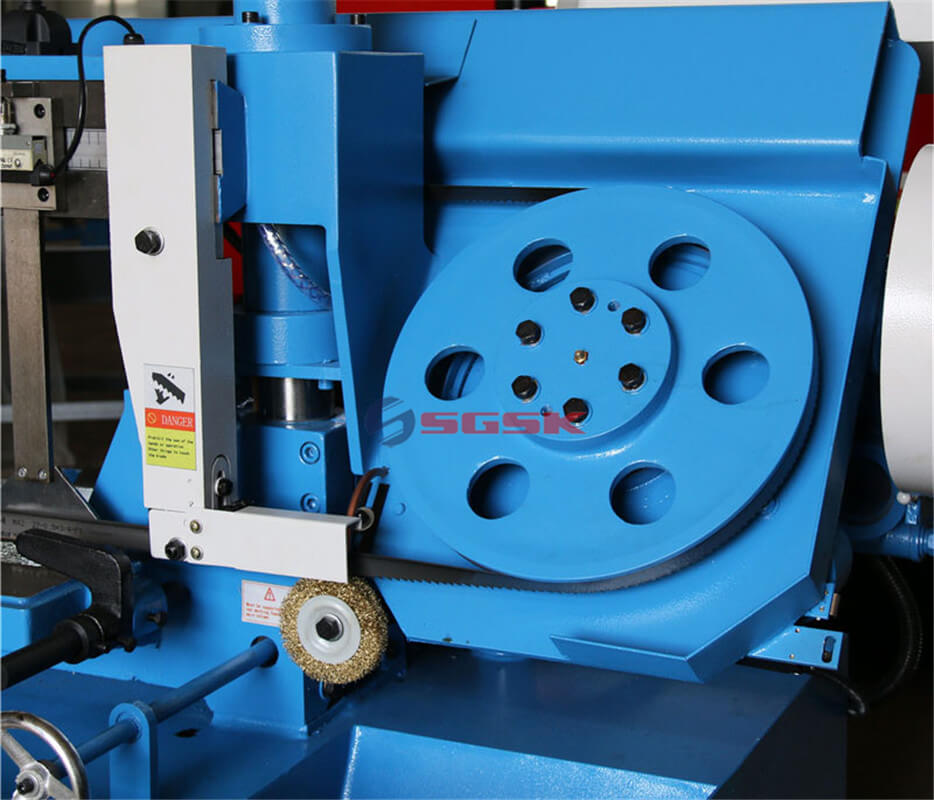

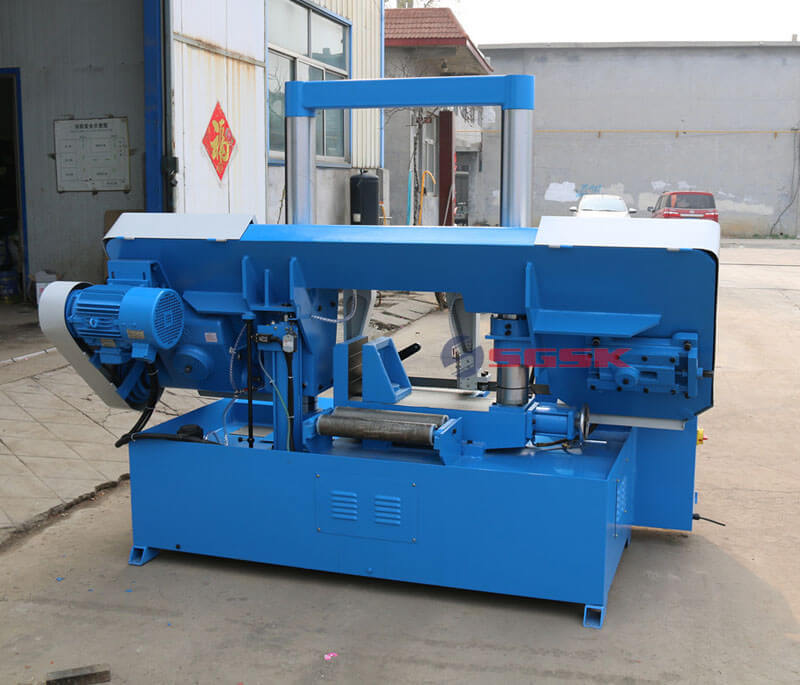

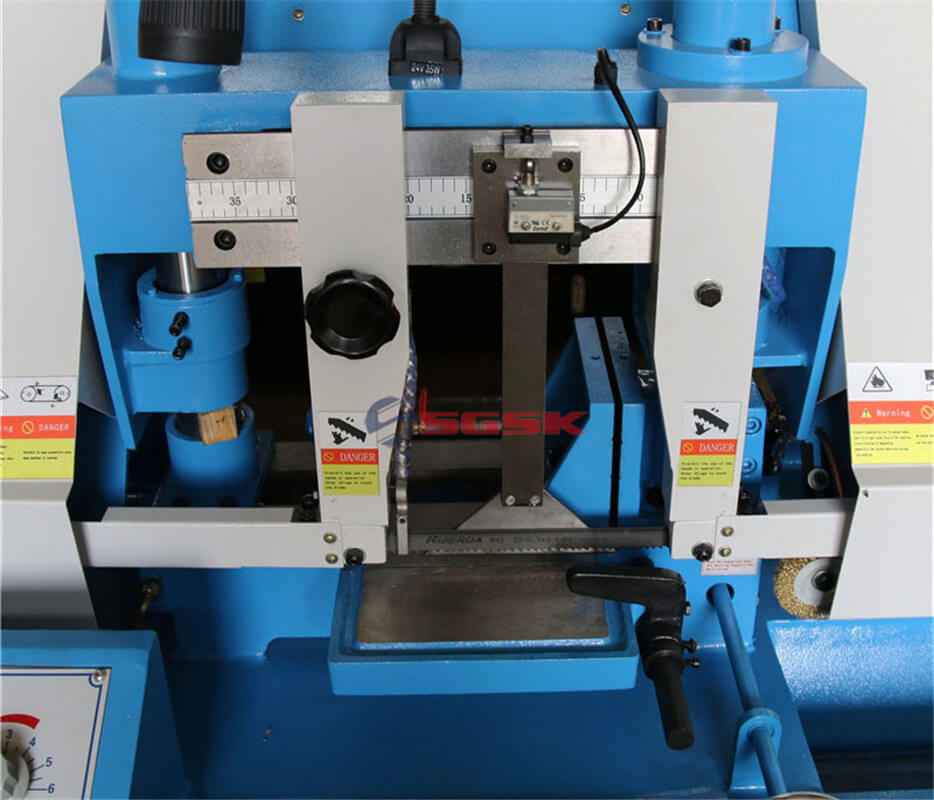

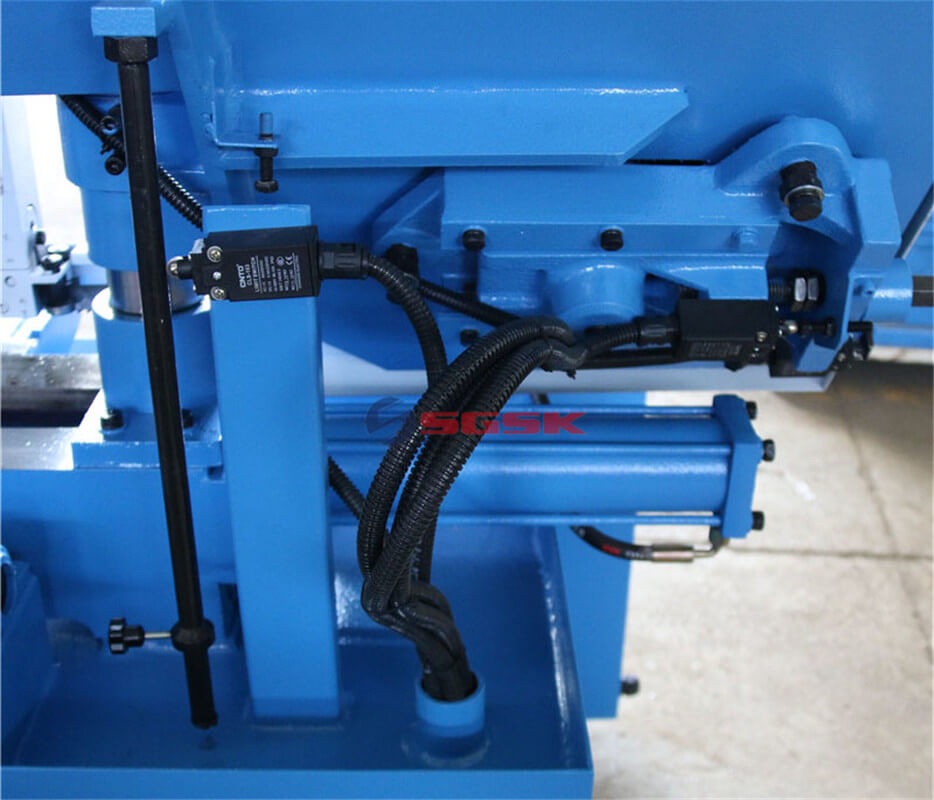

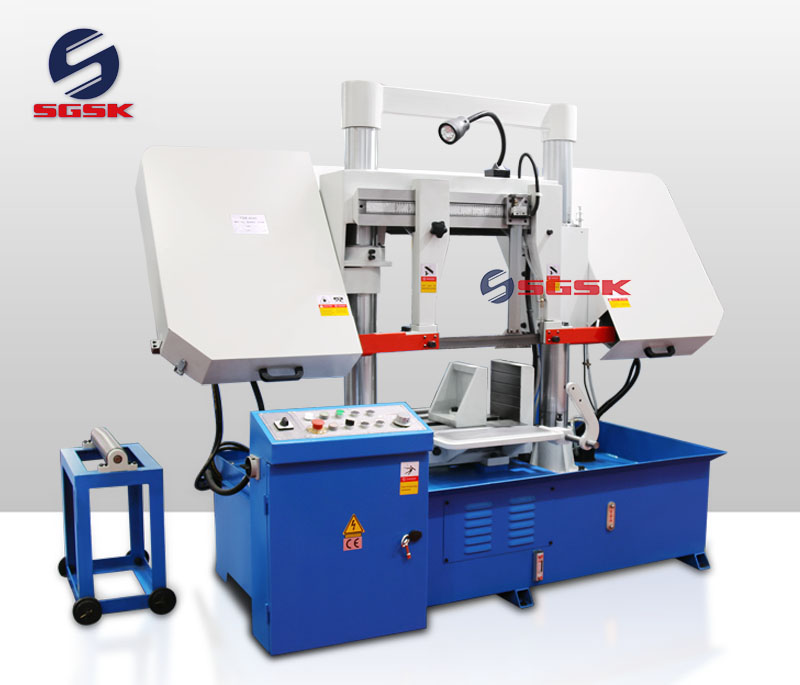

GH4240 Band Saw Machine

Inquire Now Next Product

Product Main Technical Parameters

Band Saw Machine Main Performance Characteristics：

1. Double upright column machine type ,rigidity good stability.

2. Hand wave feeding mechanism, sawing automatic cycle.

3. Feeding stepless speed change , Saw belt stepless speed change.

4. The size of the positioning device, For batch production.

Band Saw Machine Application：

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Band Saw Machine Main Technical Parameters:

Main technical parameters		GH4240
Sawing range	Round steel	Φ400mm
	Square material	400×400mm
Belt saw blade size		32×1.1×4590mm
Saw blade speed		19-86m/min
Motor power	Main motor	4kw
	Oil pump motor	0.75kw
	Cooling pump motor	0.125kw
Hydraulic system pressure		3.2MPa
Working table height		575mm
Sawing machine external form size		2264×1304×1862mm
Package size		2678×1780×2150mm
NW/GW		1410/1800kg
