Product Model：

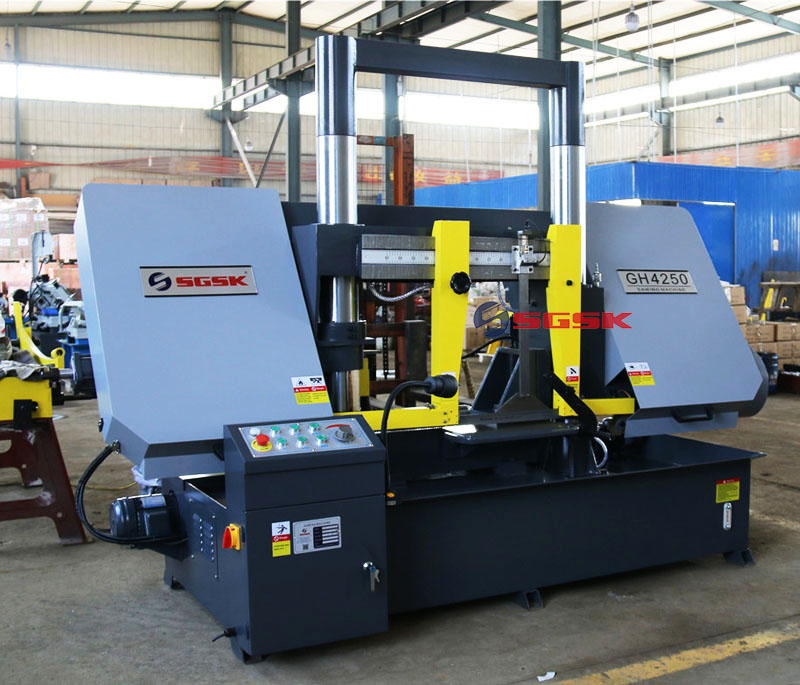

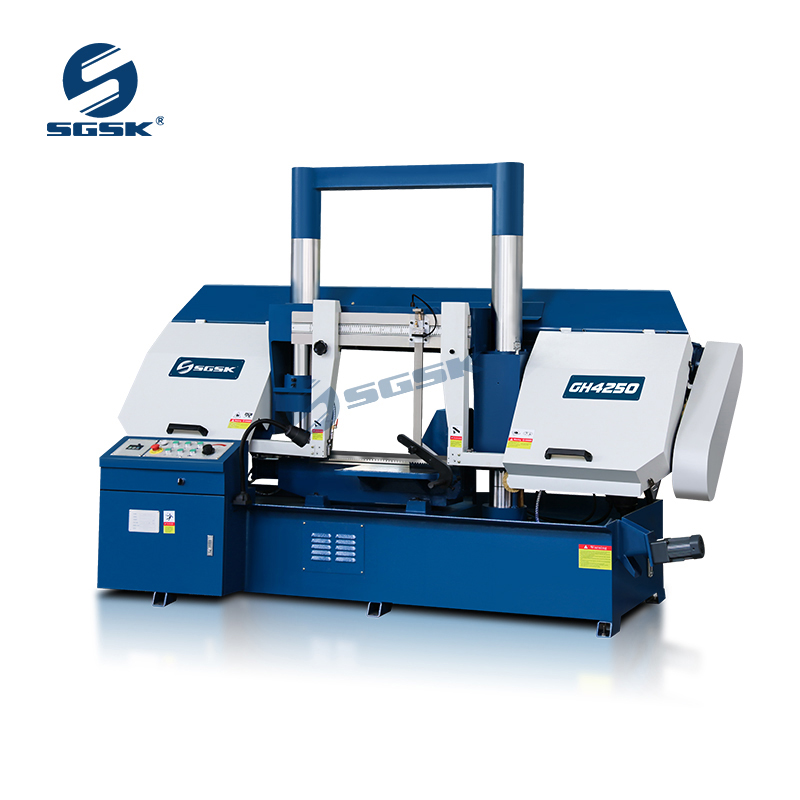

GH4250 Band Saw Machine

Inquire Now Next Product

Product Main Technical Parameters

Band Saw Machine Main Performance Characteristics：

1. Double upright column machine type ,rigidity good stability.

2. Hand wave feeding mechanism, sawing automatic cycle.

3. Feeding stepless speed change , saw belt stepless speed change.

4. The size of the positioning device,for batch production.

Band Saw Machine Application：

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Band Saw Machine Main Technical Specifications:

Specifications			GH4250
Sawing range		Round steel	Φ500mm
		Square material	500×500mm
Belt saw blade size			5800×41×1.1mm
Saw blade speed			27\45\69m/min
Motor power	Main motor		5.5kw
	Oil pump motor		0.75kw
	Cooling pump motor		0.125kw
Sawing machine external form size			2800×1300×2000mm
