Product Main Technical Parameters
Band Saw Machine Features：
1.Solid steel saw frame within a dual-column frame guide
2.Flat and low profile for easier handling of heavy or large workpiece
3.Feed of the saw frame is infinitely variable via a hydraulic throttle valve

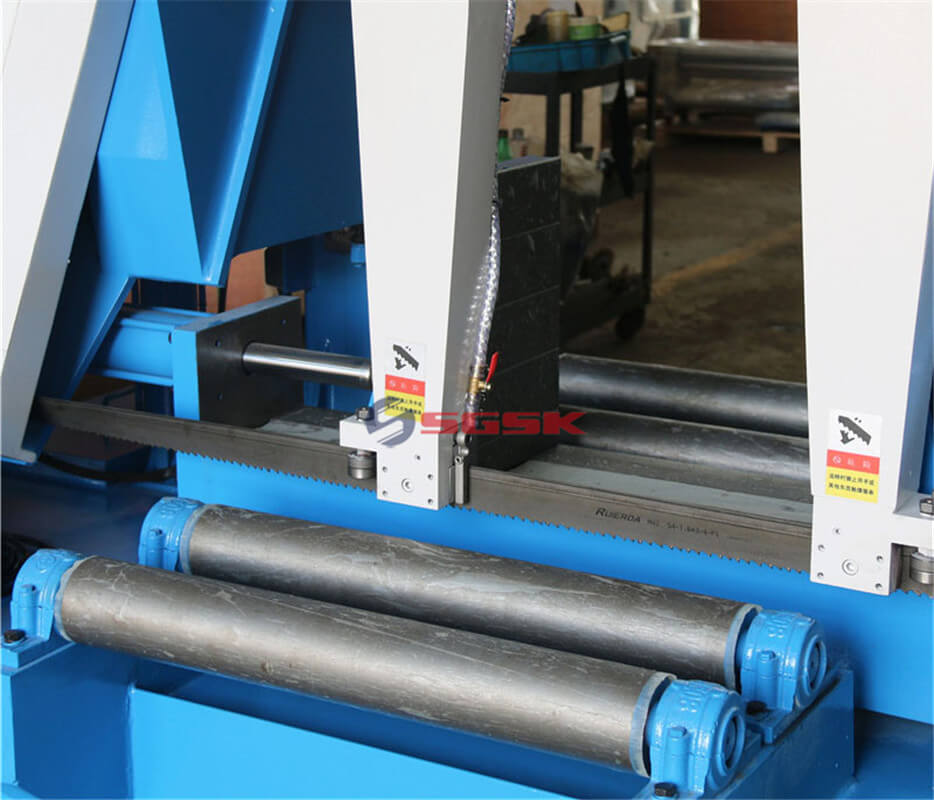

4.Adjustable saw blade guide ensures good cutting result at any workpiece diameter

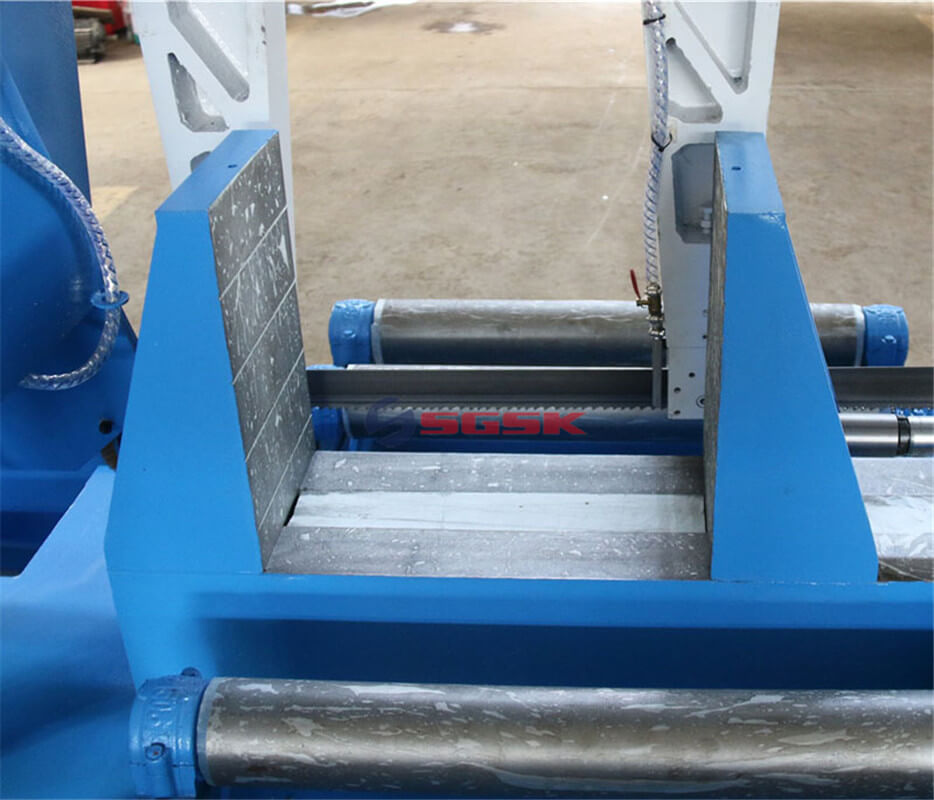

5.Hydraulic workpiece clamping included
Band Saw Machine Main Technical Specifications:
| Specifications | GH4260 | ||
| Sawing range | Round steel | Φ600mm | |
| Square material | 600×600mm | ||
| Belt saw blade size | 6500x41x1.3mm | ||
| Saw blade speed | 27\45\69m/min | ||
| Motor power | Main motor | 5.5kw | |
| Oil pump motor | 0.75kw | ||
| Cooling pump motor | 0.09kw | ||
| Overall dimension | 3200x1500x2000mm | ||
| Weight | 2200kg | ||
| Standard equipment | Optional equipment |
hydraulic workpiece clamping , hydraulic blade tensioning , 1 saw blade belt , material support stand , coolant system , work lamp ,operation manual | automatic blade breakage control , fast drop protection devise,hydraulic blade tension , automatic chip removal device , various blade linear speed, blade protection covers , wheel cover opening protection , Ce standard electrical equipment . |
