Product Main Technical Parameters

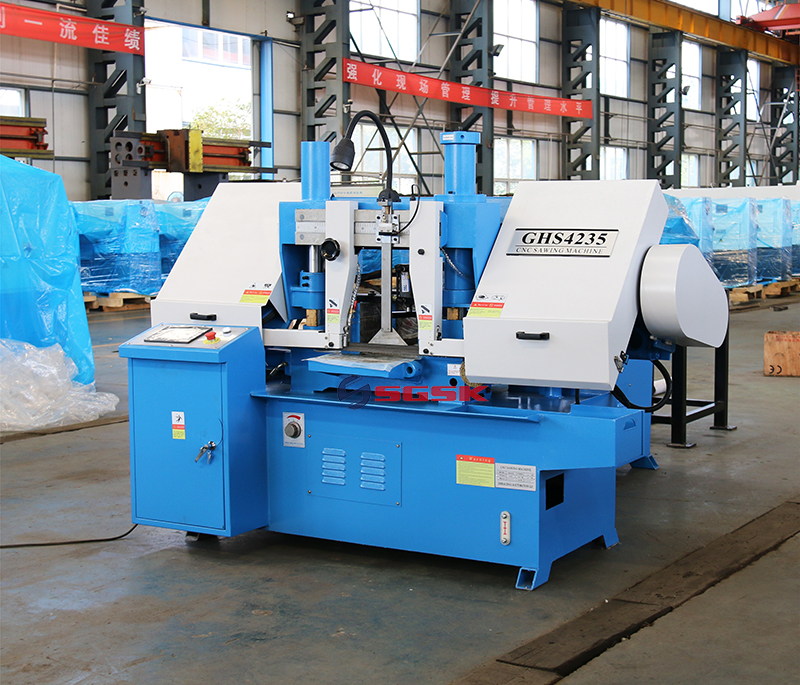

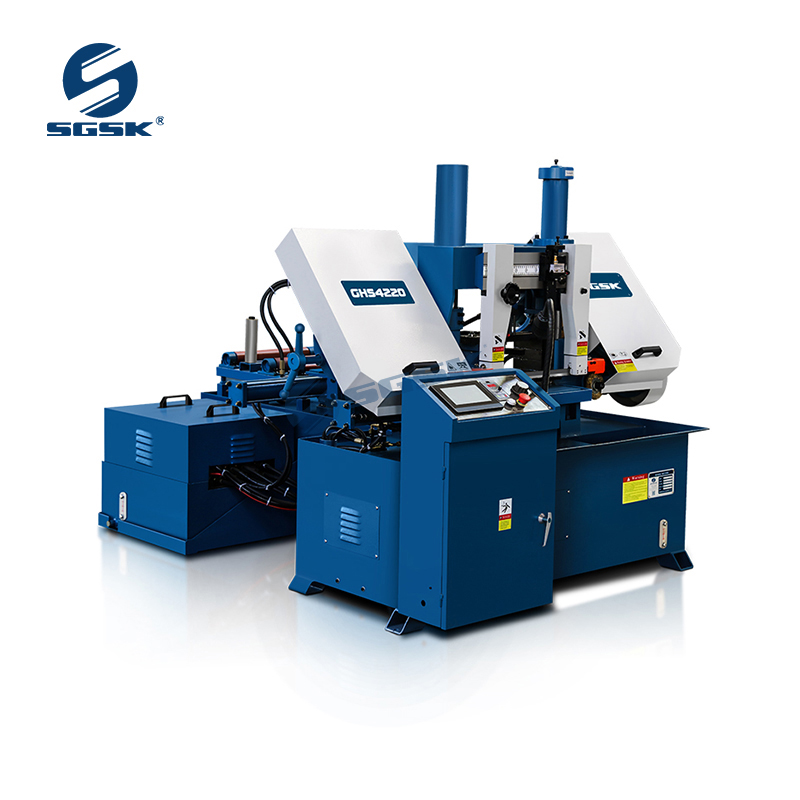

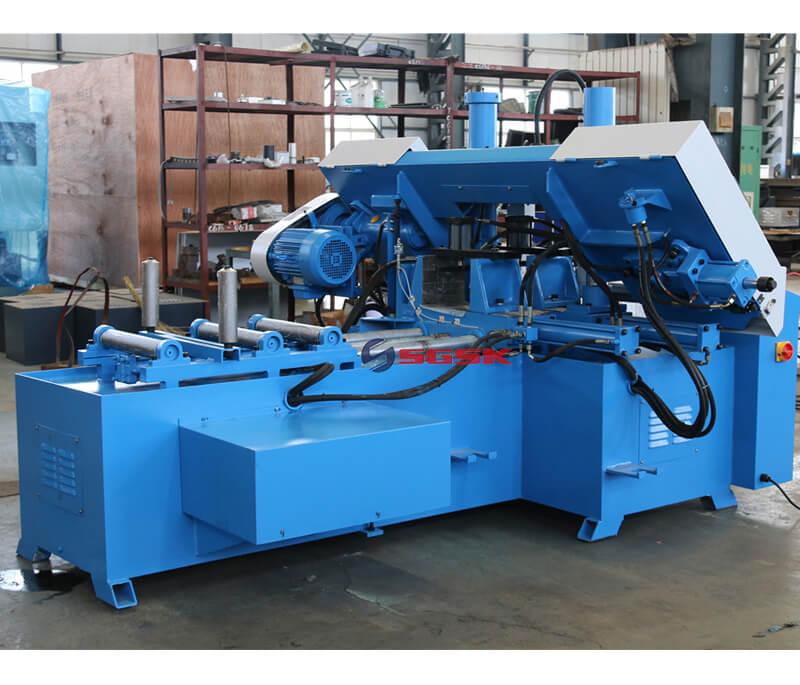

CNC Sawing Machine Main Performance Characteristics：

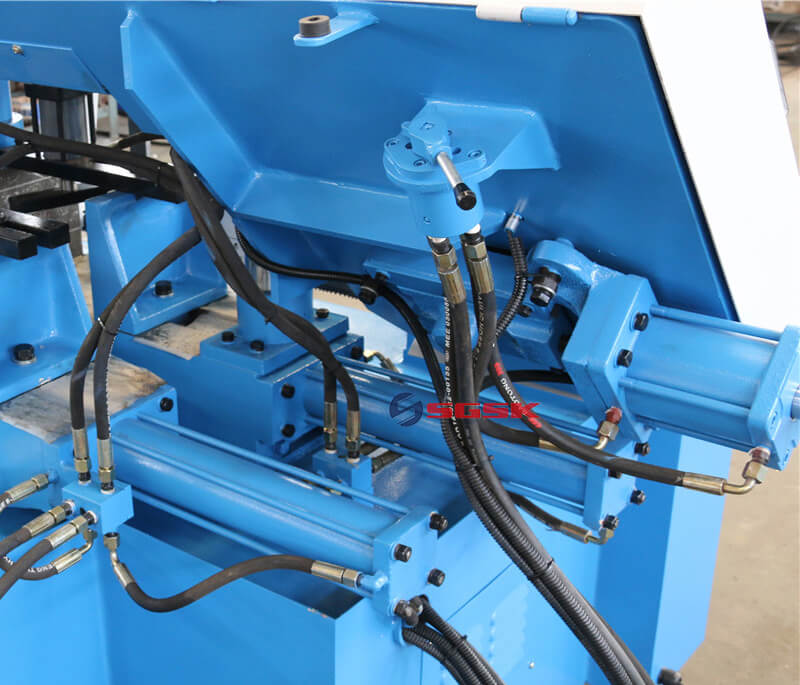

◆Cutting speed hydraulic control, stepless regulation speed，
◆The guide block of scientific and reasonable structure, prolong the service life of the saw blade;
◆Double upright column structure, stable operation;
◆Sawing stability, high precision;

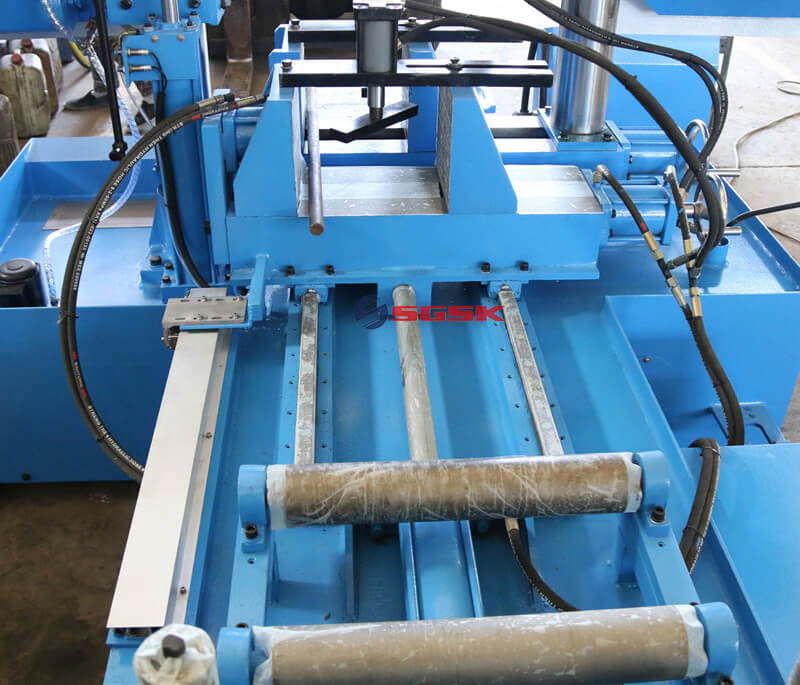

◆Work piece clamping use manual clamping, convenient operation
CNC Sawing Machine Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
CNC Sawing Machine Main Technical Parameters:
| Specifications | Unit | GHS-4235 | GHS-4240 |
| Cutting Capacity | mm | 350-350×350 | 400-400×400 |
| Blade size | mm | 4115x34x01.1 | 5000x41x1.3 |
| Blade speed | m/min | 27,45,69 | 27,45,69 |
| Main motor Power | kW | 3 | 4 |
| Hydraulic Motor Power | kW | 0.55 | 0.75 |
| Coolant pump motor Power | kW | 0.04 | 0.09 |
| Dimension | mm | 1860×900×1100 | 1860×900×1100 |
