Product Main Technical Parameters
Rotary Angle Sawing Machie Main Performance Characteristics：
1, extremely rigid dual-column cast -iron construction
2, Three saw blade speed -directly shifted via main drive motor
3, Variable saw frame feed

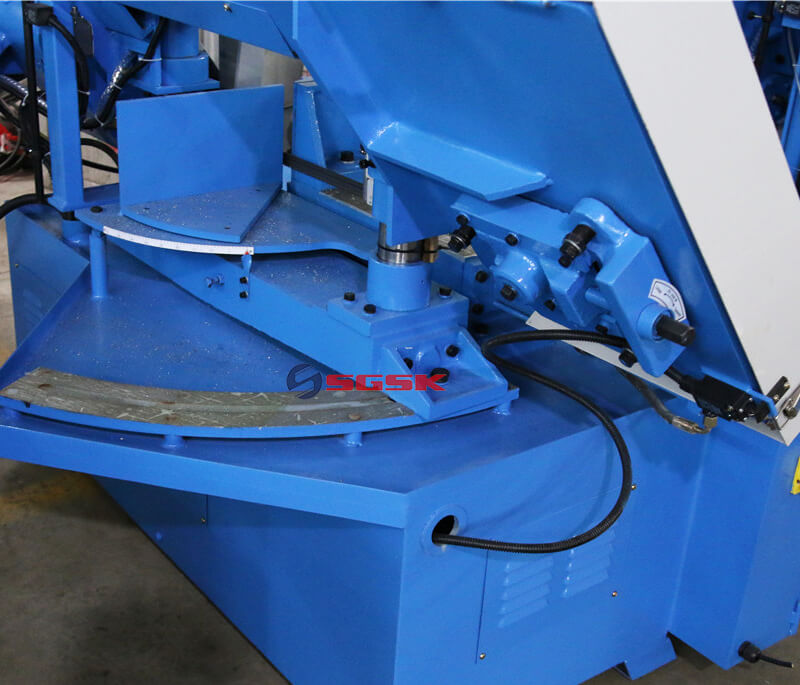

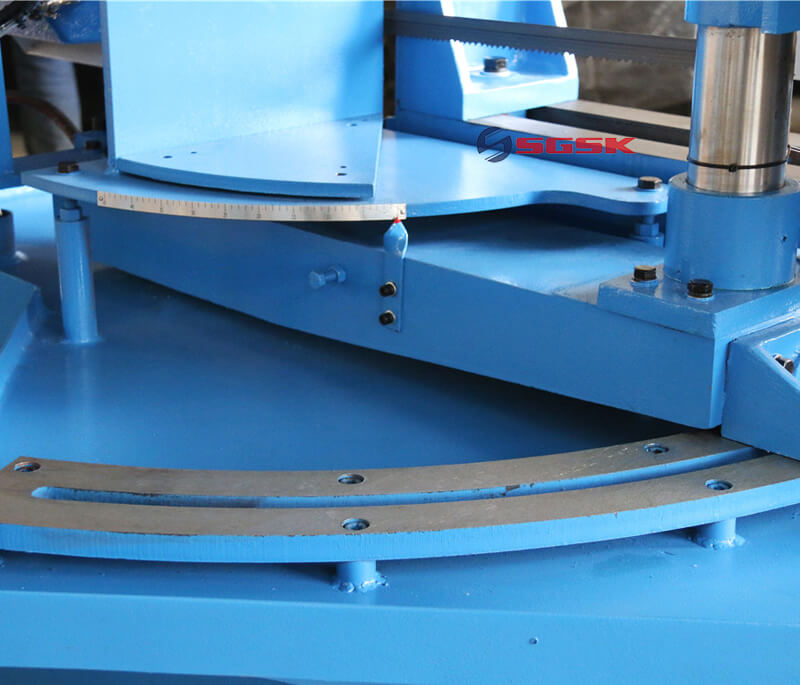

4, Sawing angle adjustable 45°
5, Saw frame automatically returns to home position at the end of each cut
6, extra rigid ,adjustable saw blade guide
7, Hydraulic workpiece clamping

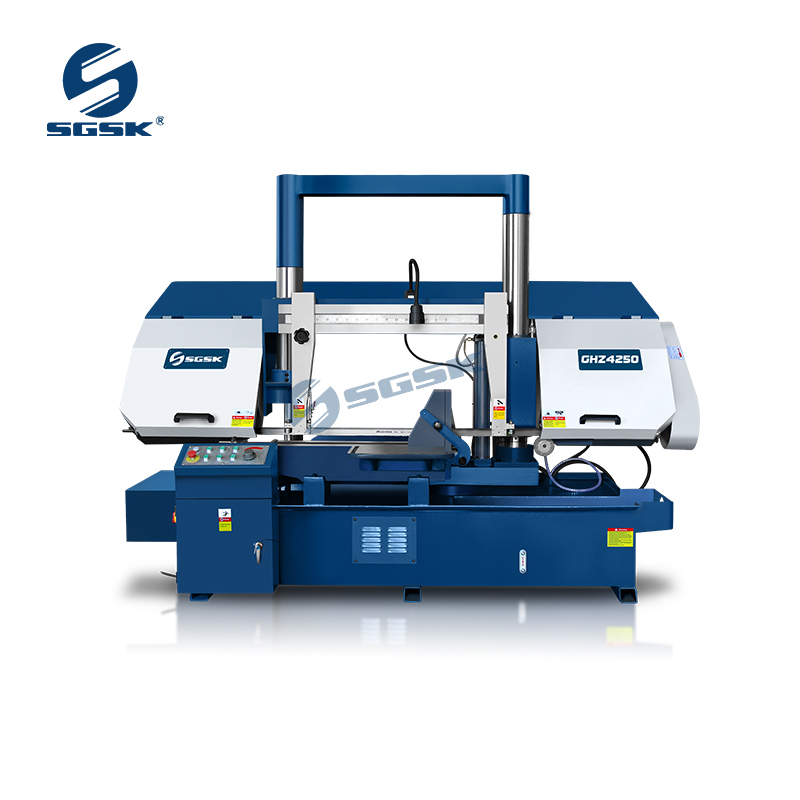

Rotary Angle Sawing Machie Main Technical Specifications:
| Specifications | GHZ4250 | |
| Cutting capacity 90° | Rectangular | 500×500mm |
| Circular | 500mm | |
| Cutting capacity 45° | Rectangular | 500x350mm |
| Circular | 350mm | |
| Cutting capacity 30° | Rectangular | 500x430mm |
| Circular | 430mm | |
| Saw blade speed | 27\45\69m/min | |
| Belt saw blade size | 5800x41X1.3 | |
| Motor power | Main motor | 5.5kw |
| Oil pump motor | 0.75kw | |
| Cooling pump motor | 0.09kw | |
| Overall dimension | 2900x1700x2050mm | |
| Standard equipment | Optional equipment |
hydraulic workpiece clamping , 1 saw blade belt , material support stand , coolant system , work lamp , operation manual | automatic blade breakage control , fast drop protection devise , hydraulic blade tension , automatic chip removal device , various blade linear speed , blade protection covers , wheel cover opening protection , Ce standard electrical equipmet |
