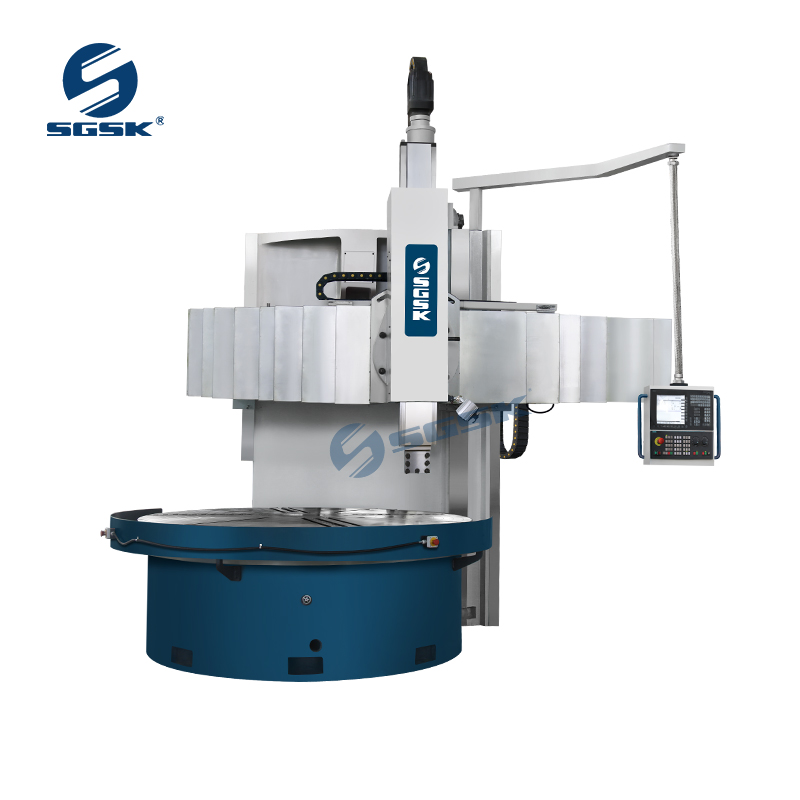

CK5112F CNC Vertical Lathe Machine Supplier

Product Model：

Inquire Now Next Product

Product Main Technical Parameters

	Units	CK5112F	CK5116F	CK5120F
Max. Swing diameter	mm	1400	1600	2000
Max. Turning diameter	mm	1250	1600	2000
Max.turning height	mm	1000	1000	1000
Worktable diameter	mm	1000	1400	1800
Worktable load	kg	4000	6000	8000
Spindle speed range(two-speed motor)	rpm	5-400	2.5-315	2.5-250
Spindle output torque	nm	8000	12500	20000
Turret type		方形滑枕排刀 Square slide way Gang type tool
Turret spec	mm	滑枕截面 200x200 Ram section200x200
Tool size	mm	□40	□40	□40
Turret travel X axis	mm	-700	-1050	-1250
Turret travel Z axis	mm	1000	1000	1000
Cross beam lifting stroke	mm	800	800	800
X-axis rapid traverse	m/min	12	12	12
Z-axis rapid traverse	m/min	12	12	12
Cutting feeding	m/min	0.1-5000	0.1-5000	0.1-5000
X/Z axis linear rail + hard rail		硬轨 Hard guide	硬轨Hard guide	硬轨Hard guide
Diameter of X/Z screw	mm	Φ63	Φ63	Φ63
X axis motor power/torque	kw/nm	3.5/22	4.7/30	4.7/30
Z axis motor power/torque	kw/nm	4.7/30	4.7/30	4.7/30
Main motor power/torque	kw-nm	22/30- 210	22/30- 210	22/30- 210
Overall size (LWH)	m	3.52.63.7	42.83.7	4.63.53.7
Machine weight	kg	12500	14500	18500
