Product Main Technical Parameters

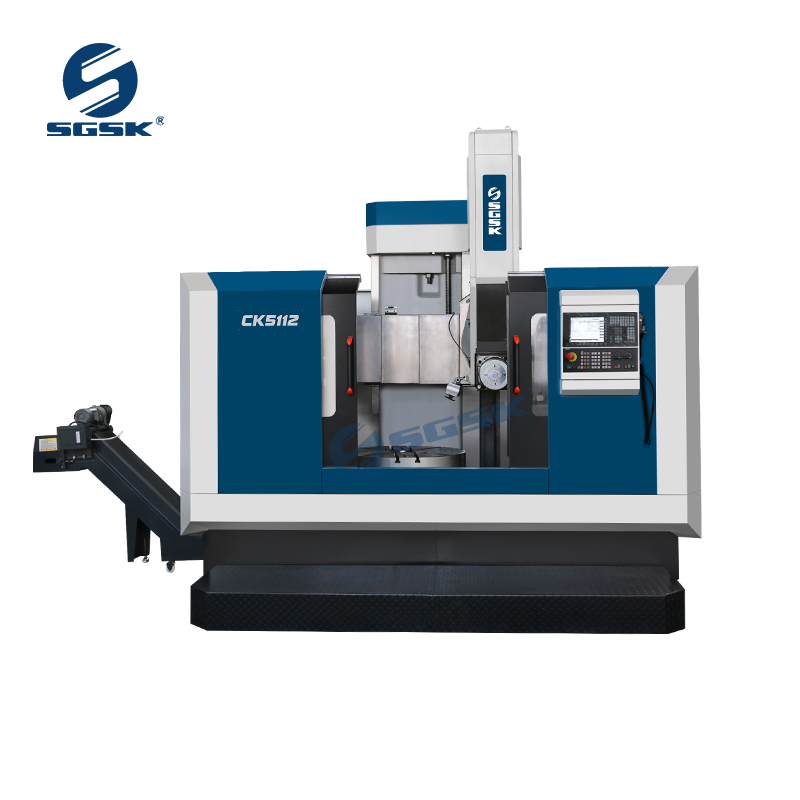

| Units | CK5112T | CK5116T | CK5120T | |
| Max. Swing diameter | mm | 1400 | 1600 | 2000 |
| Max. Turning diameter | mm | 1250 | 1600 | 2000 |
| Max.turning height | mm | 1000 | 1000 | 1000 |
| Worktable diameter | mm | 1000 | 1400 | 1800 |
| Worktable load | kg | 4000 | 6000 | 8000 |
| Spindle speed range (two-speed motor) | rpm | 5-400 | 2.5-315 | 2.5-250 |
| Spindle output torque | nm | 8000 | 12500 | 20000 |
| Turret type | 4 工位station | 4 工位station | 4 工位station | |
| Turret spec | mm | 320 | 320 | 320 |
| Tool size | mm | □40/φ80 | □40/φ80 | □40/φ80 |
| Turret travel X axis | mm | -700 | -1050 | -1250 |
| Turret travel Z axis | mm | 650 | 650 | 650 |
| Cross beam lifting stroke | mm | 700 | 700 | 700 |
| X-axis rapid traverse | m/min | 15 | 15 | 15 |
| Z-axis rapid traverse | m/min | 12 | 12 | 12 |
| Cutting feeding | m/min | 0.1-5000 | 0.1-5000 | 0.1-5000 |
| X/Z axis linear rail + hard rail | ||||
| Diameter of X/Z screw | mm | Φ63 | Φ63 | Φ63 |
| X axis motor power/torque | kw/nm | 3.5/22 | 4.7/30 | 4.7/30 |
| Z axis motor power/torque | kw/nm | 4.7/30 | 4.7/30 | 4.7/30 |
| Main motor power/torque | kw-nm | 22/30- 210 | 22/30- 210 | 30/37- 286 |
| Overall size (L*W*H) | m | 3.8*2.8*3.5 | 4.2*3*3.5 | 4.6*3.5*3.5 |
| Machine weight | kg | 13800 | 16500 | 18500 |
