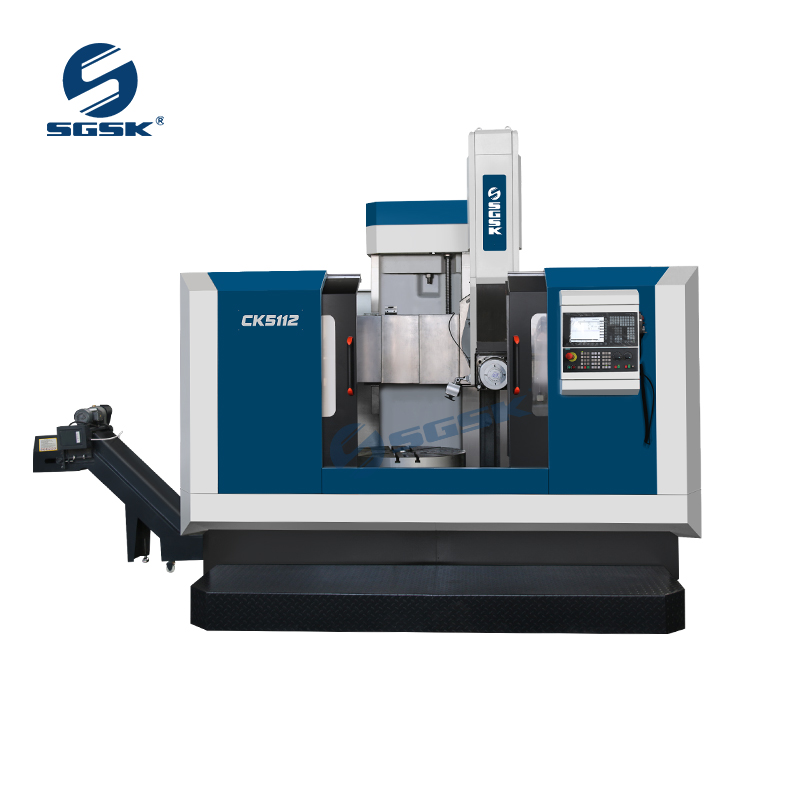

Product Main Technical Parameters
SPECIFICATIONS | Units | CK5112×H/3 | CK5116×H/5 | CK5120×H/8 | CK5123×H/8 | CK5126×H/8 |
Max.turning diameler | mm | 1250 | 1600 | 2000 | 2300 | 2600 |
Table diameter | mm | 1000 | 1400 | 1800 | 2000 | 2250 |
Max.height of workpiece | mm | 1000/1200 | 1000/1400 | 1250/1400 | 1350/1600 | 1350/1600 |
Max.weighi of workpiece | t | 3 | 5 | 8 | 8 | 8 |
Max.torque oftable | kn.m | 17 | 25 | 32 | 35 | 35 |
Spindle speed range(16steps) | r/min | 6.3-200 | 5-160 | 3.2-100 | 3.2-100 | 2-63 |
Max.cutting force of rail head | kn | 18 | 22 | 22 | 22 | 22 |
Range of tool feed | mm/min | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 |
Horizontal tool travel | mm | 700 | 915 | 1050 | 1180 | 1380 |
Vertical tool travel | mm | 650 | 800 | 800 | 1000 | 1000 |
Tool head rapid traverse | mm/min | 2500 | 3750 | 3750 | 3750 | 3750 |
Elevating speed of cross beam | mm/min | 440 | 440 | 440 | 440 | 440 |
Tool size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 30×40 |
Main motor power | kw | 22 | 30 | 30 | 30 | 37 |
Overall dimension(L*W*H) | mm | 2360*2300*3580 3860*2450*3580 | 2800*270*3870 5000*3200*3870 | 3200*2800*4000 5400*3400*4000 | 3600*2850*4200 5600*3350*4000 | 3900*2950*4200 5900*3500*4200 |
Machine weight(about) | t | 9/10.5 | 12/13.5 | 17/18.5 | 19/21 | 21/23 |
