Product Main Technical Parameters

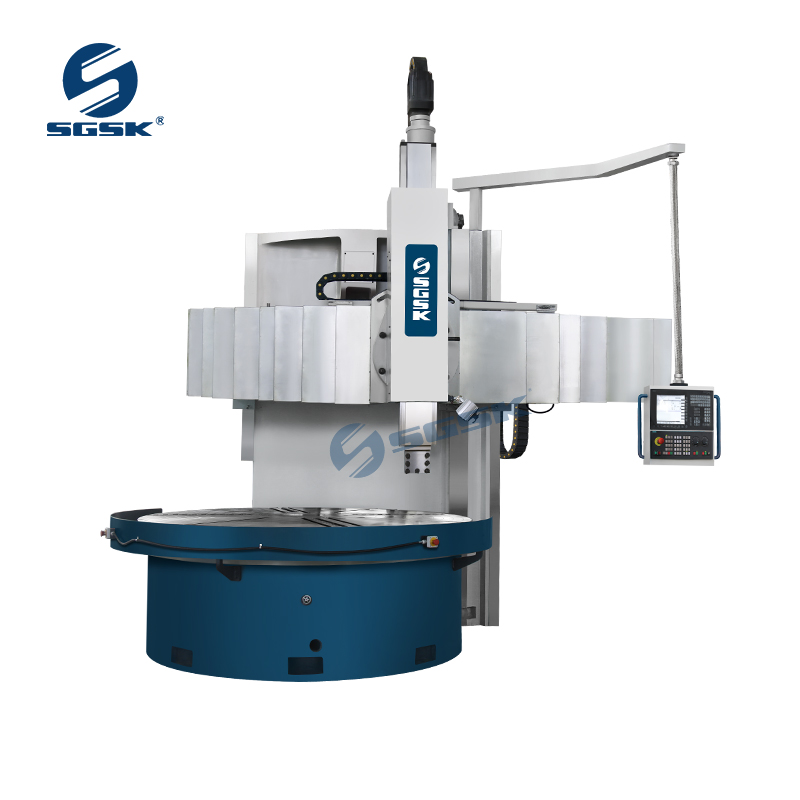

CNC Vertical Lathe Machine Features:
The machine consists of a bed, a base, a work platform, a beam, a beam lifting mechanism, a vertical tool holder, a numerical control system, a ball screw, an electrical cabinet, a button station, and a fully enclosed protective cover.
(1) Workbench mechanism
The workbench mechanism is composed of a workbench, a workbench base, and a spindle device. The workbench has functions of starting, stopping, jogging and shifting. Workbench to withstand vertical loads.
(2) In order to ensure that the coolant does not enter the workbench, all parts of the workbench and the base are properly waterproofed.
(3) Table speed
The table speed range is 0-220r/min. The gearbox gear adopts 40Cr grinding gear (6-level precision) produced by Shenyang Machine Tool Co., Ltd. Gear Co., Ltd., and the spiral bevel gear is 20CrMnTi carburizing and quenching process, which has good stability and low noise.
(4) Bed
The bed is made of HT250 bed and the base of the workbench. The bed is mature and stable and has sufficient steel.
(5) Beam lifting
The beam lifting adopts a worm gear box and a T-type screw lifting mechanism. The beam has a hydraulic locking mechanism, which is clamped by a hydraulic lever wedge block mechanism with self-locking function, and interlocks with the beam movement to firmly lock the beam to the column. on. The beam is lifted up and down with an electrical soft limit, which is safe and reliable.
(6) Beam
The beam is made of HT250. The horizontal horizontal ball screw (X-axis) of the beam adopts Taiwan Yintai or the same brand. The screw support uses high-precision bearings for high-quality screw, which has the characteristics of high precision, rigidity and durability.
(7) Beam slide
The beam slide is made of HT250. The beam slide is mounted on the beam. The sliding friction surface in contact with the beam is treated with PTFE plastic soft belt to reduce the friction coefficient and greatly extend the service life.
(8) Slewing slide
The rotary slide is made of HT250 material, and the sliding friction surface that is in contact with the vertical tool holder is treated with a plastic tape to reduce the friction coefficient and greatly extend the service life.
(9) ram
The ram is a T ram structure, and the ram (Z-axis) vertical ball screw adopts Taiwan Intime or the same brand. The screw support adopts high-precision bearing for high-quality screw, which has the characteristics of high precision, rigidity and durability. The X-axis servo motor is energized by the planetary reducer and connected to the ball screw through the coupling to form a Z-axis transmission mechanism.
(10) Hydraulic system
The main control components of the hydraulic system are made by well-known domestic manufacturers and have reliable performance. The main functions of the system are: 1 providing variable speed power for the hydraulic cylinder of the main transmission gearbox; 2 for supplying oil to the table rail device; 3 for ram balance cylinder; 4 for beam clamping cylinder system; 5 machine related Lubricate the oil supply.
(11) Machine tool lubrication system
The sliding parts of the machine are automatically timed and automatically supplied by the automatic lubrication pump.
(12) Electrical system
The button station cantilever is installed on the machine tool, and the button station and the cantilever can be rotated at any angle, which is beautiful and convenient to operate. The CNC system is Siemens 808D CNC system, and the electrical components are Schneider products that are durable, safe and reliable. Manual X and Z axis feeds are realized by manipulating the handheld unit. A three-color light is placed on the button station to indicate the machine running status.
CNC Vertical Lathe Machine Technical Specifications:
Specification | UNIT | CK518 |
Control system | Siemens 808D | |
Max. turning Diameter | mm | 850 |
Table diameter | mm | 800 |
Max. height of workpiece | mm | 800 |
Max. weight of workpiece | T | 1.2 |
Range of table speeds | r/min | 0-220 Stepless |
Range of feed rates | mm/min | 0.1-1000 stepless |
Worktable Torque | N.m | 25000 |
Vertical cutter maximum cutting force | N | 22000 |
Ram horizontal stroke | mm | 580 |
Ram Vertical stroke | mm | 650 |
Beam travel | mm | 550 |
Tool holder fast moving speed | mm/min | 3000 |
Beam lifting speed | mm/min | 440 |
Tool Section size | mm | 30x40 |
Position accuracy | mm | 0.03 |
Reposition accuracy | mm | 0.015 |
Power of main motor | KW | 18.5 |
Overall dimensions | Mm | 2080*2621*3015 |
Weight of machine | ton | 7 |
