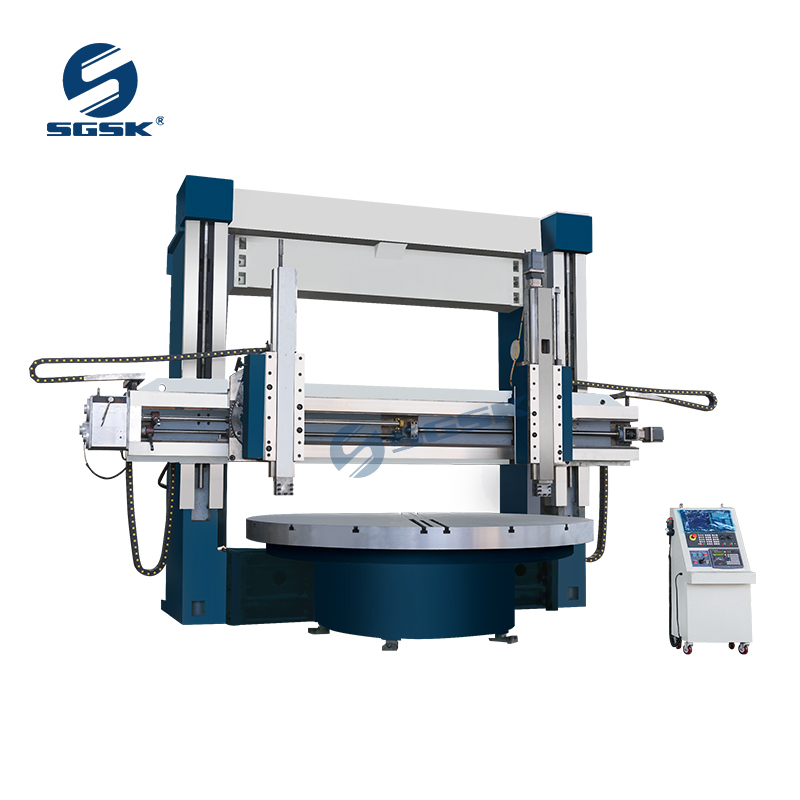

CK52 Series CNC Double Column Vertical Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Vertical Lathe Machine Main Performance Characteristics：

1, This series machine is suitable for internal and external turning ,internal and external tapering, facing, slotting, thread, surface turning(CNC the spindle drive adopts servo motors,through2steps.

2, Spindle speed changing unit, to make work table realize stepless speed regulation.

3, Work table spindle adopts short spindle and constant flow hydrostatic guide way, keep high centering accuracy, high rotating

accuracy, big loading capacity and small deformation.

4, Feeding system adopts AC servo motor drive, through gearbox variable speed back, Is connected with a lead screw，

5, The two axes adopt ball screw, both ends fixed installation, and mutually the pre tension of the screw , improves the screw rigidity.

6, Machine adopts Push Button Station, feed system configure handheld unit, Easy to operate.

7, The main movement and feed movement configuration, with the ordinary type and CNC machine be current .

CNC Vertical Lathe Machine Main Technical Parameters:

Specifications	Units	Model	Model	Model	Model	Model	Model	Model
Specifications	Units	CK5225Dx16	CK5240Dx20	CK5240Dx25	CK5250Dx25	CK5250Dx25/40	CK5263Dx25	CK5263Dx25
Max turning diameter	mm	2500	4000	4000	5000	5000	6300	6300
Max height of work piece	mm	1600	2000	2500	2500	2500	2500	2500
Max weight of work piece	t	16	20	40	32	40	32	40
Work table diameter	mm	2250	3600	3600	4500	4500	4500	4500
Work table speed	r/min	0.63-63	0.5-50	0.4-40	0.4-40	0.4-40	0.4-40	0.4-40
Max torque of work table	KN. m	63	63	100	100	125	100	125
Rapid speed of rail head	mm/min	4000	4000	4000	4000	4000	4000	4000
Max cutting force of right rail head	KN	35	35	40	40	40	40	40
Max cutting force of left rail head	KN	30	30	30	30	30	30	30
Range of right rail head feed speed	mm/min	1-50	1-50	1-50	1-50	1-50	1-50	1-50
Range of left rail head feed speed	mm/min	0.1-1000	0.1-1000	0.1-1000	0.1-1000	0.1-1000	0.1-1000	0.1-1000
Travel of ram	mm	1000	1000	1250	1250	1250	1250	1250
Section of ram	mm	220x220	220x220	240x240	240x240	240x240	240x240	240x240
Swivel of right rail head	°	±30°	±30°	±30°	±30°	±30°	±30°	±30°
Section of tool	mm	50x40	50x40	50x50	50x50	50x50	50x50	50x50
Main power	KW	55	55	55	75	75	75	75
Overall dimension	mm	5690x4210x5700	7780x5140x5620	12480x5430x7640	14340x5850x7640	14340x5850x7640	16640x6930x7640	16640x6930x7640
Weight	t	38	55	80	90	95	95	105
