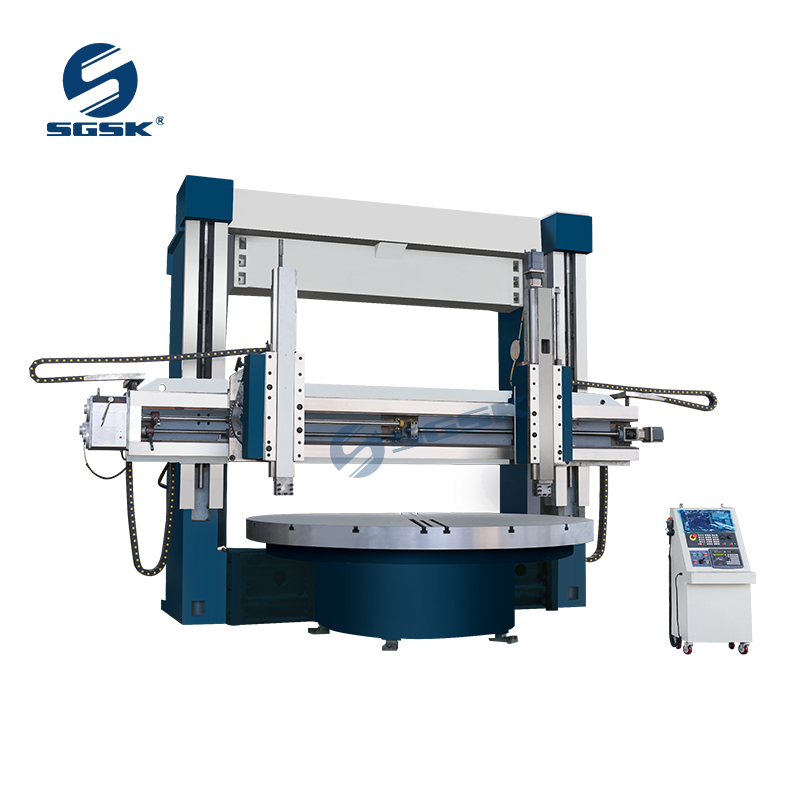

CK5280xH/100 CNC Double Column Vertical Lathe Machine Manufacturer China

Product Model：

Inquire Now Next Product

Product Main Technical Parameters

	Units	CK5263×H/65	CK5263×H/80	CK5280×H/100	CK5280×H/150	CK52100×H/200	CK52100×H/250
Max.turning diameter	mm	6300	6300	8000	8000	10000	10000
Table diameter	mm	5700	5700	7100	7100	8000	8000
Max.height of workpiece	mm	3150/3500	3150/4000	4000/4500	4000/4500	4000/4500	4000/4500
Max.weight of workpiece	t	65	80	100	150	200	250
Max.torque of table	kn.m	250	250	460	460	540	640
Spindle speed range	r/min	0.42-42	0.42-42	0.16-16	0.16-16	0.16-16	0.16-16
Max.cutting force of rail head	kn	63	63	80	80	100	120
Range of tool feed	mm/min	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500
Horizontal tool travel	mm	3400	3400	4400	4400	5400	5400
Vertical tool travel	mm	1600/1800	1600/2000	2000/2250	2000/2250	2000/2250	2000/2250
Tool head rapid traverse	mm/min	3500	3500	4000	4000	4000	4000
Tool size	mm	50*50	50*50	60*60	60*60	80*80	80*80
Main motor power	kw	90	90	110	132	132	132
Overall dimension(LWH)Machine weight(about)	cm	1150790853/933	1250750940/1070	17309001260/1310	17309001260/1310	196010101260/1310	196010101260/1310
	t	104/108	130/135	190/195	245/250	315/325	380/390
