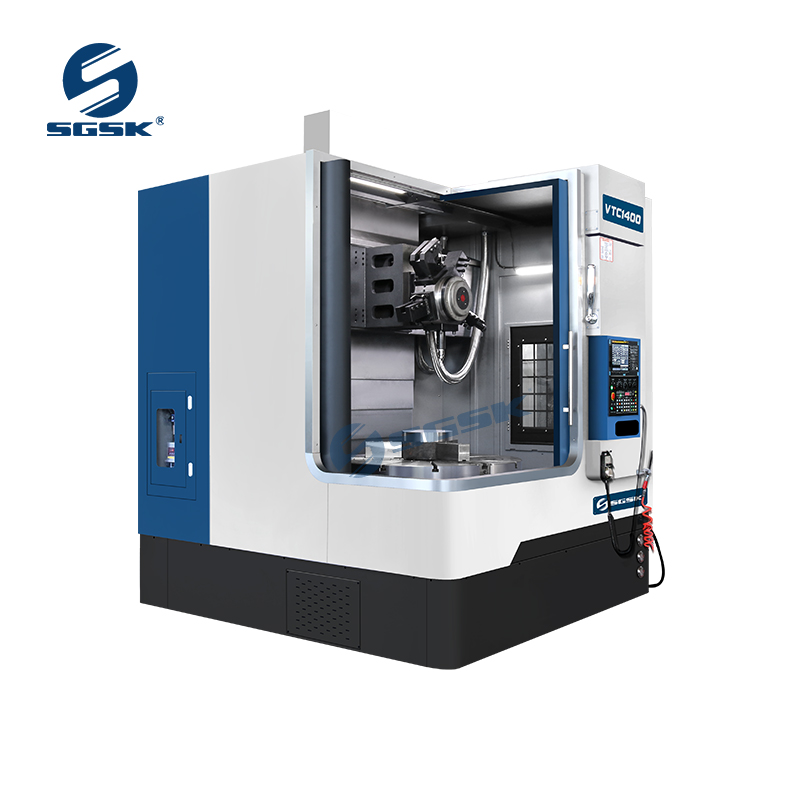

Product Main Technical Parameters
| VTC1250 | VTC1400 | VTC1600 | |
| Max. Swing diameter | 1250 | 1400 | 1600 |
| Max. Turning diameter | 1050 | 1250 | 1400 |
| Spindle Model | A2-11 | A2-11 | A2-15 |
| Diameter of spindle bearing | 180 | 180 | 200 |
| Spindle speed range | 20-500 双速齿轮箱(20-500 Double speed gearbox) | 20-400 双速齿轮箱 (20-400 Double speed gearbox) | 20-350 双速齿轮箱 (20-350 Double speed gearbox) |
| Spindle output torque | 2100 | 2100 | 3000 |
| Chuck diameter | φ1000手动四爪 ( φ1000 4-jaw manual ) | φ1250手动四爪 ( φ1250 4-jaw manual ) | φ1400手动四爪 (φ1400 4-jaw manual) |
| Turret type | 立式 4 工位 Ver.4 position | 立式 4 工位 Ver.4 position | 立式 4 工位 Ver.4 position |
| Turret spec | 125 | 125 | 125 |
| Tool size | □32/φ50 | □32/φ50 | □32/φ50 |
| Turret travel X axis | -700 | -800 | -900 |
| Turret travel Z axis | 800 | 800 | 800 |
| Distance from Bottom of turret to up of chuck | 150-950 | 150-950 | 150-950 |
| X/Z linear rails | 65/55 滚柱Roller | 65/55 滚柱Roller | 65 滚柱Roller |
| Diameter of X/Z screw | φ50 | φ50 | φ63 |
| X-axis rapid traverse | 15 | 15 | 15 |
| Z-axis rapid traverse | 12 | 12 | 12 |
| Cutting feeding | 0.1-5000 | 0.1-5000 | 0.1-5000 |
| X axis motor power/torque | 3.5/22 | 3.5/22 | 4.7/30 |
| Z axis motor power/torque | 3.5/22 | 4.7/30 | 4.7/30 |
| Main motor power/torque | 22/30- 210 | 22/30- 210 | 30/37- 286 |
| Overall size (L*W*H) | 2.7*2.85*3.25 | 2.8*2.95*3.25 | 3.0*3.0*3.25 |
| Machine weight | 12800 | 13800 | 15500 |
