Product Main Technical Parameters
Drilling and Milling Machine Main Performance Characteristics：
1.Variable speed
2.Milling, drilling, boring, reaming and tapping
3.Head swivels 90 vertical
4.Micro feed precision
5.Adjustable gibs on table precision.
6.Strong rigidity, powerful cutting and precisely positioning.
Drilling and Milling Machine Main Technical Specifications:

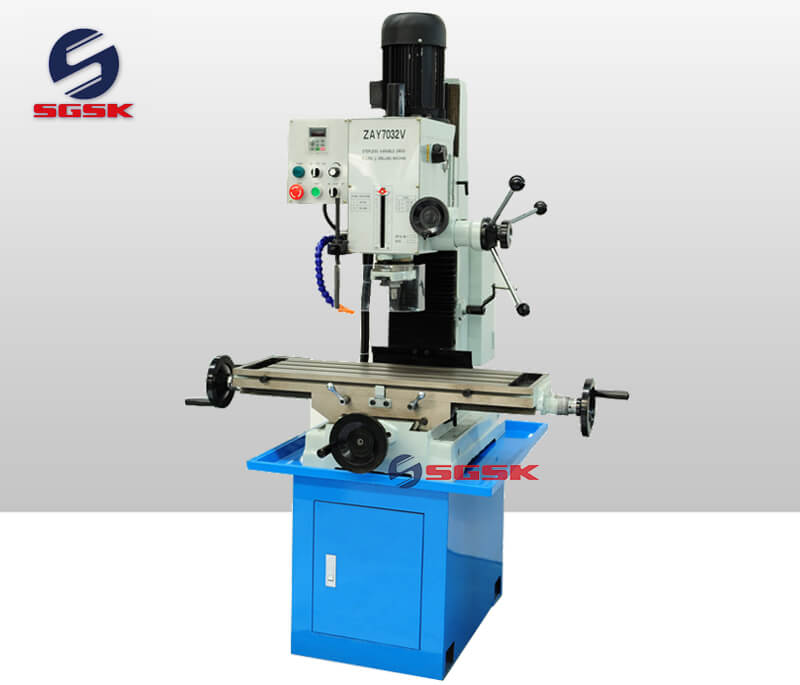

| ITEM | ZAY7032V | ZAY7040V | ZAY7045V |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 400mm | 400mm | 400mm |
| Min.distance from spindle axis to column | 285mm | 285mm | 285mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Range of spindle speed(2 steps) | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor power(DC) | 1.1KW | 1.1KW | 1.5KW |
| Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
| Net weight/Gross weight | 300kg/350kg | 310kg/360kg | 310kg/360kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
| Standard accessories | Optional accessories |
Allen wrench, Drift,Spanner, Drill chuck rod, Screw-driver, Draw bar and gasket, | Stand, Oil basin, Power feed attachment, Machine vice, Drill chuck, Milling cutter holder, Reducing sleeve, Mill chuck, Boring rod, Tapping electrical system , Coolant system |
