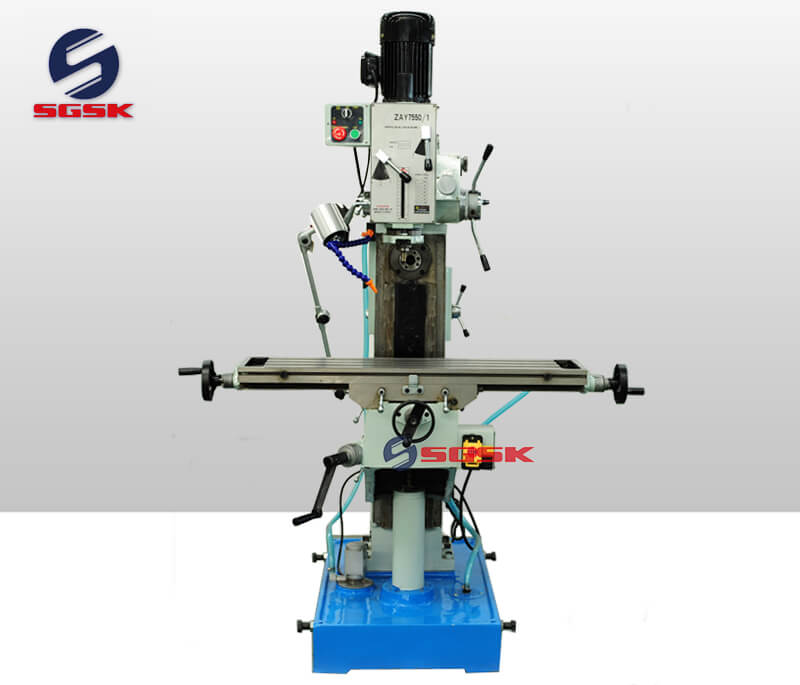

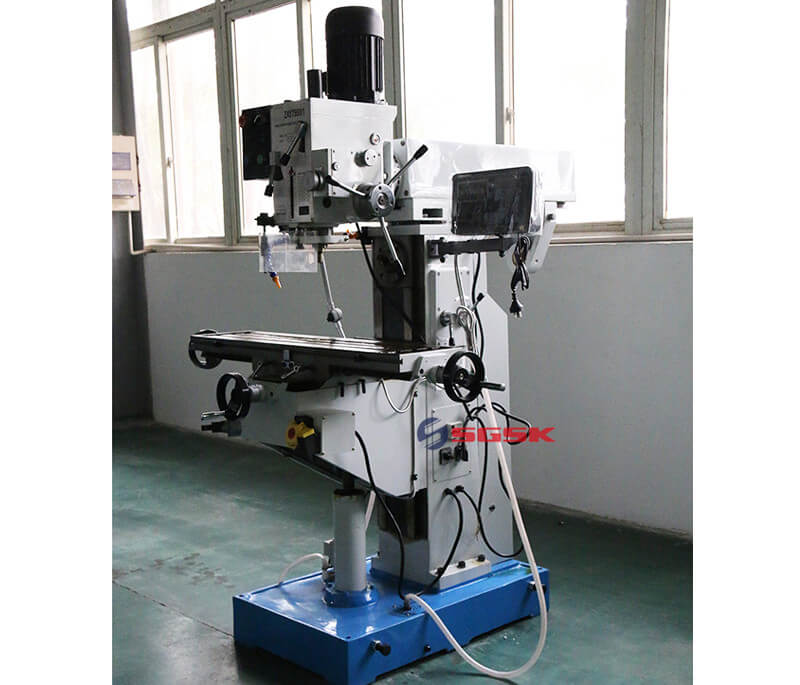

ZAY7532 ZAY7540 ZAY7545 ZAY7550 Drilling and Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics：

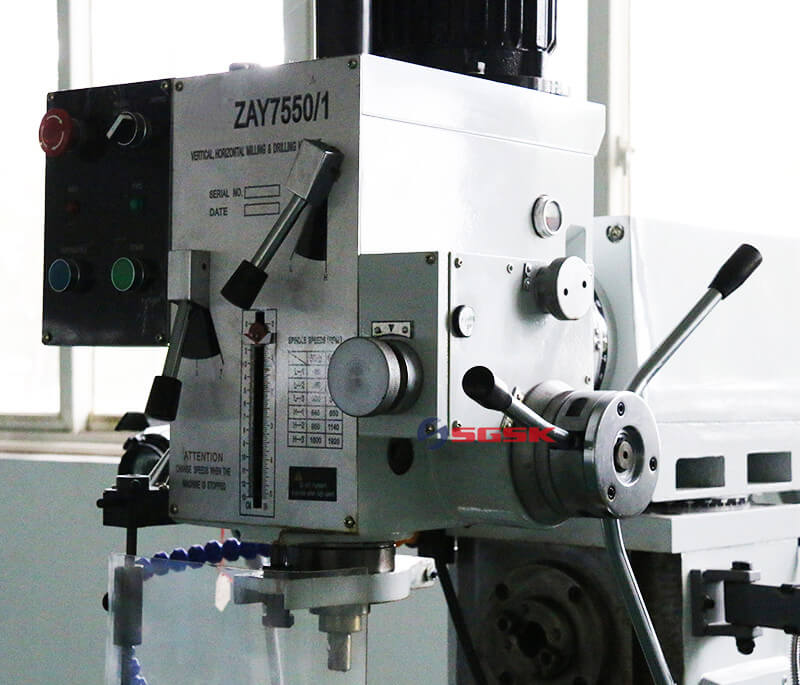

1.Vertical milling head can be moved forward or backward

2.Vertical milling head can swivel 90 vertically and 360 horizontally.
3.Adjustable atops on table
4.Manual quill feed
5.High tensile casting iron elevative table
6.Double motor with powerful force

Drilling and Milling Machine Main Technical Specifications:

Model	ZAY7532	ZAY7540	ZAY7545	ZAY7550
Max. drilling capacity	32mm	40mm	45mm	50mm
Max. milling capacity (end / face)	25/100mm	32/100mm	32/100mm	32/100mm
Swivel angle of headstock(perpendicular)	± 90°	± 90°	± 90°	± 90°
spindle taper(end/face)	M. T. 3 M. T. 4	M. T. 4	M. T. 4	M. T. 4
Distance from spindle nose toworktable surface	80-480mm	80-480mm	80-480mm	80-480mm
spindle travel	130mm	130mm	130mm	130mm
Beam travel	500mm	500mm	500mm	500mm
step of spindle speed(end/face)	6\12	6\12	6\12	6\12
range of spindle speed(end/face) 50Hz	80-1250/38-1280 (r/min)	80-1250/38-1280 (r/min)	80-1250/38-1280 (r/min)	80-1250/38-1280 (r/min)
60Hz (4 Poles)	95-1500/45-1540 (r/min)	95-1500/45-1540 (r/min)	95-1500/45-1540 (r/min)	95-1500/45-1540 (r/min)
Worktable size	800× 240mm	800× 240mm	800× 240mm	1000× 240mm
Forward and afterwardtravel of worktable	300mm	300mm	300mm	300mm
Left and right travel of worktable	585mm	585mm	585mm	785mm
Vertical travel of worktable	400mm	400mm	400mm	400mm
Min. distance from spindleaxis to column	290mm	290mm	290mm	290mm
Power(end/face)	0.75KW(1HP)/1.5KW	1.1KW(1.5HP)/1.5KW	1.5KW(2HP)/1.5KW	1.5KW(2HP)/1.5KW
Voltage/Frequency	As customer' s requirement	As customer' srequirement	As customer' srequirement	As customer' srequirement
Cooling pump power	0.04KW	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	910kg/1010kg	913kg/1013kg	915kg/1015kg	930kg/1030kg
Packing size	1020× 1350× 1850mm	1020× 1350× 1850mm	1020× 1350× 1850mm	1220× 1350×1850mm
Loading amount	8pcs/20 ' container	8pcs/20 ' container	8pcs/20 ' container	4pcs/20 'container
