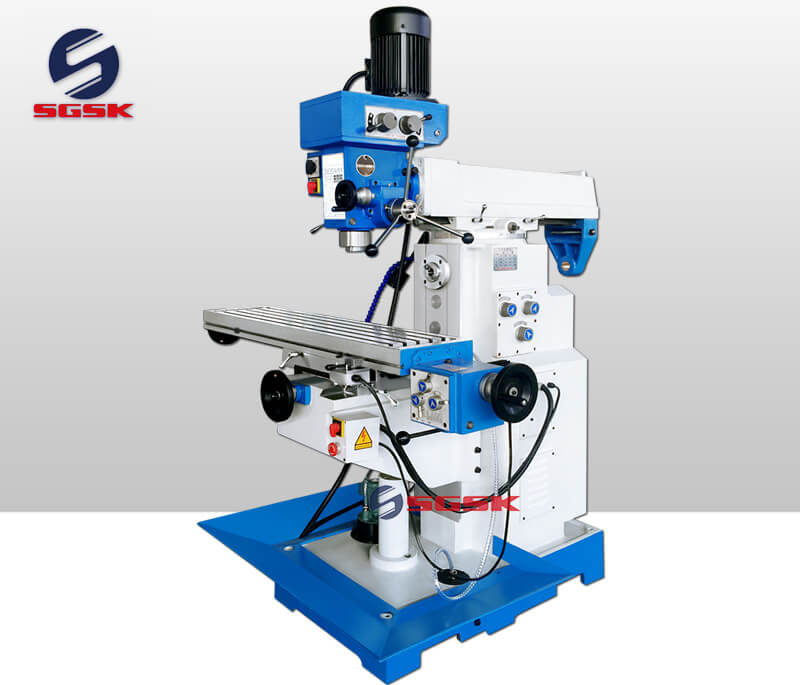

ZX6350T Drilling and Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics：

1.Gear transmission for vertical/horizontal milling head

2.X /Y/Z axis auto feed

3.Headstock swivel +/-45°

4.Guide way with sparking quenching

Drilling and Milling Machine Main Technical Parameters:

Specifications	Units	ZX6350T
Max. drilling dia.	mm	50
Max. end milling width	mm	100
Max. vertical milling dia.	mm	32
Distance from spindle nose to table surface	mm	100-530
Spindle taper	mm	MT4
Spindle speed range	rpm	253-4000(V), 32-1320(H)
Spindle travel	mm	120
Table size	mm	1120X280
Table travel	mm	630x240x430

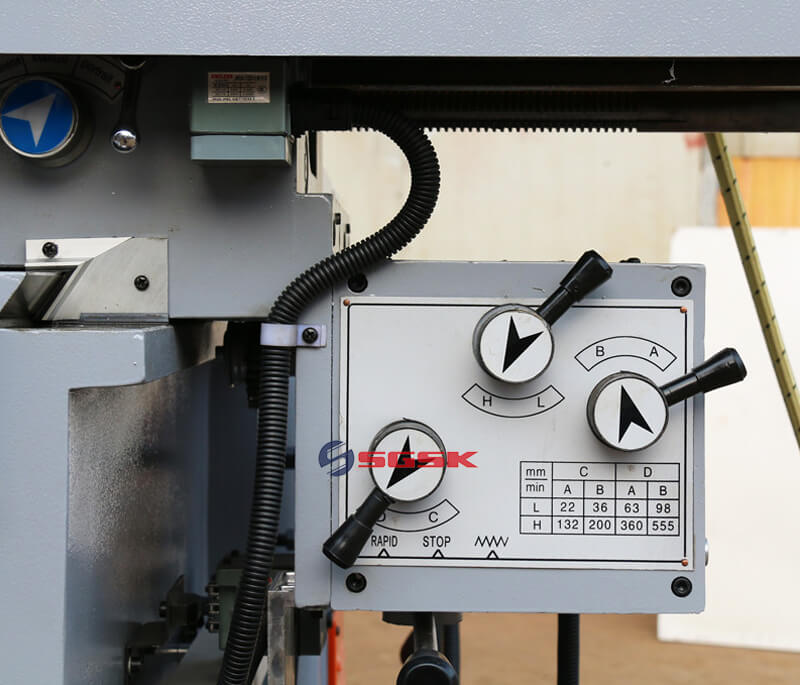

Table Longitudinal feed range	mm/min	15.1-266.5(6 steps)
Cross feed range		15.1-266.5(6 steps)
Vertical milling motor	kw	1.5
Main motor power	kw	2.0/2.4
Overall dimensions	mm	1400x1300x2100
Machine weight	kg	1300/1400
