Product Main Technical Parameters
Drilling and Milling Machine Main Performance Characteristics：

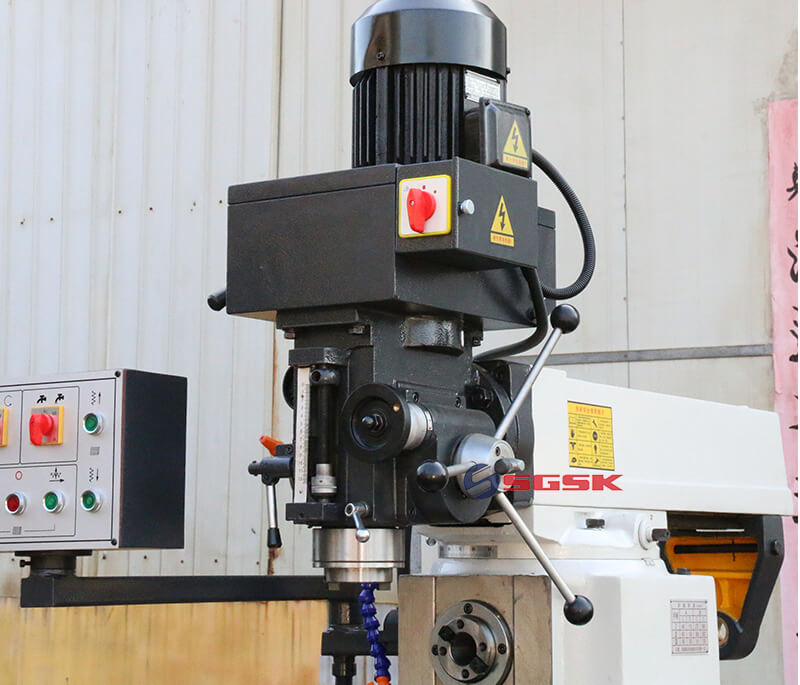

1. Vertical and horizontal milling head

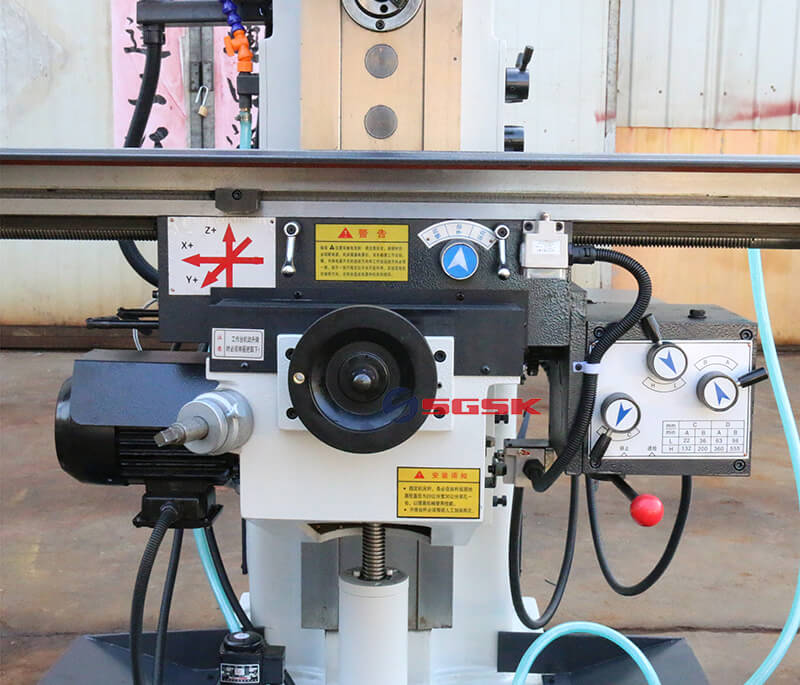

2.X /Y/Z axis auto feed

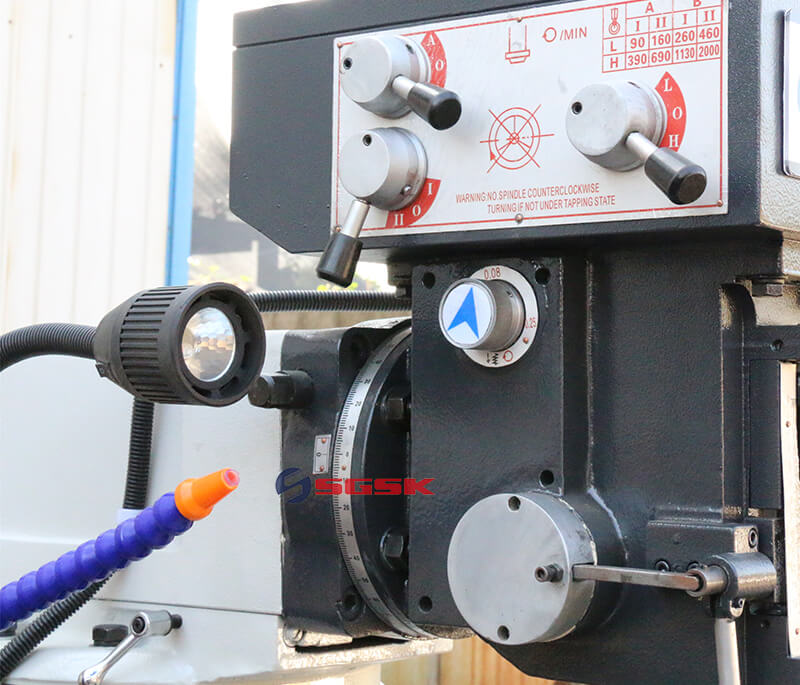

3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Drilling and Milling Machine Main Technical Parameters:
| Specifications | Units | ZX6350ZA |
| Max. drilling dia. | mm | 50 |
| Max. end milling width | mm | 100 |
| Max. vertical milling dia. | mm | 25 |
| Max.boring dia. | mm | 120 |
| Max. tapping dia. | mm | M16 |
| Spindle taper | 7:24 ISO40 | |
| Distance from spindle nose to table surface | mm | 80-460(Vertical) |
| Spindle speed range | rpm | 90-2000(V) ,40-1300(H) |
| Spindle travel | mm | 120(V) |
| Table size | mm | 1370x320 |
| Table travel | mm | 750x300x430 |
| Main motor power | KW | 1.5(V),2.2(H) |
| Overall dimensions | mm | 1800x1480x2250 |
| Machine weight | Kg | 1450/1560 |
