Product Model：

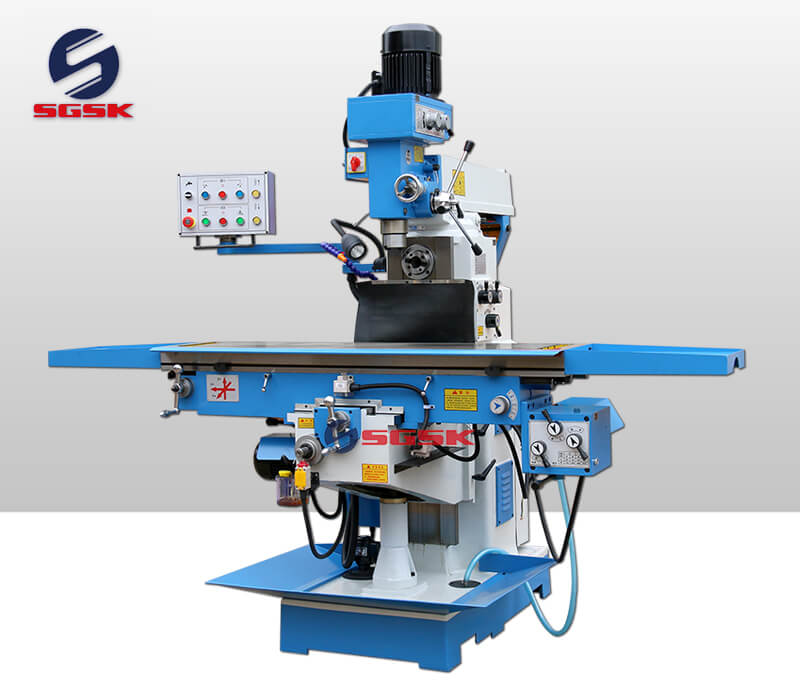

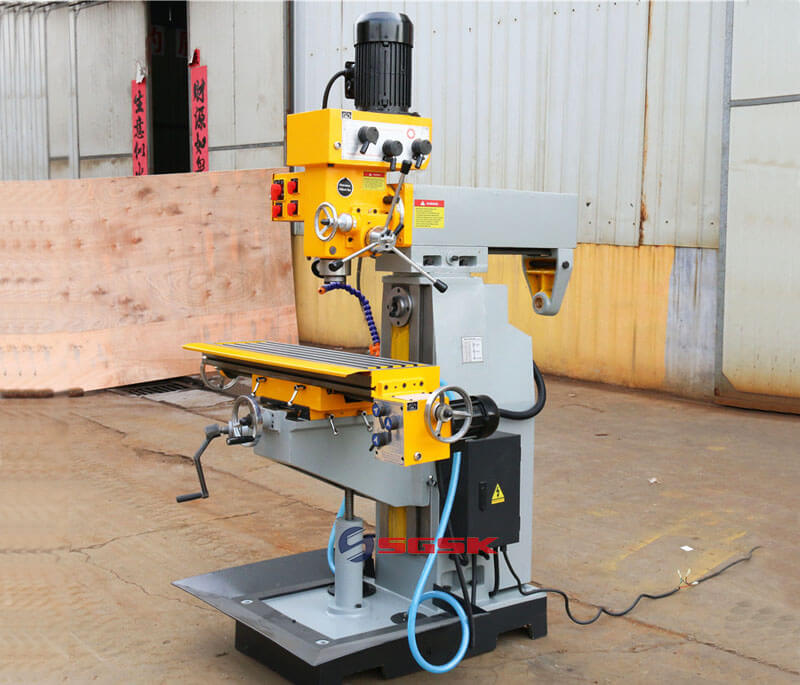

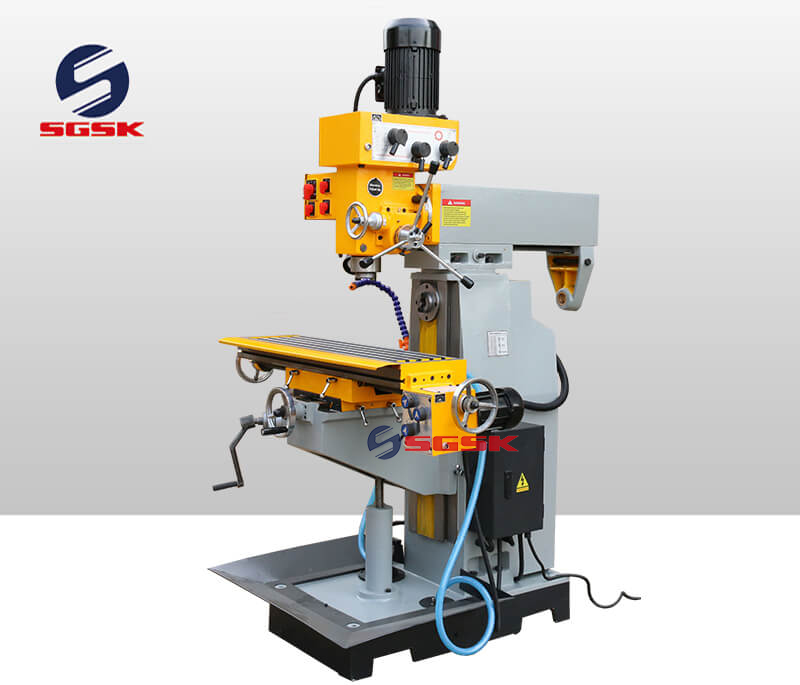

ZX7550CW Drilling and Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics：

Gear drive for vertical milling / horizontal milling,

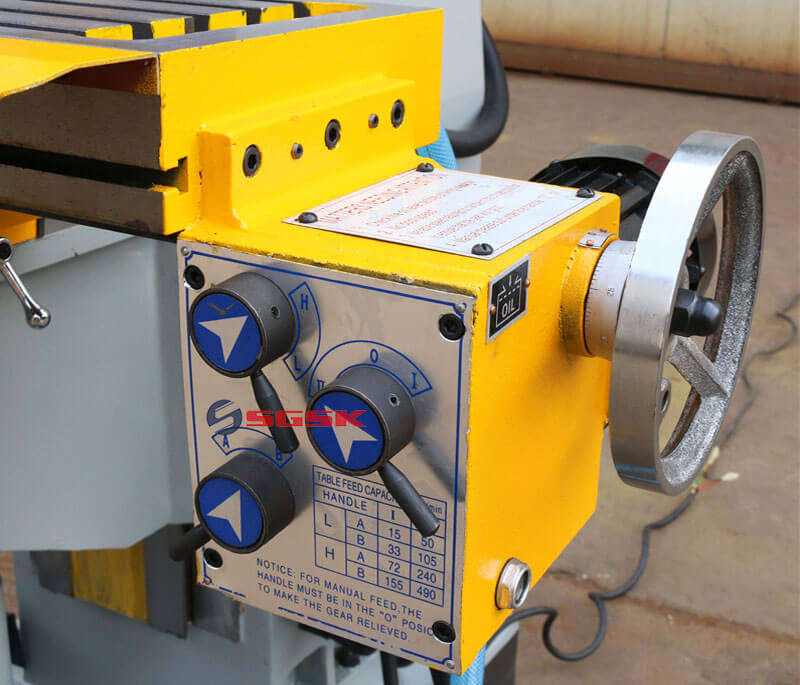

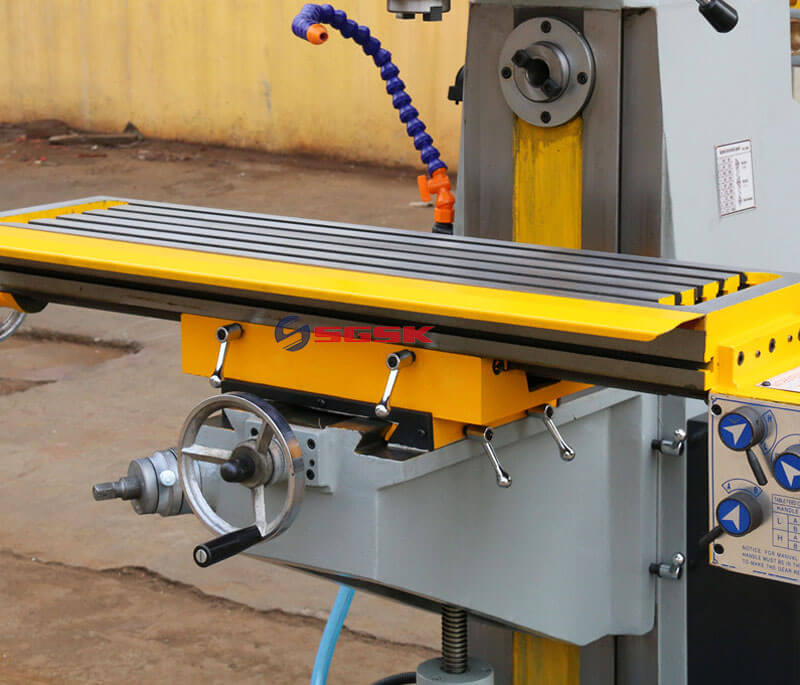

Workbench X axis automatic feed , Y/Z manual feed (ZX7550W X/Y/Z manual feed )

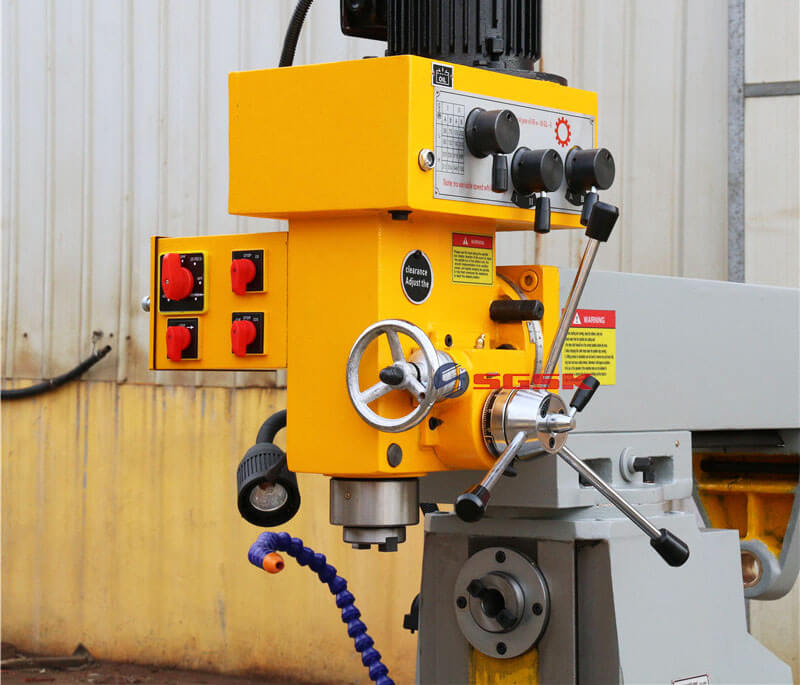

Milling head can be rotated 45 degrees,

Spark quenching machine.

Drilling and Milling Machine Application：

Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.

Drilling and Milling Machine Main Technical Specifications:

Specifications	Units	ZX7550CW
Max. drilling dia.	mm	50
Max. end milling width	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance from spindle nose to table surface	mm	90-490
Spindle taper		MT4
Spindle speed range	r.p.m	115-1750(V) 80-1300(H)
Spindle travel	mm	120
Table size	mm	1000×240
Table travel	mm	600×230
Table feed speed	mm/min	X:16-480
Overall dimensions	mm	1280×1285×2080
Spindle motor power	kw	1.5/2.2(V) 2.2(H)
Machine weight	kg	900/1000
