Product Main Technical Parameters

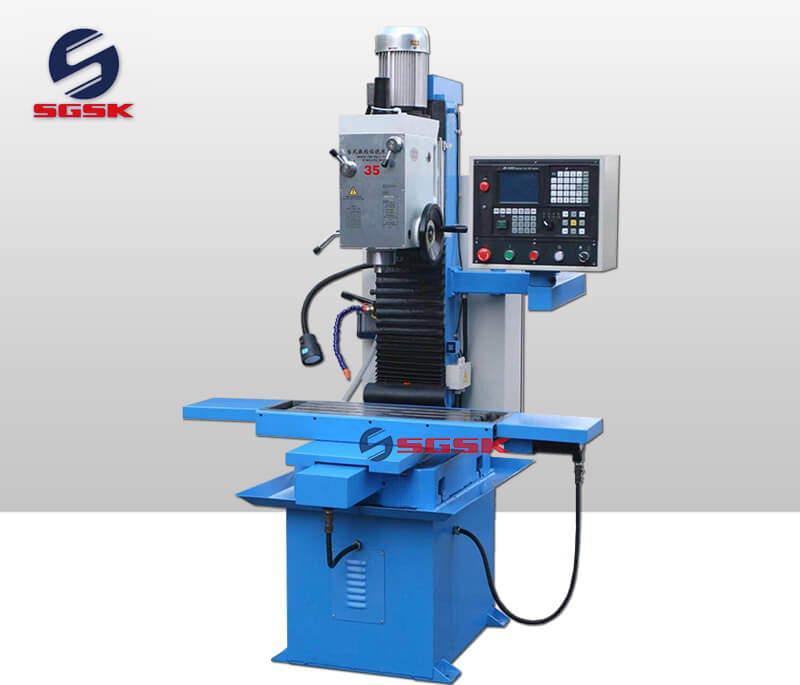

| MODEL | ZXK7035 |
| CAPACITY | |
| Drilling capacity(max) | Ø35mm |
| Milling capacity end mill cutter(max) | Ø20mm |
| Milling capacity cutter head(max) | Ø60mm |
| ACCURACY | |
| Repeating accuracy | 0.03mm |
| Positioning accuracy | 0.05mm |
| SPINDLE | |
| Spindle taper | MT4 |
| Spindle speed | 60-1160rpm |
| Spindle speed steps | 6 |
| Distance spindle-column | 290mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 480mm |
| Rate of feed/Torque motor Z-axis | 7500mm/min |
| CROSS TABLE | |
| Table (L×W) | 800×240mm |
| Table load | 80kg |
| Z-axis travel of table | / |
| Y-axis travel | 220mm |
| Rate of feed/Torque motor Y-axis | 7500mm/min |
| X-axis travel | 450mm |
| Rate of feed/Torque motor X-axis | 7500mm/min |
| T-slot | 14mm/50mm/3 |
| Distance spindle-cross table(max.) | 560mm |
| ELECTRIC SUPPLY | |
| Motor | 2.2kW |
| Motor coolant pump | 40W |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 1228×1115×2150mm |
| Packing size (L×W×H) | 1390×1270×2060mm |
| Shelf and cover packing (L×W×H) | / |
| Net weight/Gross weight | 500kg |
