Product Main Technical Parameters

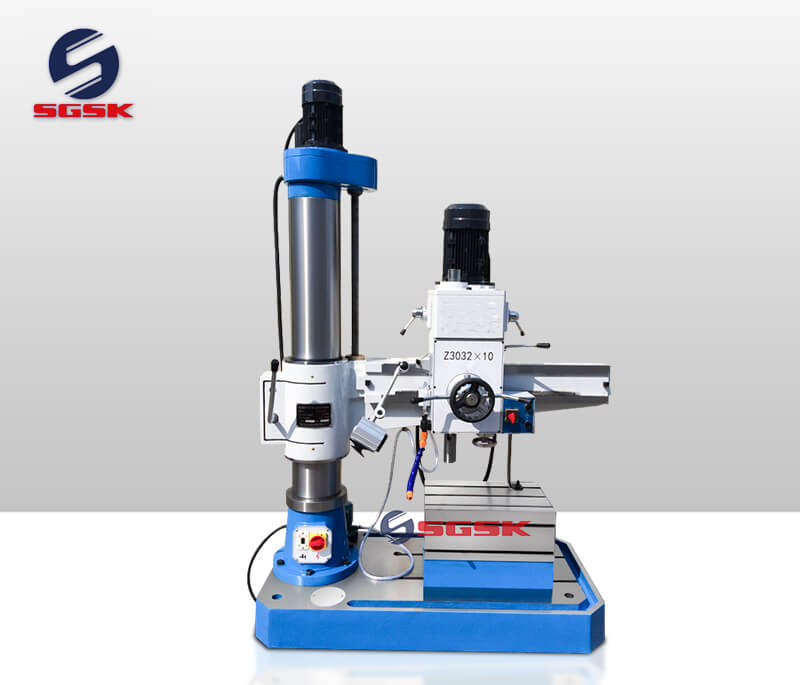

Radial Drilling Machine Description:
1. Appearance beautiful appearance, the overall layout of symmetry and coordination.
2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.
5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions, such as, widely used in large, medium and small enterprises, villages and towns and individual industrial machining.
Radial Drilling Machine Main Technical Parameters:
Specifications | Units | Z3032×10 |
Max. drilling diameter | mm | Φ32 |
Column diameter | mm | 200 |
Distance of headstock horizontal movement | mm | 710 |
Distance spindle nose and working surface of base | mm | 330-1060 |
Rocker arm lift distance | mm | 730 |
Spindle travel | mm | 120 |
Spindle taper | MT4 | |
Spindle speeds range | r/min | 108 162 262 398 665 1000(6 steps) |
Spindle feeding range | mm/r | 0.10 0.16 0.25(3 steps) |
Max. spindle allows feed resistance | N | 5300 |
Rocker arm lifting speeds | m/min | 1.21 |
Rocker rotary angle | ° | + 90° |
Main motor power | kw | 1.5/2.2 |
Lifting motor power | kw | 0.55 |
Cooling pump motor power | kw | 0.04 |
Net weight | kg | 1080 |
Overall dimensions(L×W×H) | mm | 1400×660×2060 |
