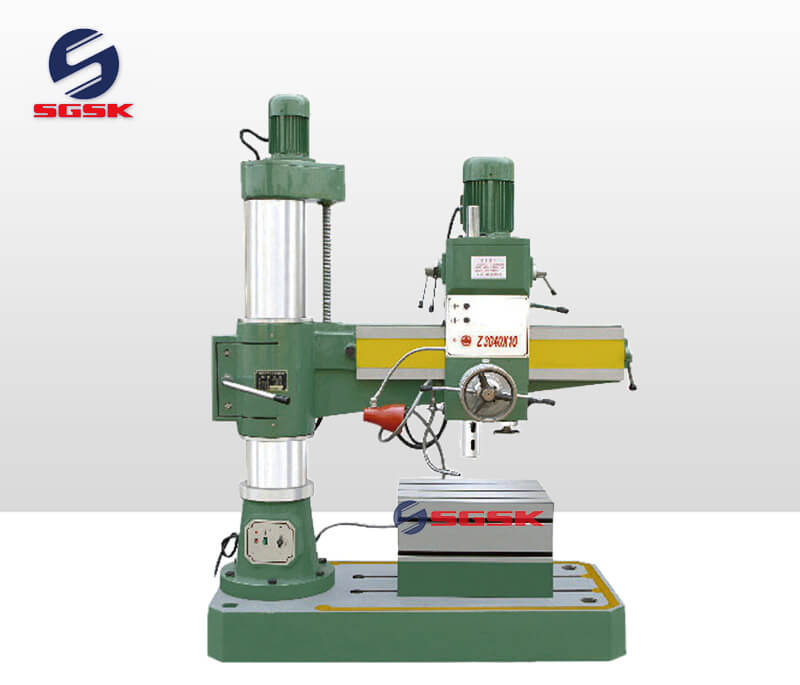

Z3040x10 Radial Drilling Machine

Inquire Now Next Product

Product Main Technical Parameters

Radial Drilling Machine Description:

Z3040*10 radial drilling machine is with extensive use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts,

drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.

Radial Drilling Machine Main Technical Specifications:

Specifications	Z3040×10
Max.drilling diameter(mm)	40
Distance between spindle axis and column(mm)	1000~360
Distance spindle nose and working surface of base plate(mm)	1200~260
Spindle travel(mm)	200
Spindle speed stage	6(75-1220)
Spindle feed rate 3 N	0.10、0.16、0.22
Overall dimension(mm)	1500×705×2300
Spindle motor power(KW)	2.2
N/W(Kg)	1500
