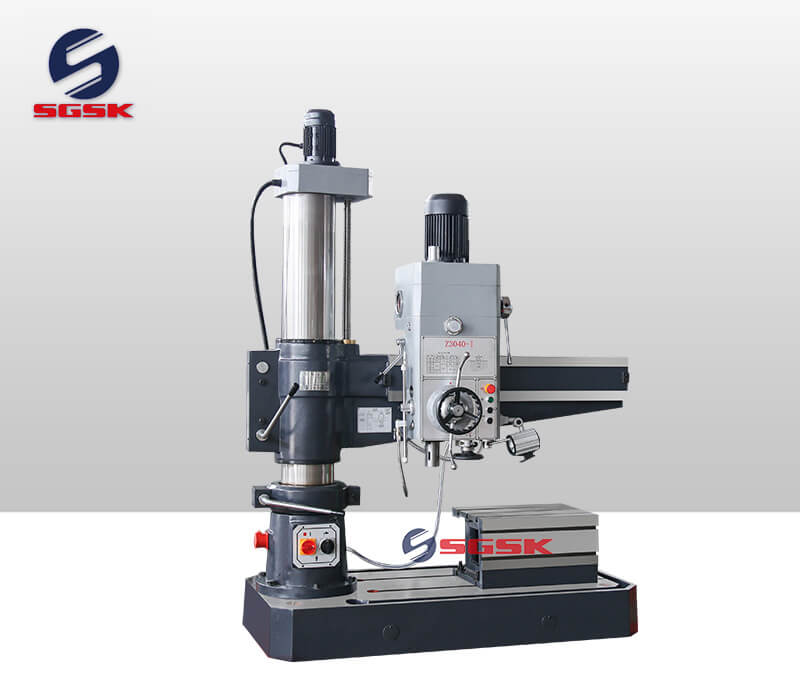

Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Centralized mechanical variable speed
Low Speed
Large travel
Mechanical transmission
Mechanical clamping
Automatic take-off and landing
Automatic feed
Radial Drilling Machine Main Technical Parameters:
| SPECIFICATIONS | Z3040×11/I |
| Max.drilling dia(mm) | 40 |
| Headstock level migration distance (mm) | 715 |
| Distance from spindle axis to column surface (mm) | 330-1050 |
| Under the main axle is away from the end surface to the basic skills left side of (mm) | 170-1110 |
| Rocking shaft heave height (mm) | 700 |
| Rocker vertical moving speed(m/mm) | 1.32 |
| Rocker rotary angle ° | ±90° |
| Spindle taper(MT) | MT4 |
| Spindle speeds range(r/mm) | 40-1896 |
| Spindle speed steps | 12 |
| Spindle feeding range(mm/r) | 0.13-0.54 |
| Spindle feeding steps | 4 |
| Spindle travel(mm) | 260 |
| Maximum torque spindle(N) | 200 |
| Maximum resistance to the spindle(N) | 10000 |
| Spindle motor power(kw ) | 2.2 |
| Weight(kg) | 1600 |
| Overall dimensions of machine(L×W×H) (mm) | 1655×720×2200 |
