Product Model:

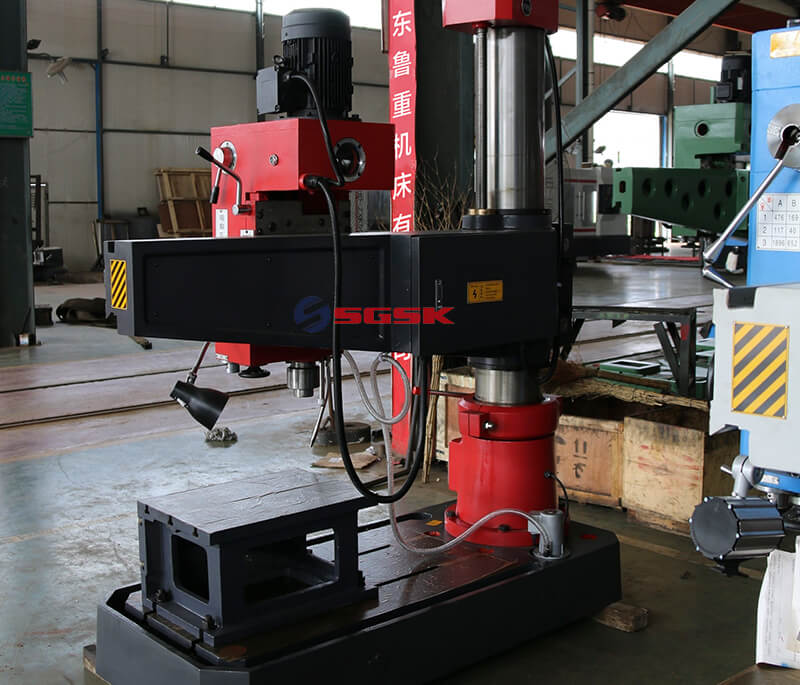

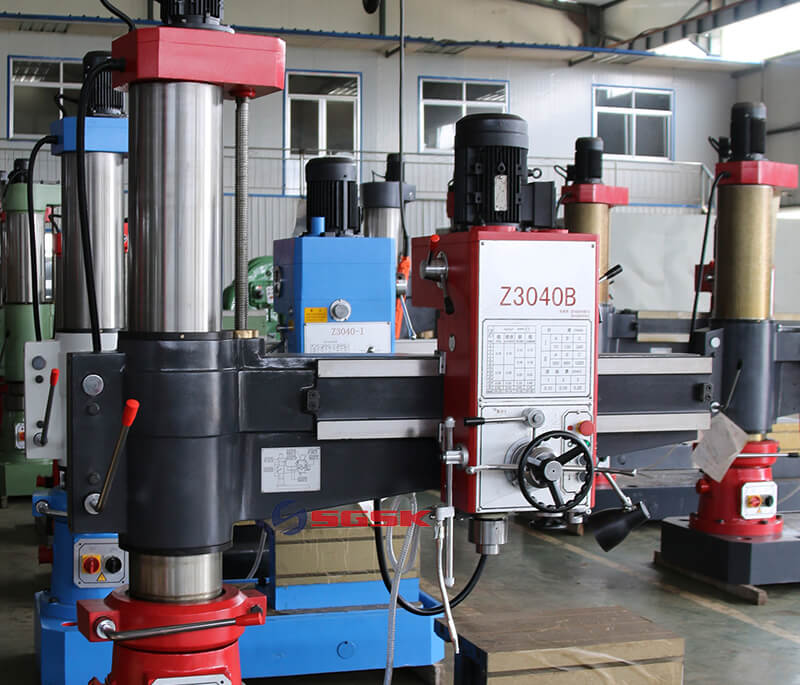

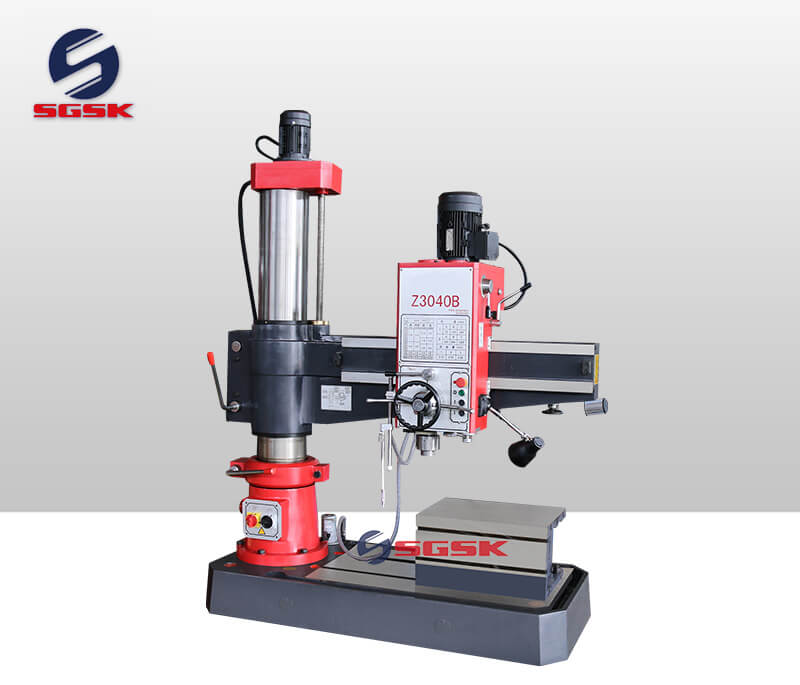

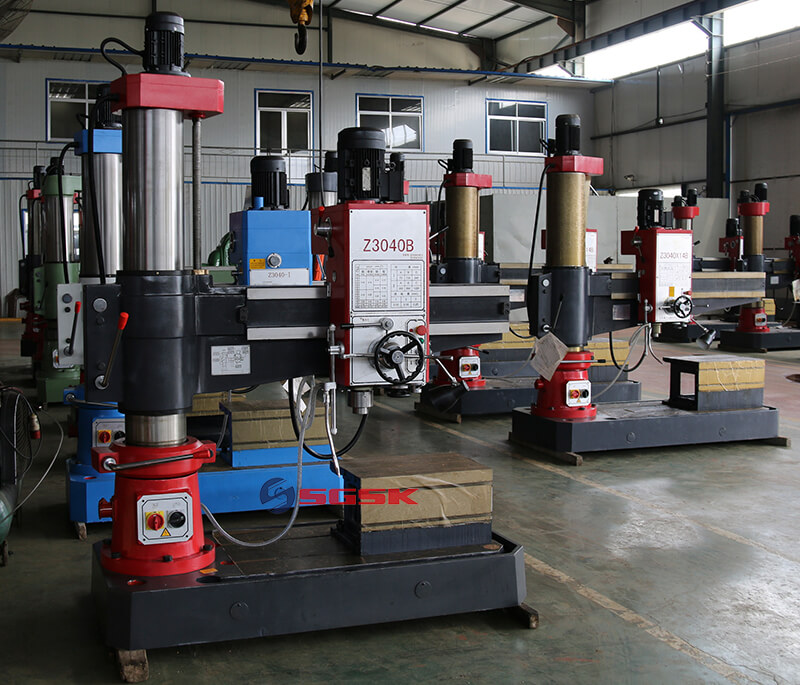

Z3040x11B Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

Mechanical clamping

Mechanical speed

Automatic retraction

Strengthening spindle


Radial Drilling Machine Main Technical Parameters:

ModelZ3040x11B
Max.drilling dia (mm)40
Distance from spindle nose to table surface (mm)330-1050
Distance from spindle axis to column surface (mm)170-1100
Spindle travel (mm)250
Spindle taper(MT)4
Spindle speeds range(r.p.m)75, 130,240,380,660,1200
Spindle speed steps6
Spindle feeding range(mm/r)0.10/0.16/0.25
Spindle feeding steps3
Rocker rotary angle (°)±90°
Main motor power (kw)2.2
Maximum resistance to the spindle(N)6300
Movements motor power (kw)0.75
Net weight (kg)1600
Overall dimensions (mm)1500×705×2200
