Product Model:

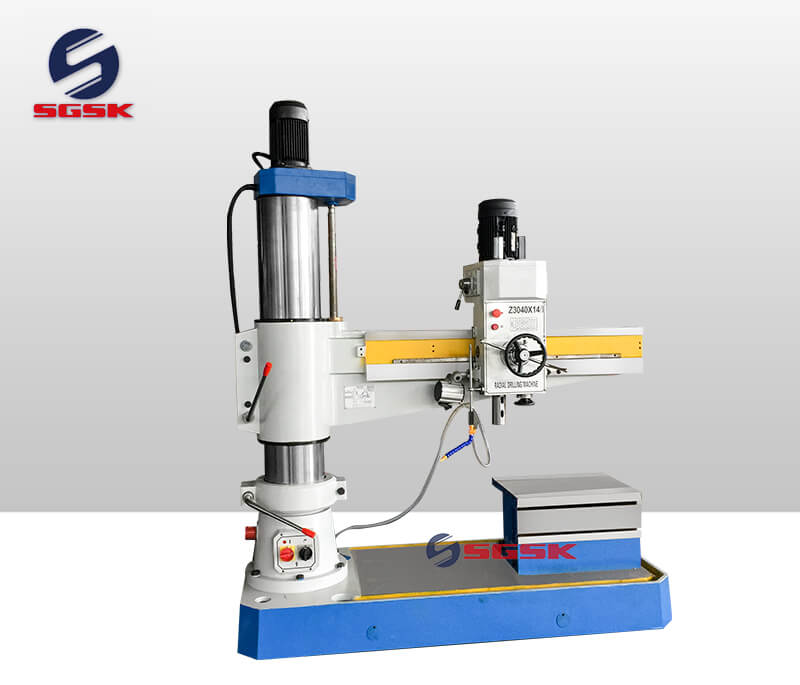

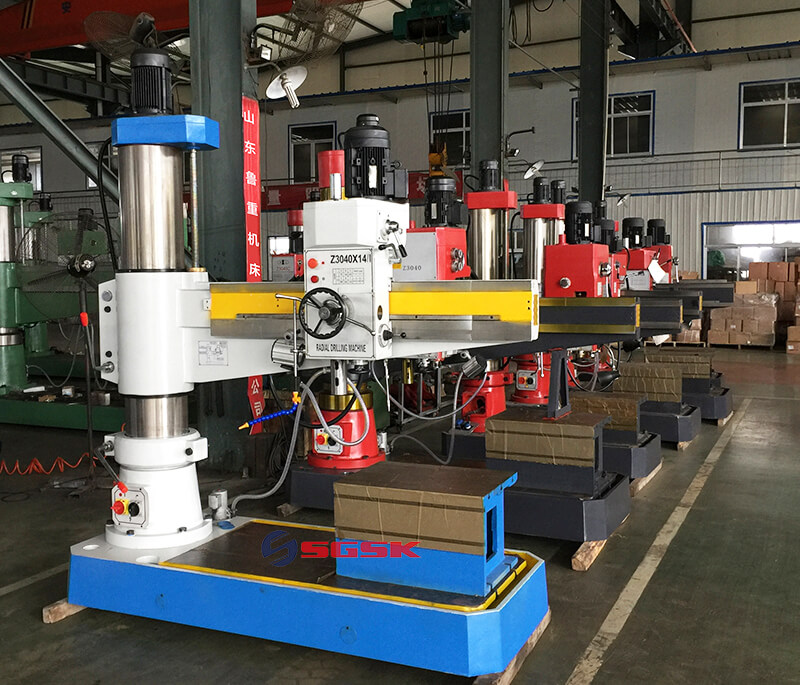

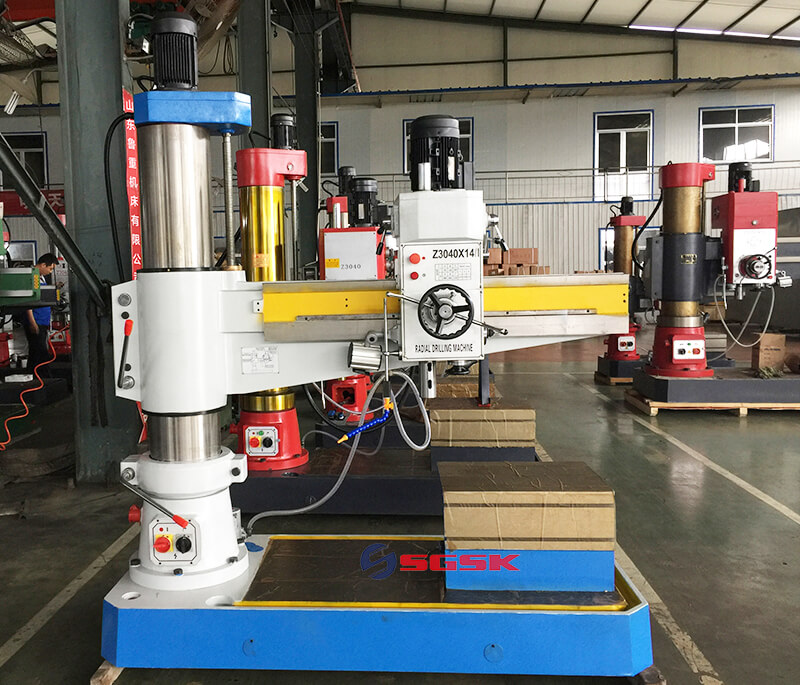

Z3040X14/II Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

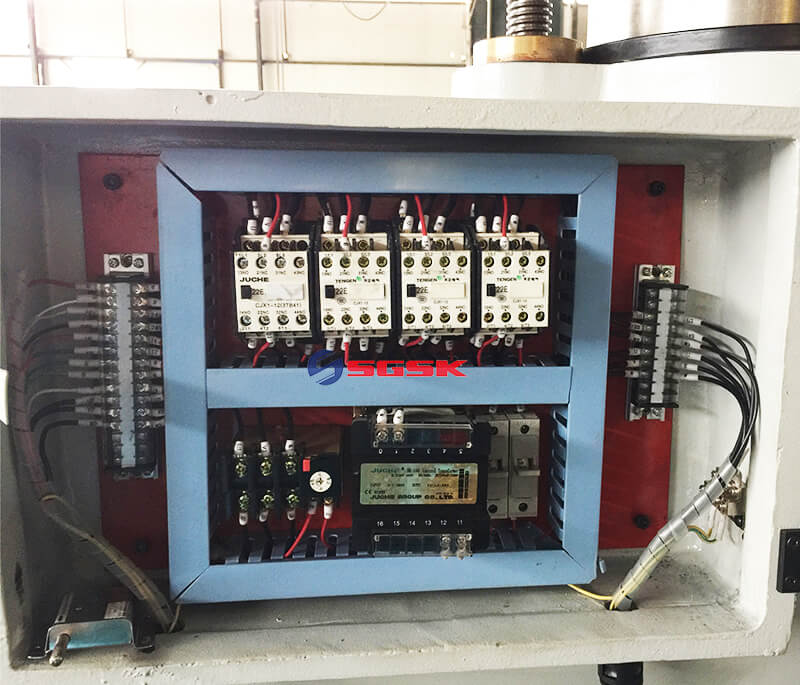

Electricity column clamping

Mechanical speed

Electricity take-off and landing ,spindle positive and inversion

Automatic feed


Radial Drilling Machine Main Technical Parameters:

SPECIFICATIONSZ3040×14/II
Max.drilling dia (mm)cast iron 40 / Steel32
Distance from spindle nose to table surface (mm)260-1050
Distance from spindle axis to column surface (mm)360-1400
Spindle travel (mm)270
Spindle taper(MT)4
Spindle speeds range(r.p.m)40-1250
Spindle speed steps6
Spindle feeding range(mm/r)0.10-0.25
Spindle feeding steps3
Rocker rotary angle (°)±90°
Main motor power( kw)2.2
Movements motor power (kw)1.5
Weight (kg)2200
Overall dimensions (mm)1800×810×2200
