Product Model:

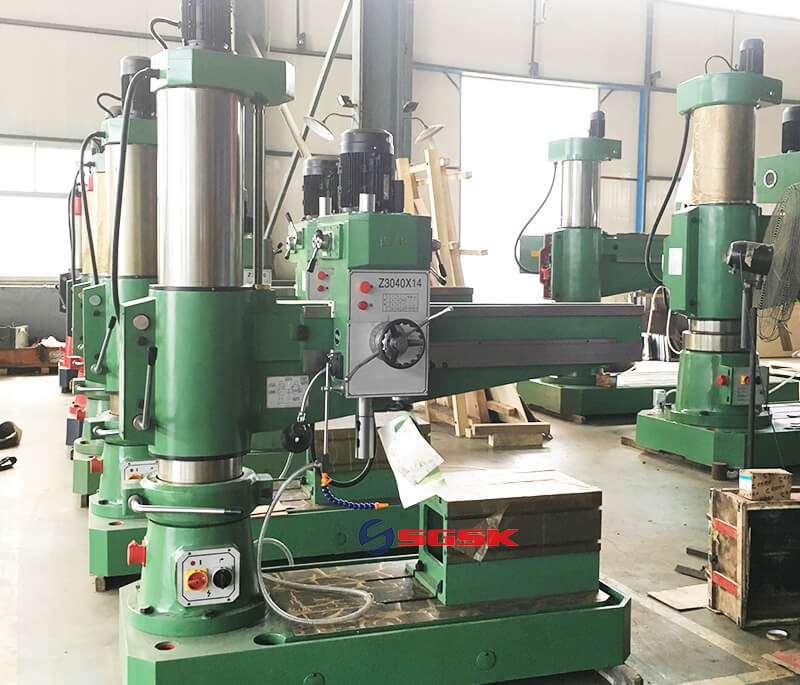

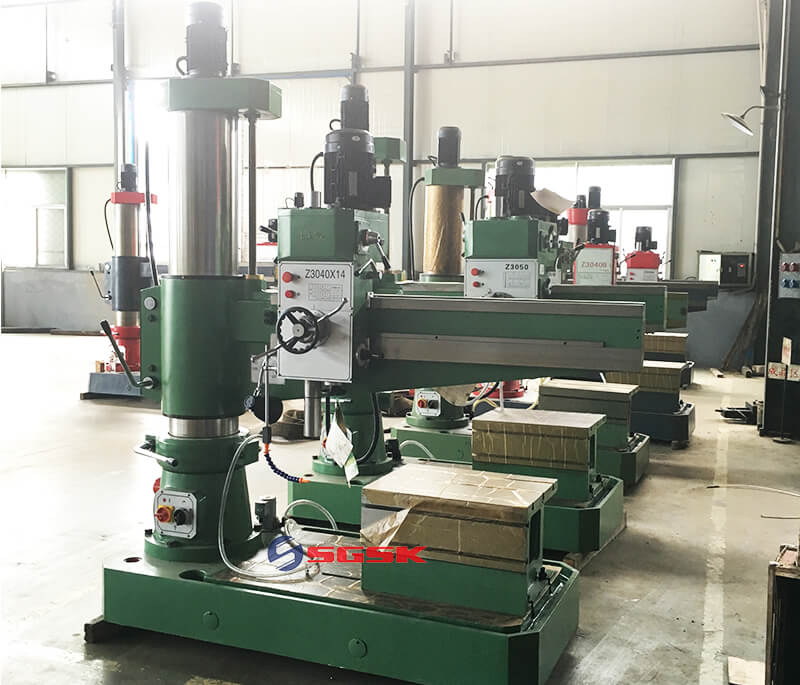

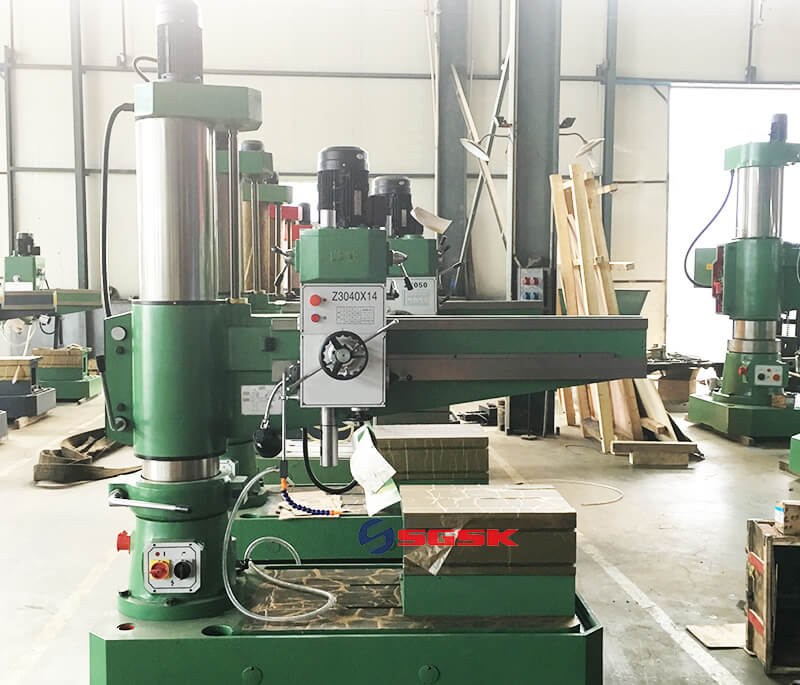

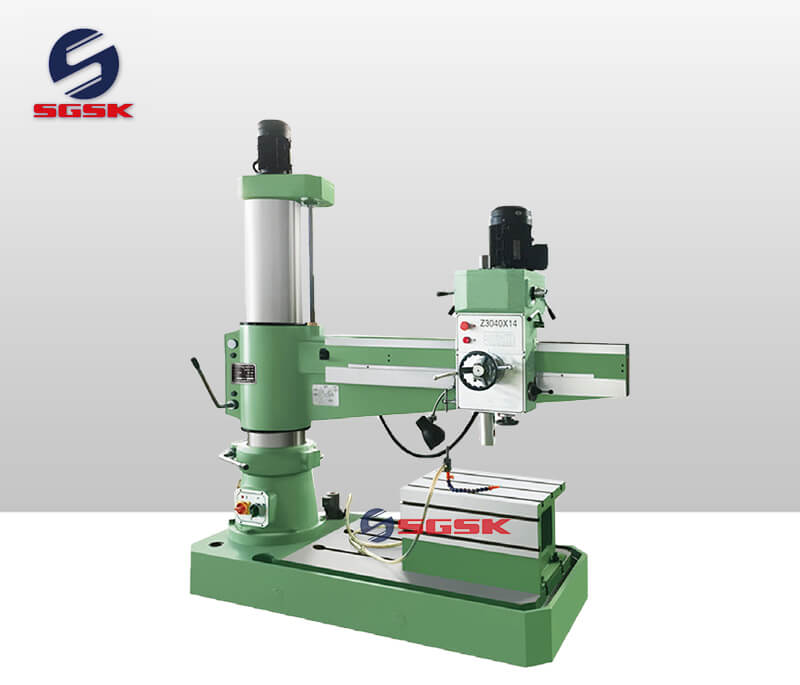

Z3040X14 Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

Mechanical clamping

Mechanical speed

Automatic take-off and landing

Automatic feed



Radial Drilling Machine Main Technical Parameters:

SPECIFICATIONSZ3040×14
Max.drilling dia (mm)cast iron 40 / Steel32
Distance from spindle nose to table surface (mm)380-1280
Distance from spindle axis to column surface (mm)300-1350
Spindle travel (mm)200
Spindle taper(MT)4
Spindle speeds range (r.p.m) 75,130,240,380,660,1200
Spindle speed steps6
Spindle feeding range (r.p.m)0.10-0.25
Spindle feeding steps3
Rocker rotary angle( °)±90°
Main motor power (kw)2.2
Movements motor power( kw)1.5
Weight (kg)2000
Overall dimensions (mm)1800×810×2300
