Product Model:

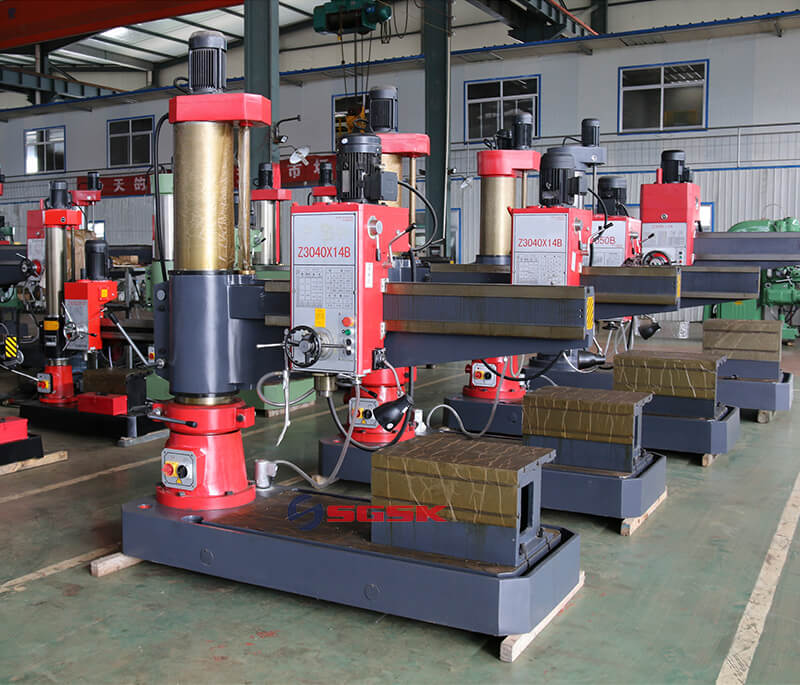

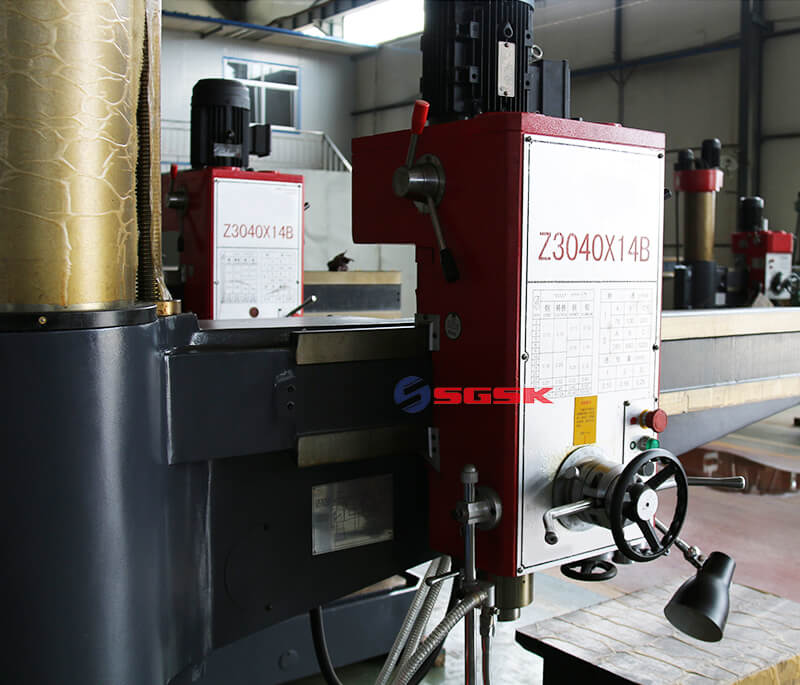

Z3040X14B Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

Mechanical clamping

Mechanical speed

Automatic retraction

Strengthening spindle



Radial Drilling Machine Main Technical Parameters:

ModelZ3040x14B
Max.drilling dia (mm)40
Distance from spindle nose to table surface (mm)380-1280
Distance from spindle axis to column surface (mm)300-1350
Spindle travel (mm)250
Spindle taper(MT)4
Spindle speeds range(r.p.m)75, 130,240,380,660,1200
Spindle speed steps6
Spindle feeding range(mm/r)0.10/0.16/0.25
Spindle feeding steps3
Rocker rotary angle (°)±90°
Main motor power (kw)2.2
Maximum resistance to the spindle(N)6300
Movements motor power (kw)1.5
Net weight (kg)2000
Overall dimensions (mm)1800×810×2300
