Product Model:

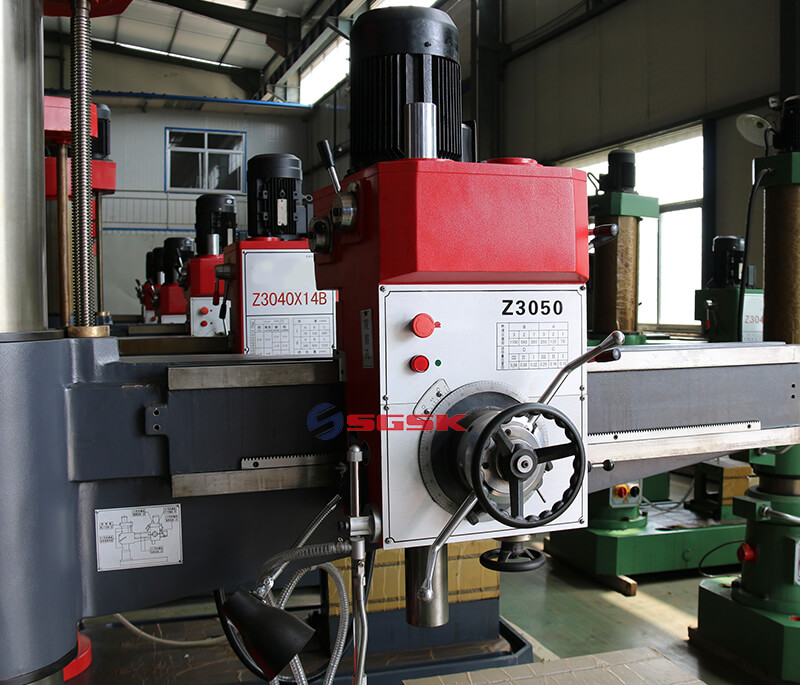

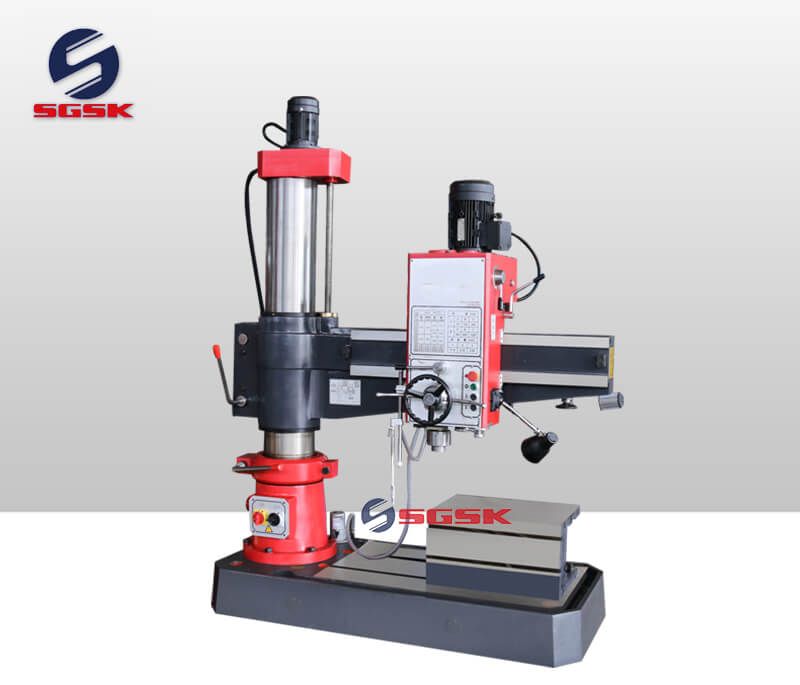

Z3050x14 Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

Mechanical  clamping

Mechanical speed

Automatic take-off and  landing

Automatic feed


Radial Drilling Machine Main Technical Parameters:

SpecificationZ3050x14
Max. drilling diameter (mm)50
Distance between spindle axis and column (mm)330-1310
Distance between spindle nose and working table(mm)300-1250
Spindle travel (mm)210
Spindle taper(morse)5
spindle speeds range (r.p.m)78,135,240,350,590,1100
Number of spindle speeds6
Spindle feeds range (r.p.m)0.10-0.56
Steps of spindle feeds6
Radial rotation Angle(°)±90°
main motor (kw)4
Lifting motor power (kw)1.5
weight (kg)2000
overall dimensions (mm)1950*810*2450
