Product Model:

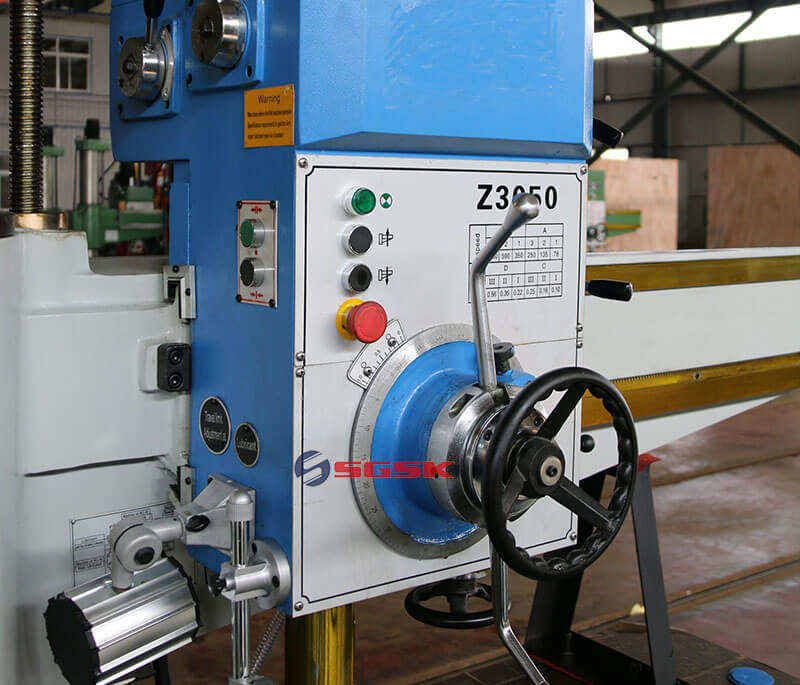

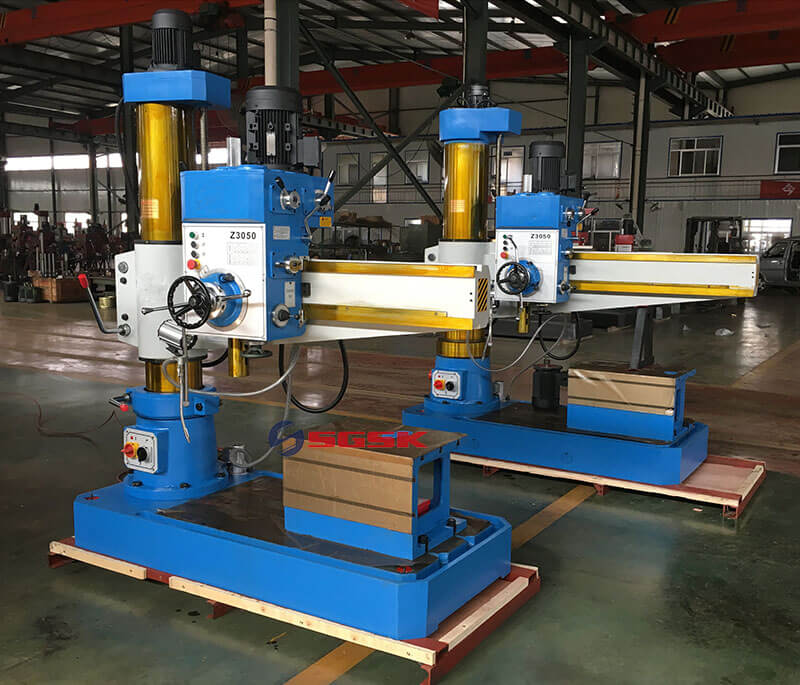

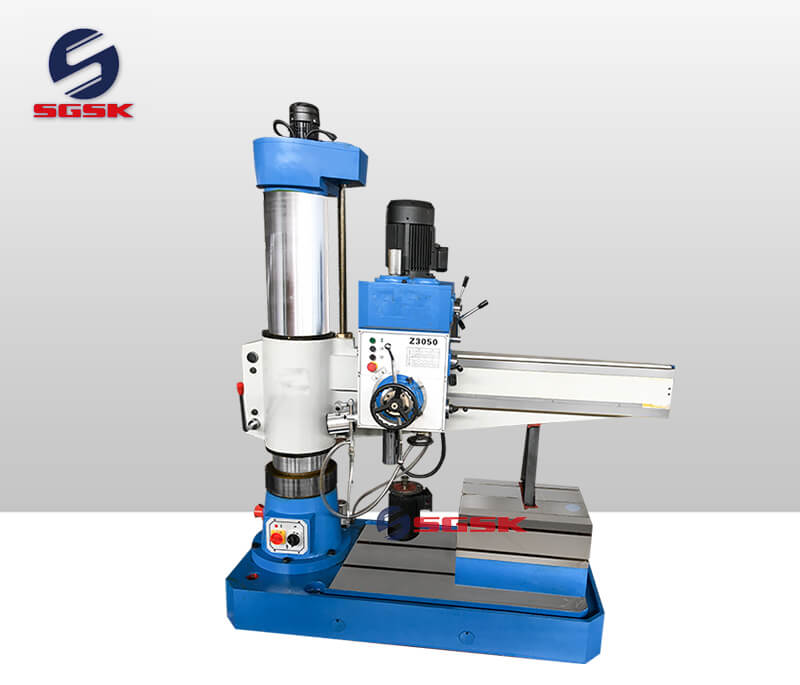

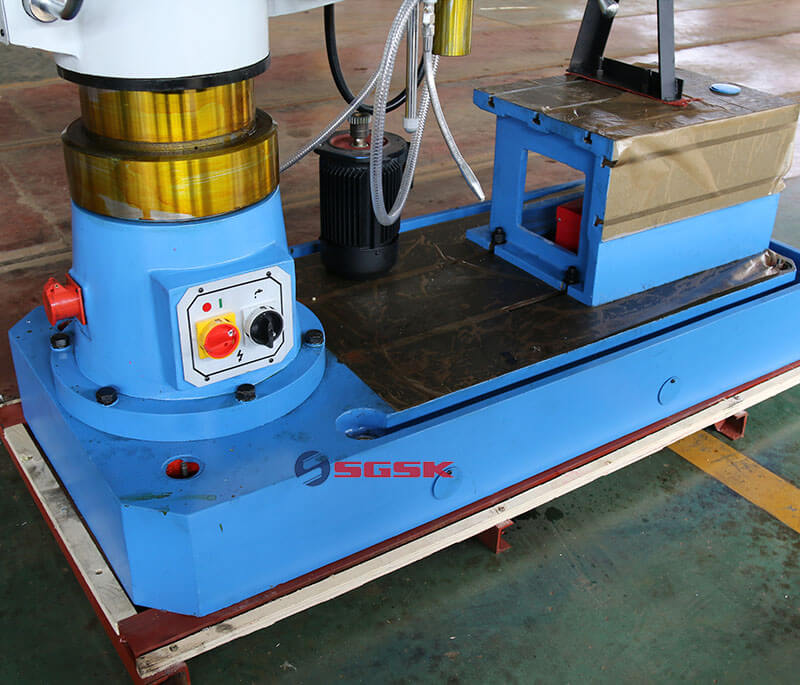

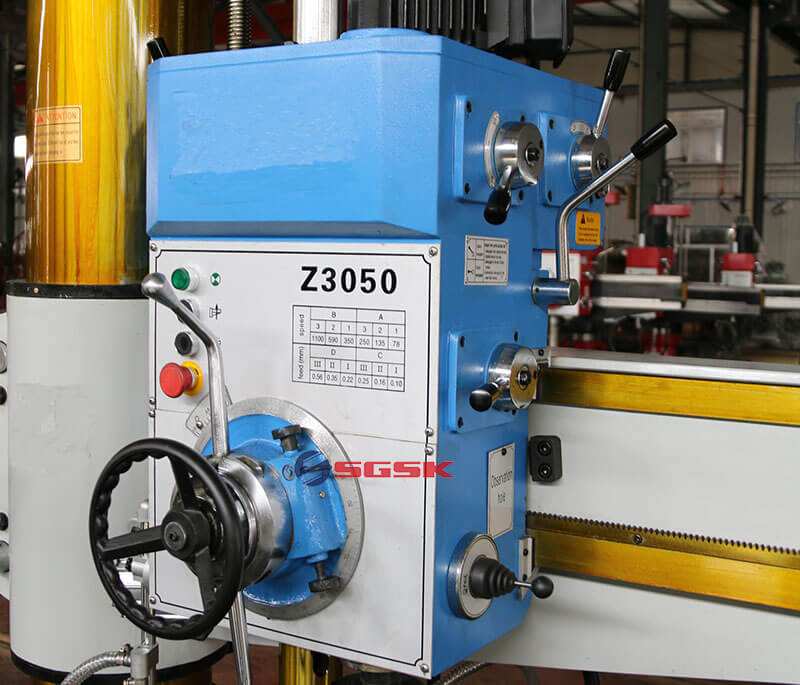

Z3050x14II Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

Mechanical transmission

Electricity clamping

Mechanical speed

Electricity take-off and landing,spindle promotion and inversion

Automatic feed


Radial Drilling Machine Main Technical Parameters:

SPECIFICATIONSZ3050×14/II
Max.drilling dia (mm)50
Distance from spindle nose to table surface (mm)300-1210
Distance from spindle axis to column surface (mm)330-1290
Spindle travel (mm)210
Spindle taper(MT)5
Spindle speeds range(r.p.m)78,135,240,350,590,1100
Spindle speed steps6
Spindle feeding range(mm/r)0.10-0.56
Spindle feeding steps6
Rocker rotary angle (°)±90°
Main motor power( kw)4
Movements motor power (kw)1.5
Weight (kg)2300
Overall dimensions (mm)2170×950×2450
