Product Main Technical Parameters

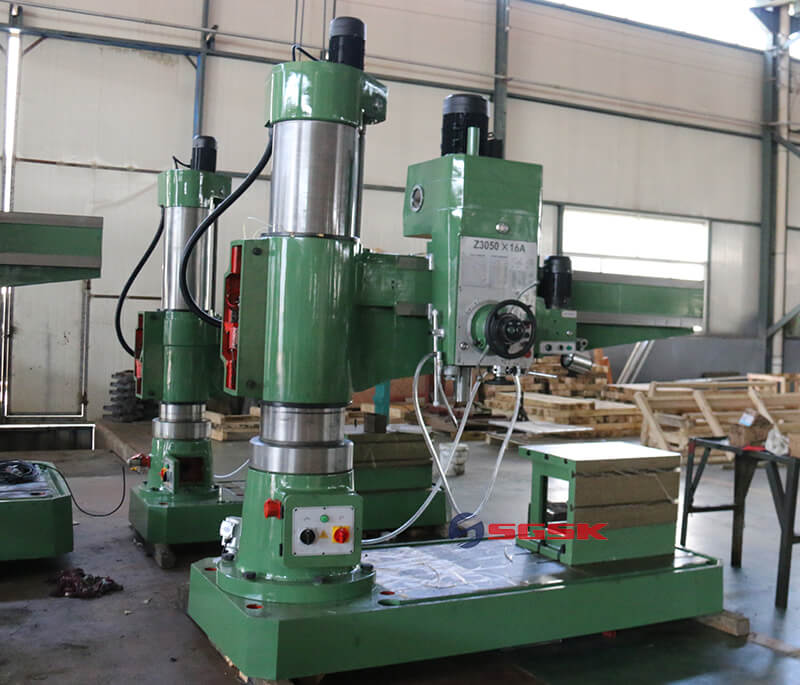

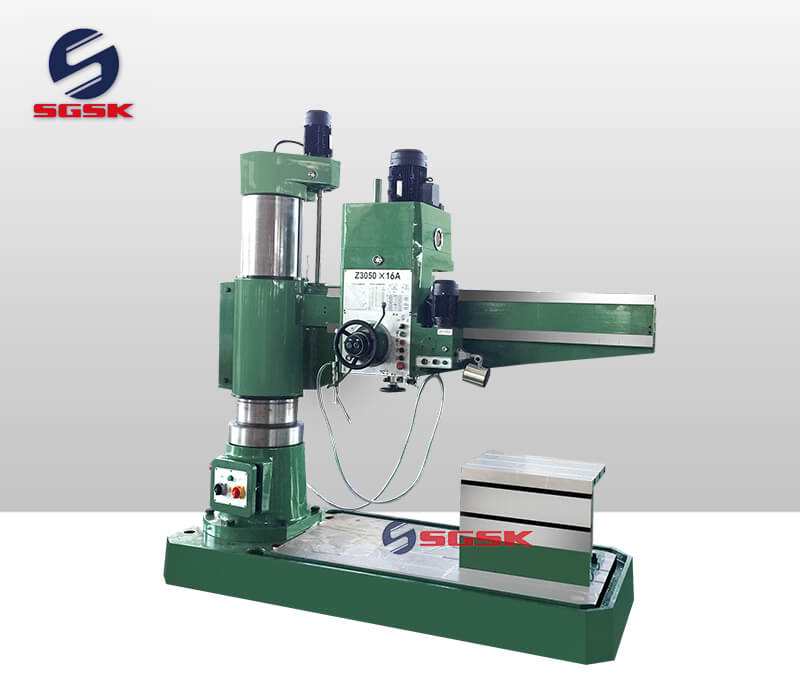

Hydraulic Radial Drilling Machine Main Performance Characteristics：
1.Hydraulic transmission
2.Hydraulic clamping
3.Hydraulic pre-selection
4.Headstock level automatically fast forward
Hydraulic Radial Drilling Machine Main Technical Parameters：

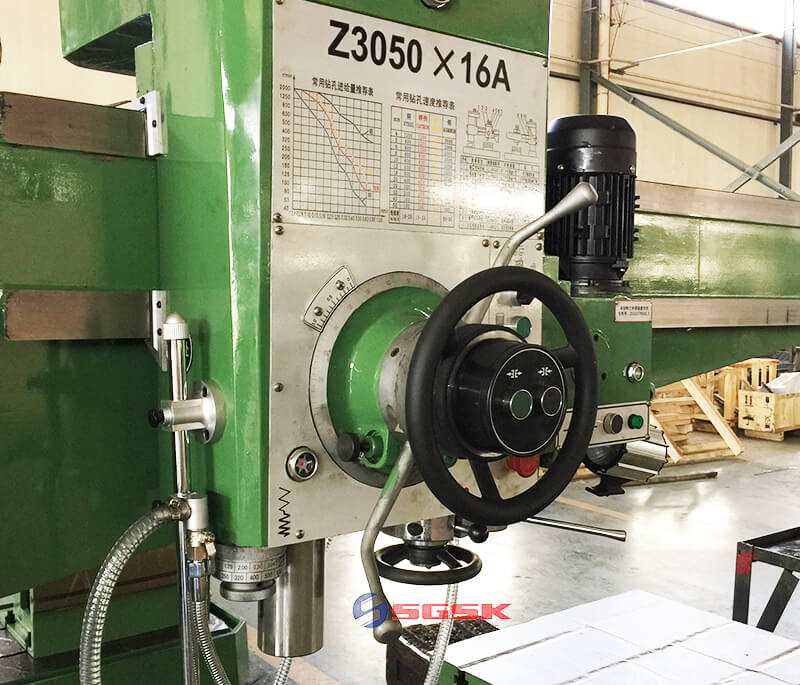

| SPECIFICATIONS | Z3050×16A |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 200-1110 |
| Distance from spindle axis to column surface (mm) | 370-1620 |
| Spindle travel (mm) | 315 |
| Spindle taper(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed steps | 16 |
| Spindle feeding range(mm/r) | 0.04-3.2 |
| Spindle feeding steps | 16 |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500x1060x2800 |
