Product Model:

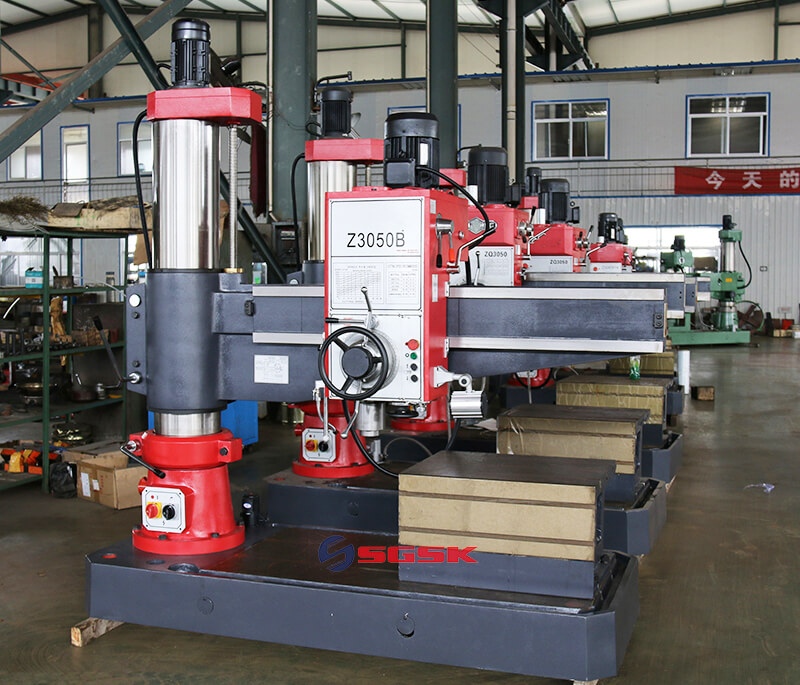

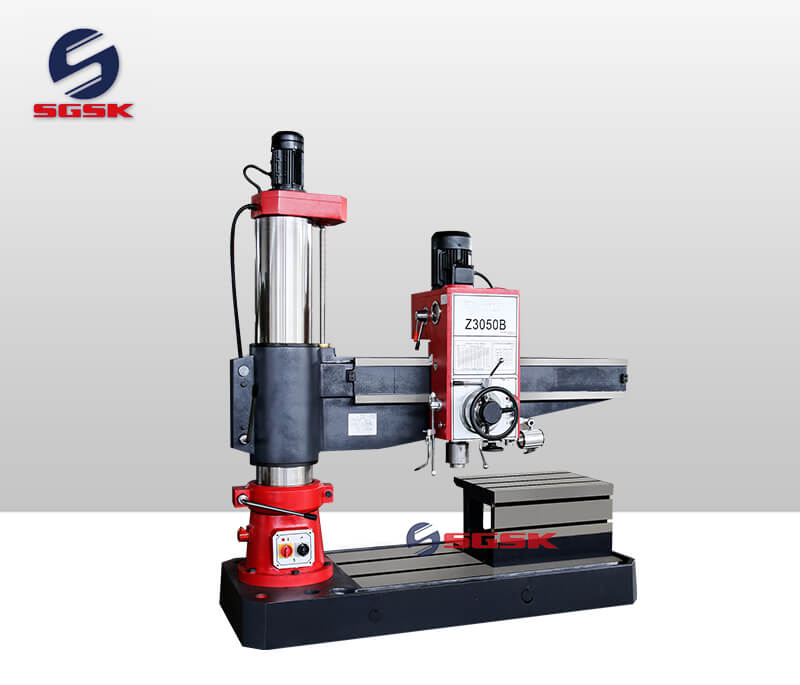

Z3050X16B Radial Drilling Machine

Product Main Technical Parameters

Radial Drilling Machine Main Performance Characteristics:

 Mechanical transmission

Mechanical clamping

Mechanical speed
Automatic retraction

Strengthening spindle



Radial Drilling Machine Main Technical Parameters:

SPECIFICATIONSZ3050×16B
Max.drilling dia (mm)50
Distance from spindle nose to table surface(mm)260-1050
Distance between spindle axis and column surface (mm)360-1600
Spindle travel (mm)270
Spindle cone(MT)5
Spindle speeds range (r.p.m)35,60,105,170,290,395,540,710,1310
Spindle speed step9
Spindle feeding range(r.p.m)0.1,0.16,0.22,0.25,0.35,0.56
Spindle feeding step6
Rocker rotary angle (°)±90°
Main motor power  (kw)4
Maximum resistance to the spindle (N)16000
Movements motor power (kw)1.5
Weight (kg)2600
Overall dimensions (mm)2170×950×2450
