Product Model:

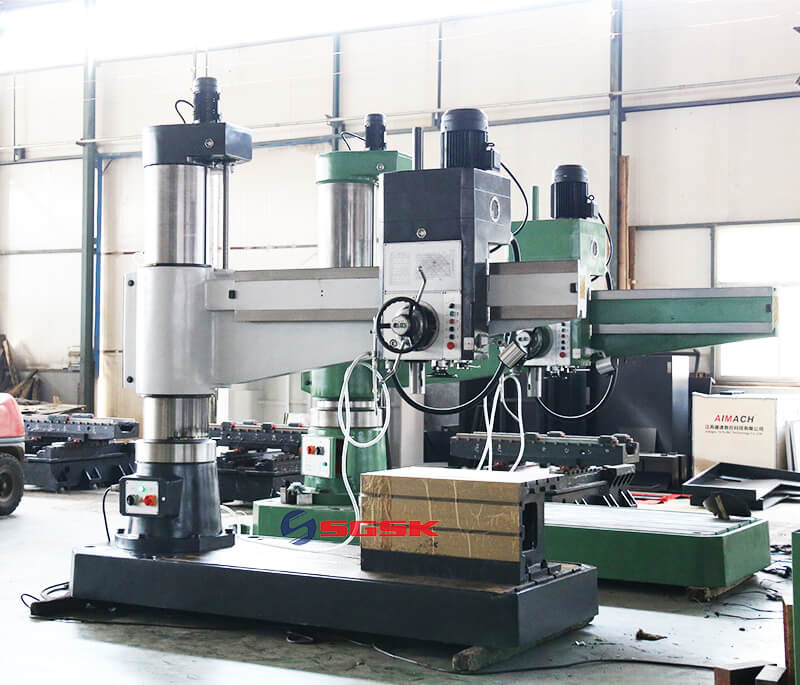

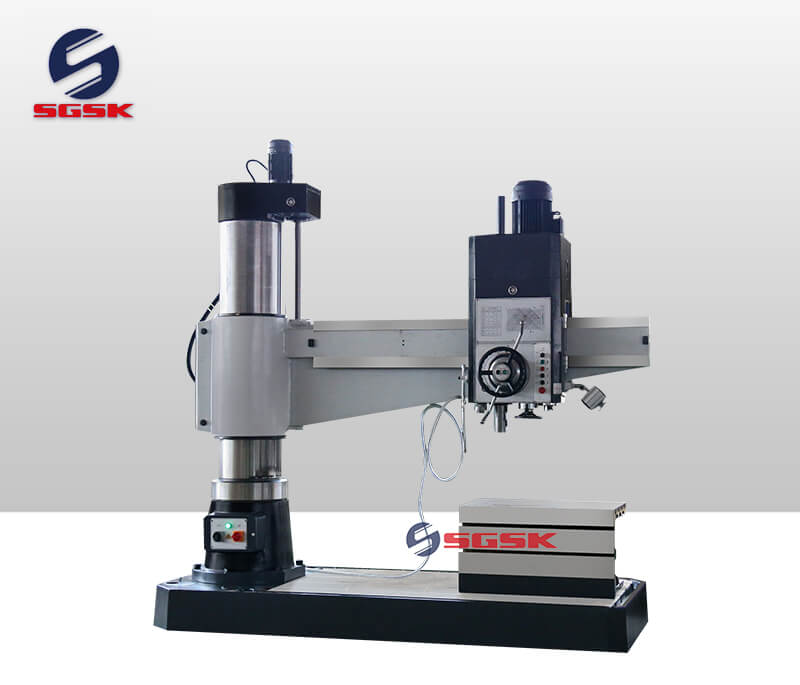

Z3063*20A Hydraulic Radial Drilling Machine

Product Main Technical Parameters

Hydraulic Radial Drilling Machine Description:

1.hydraulic clamping

2.Hydraulic transmission

3.Hydraulic pre-selection

4.Electrical machinery double insurance


Hydraulic Radial Drilling Machine Main Technical Specifications:

SpecificationsZ3063*20A
Max. drilling diameterΦ63
Distance from spindle nose to table surface220-1300
Distance between spindle axis and column surface430-1900
Spindle travel400
Spindle taperMorse No. 5
Spindle speeds range16-1600(16 steps)
Spindle feeding range0.04-3.2(16 steps)
Rocker rotary angle+/-90°
Main motor power5.5
Movements motor power1.5
N/W6500
Overall dimension (L*W*H))3080×1250×3205
