Product Model:

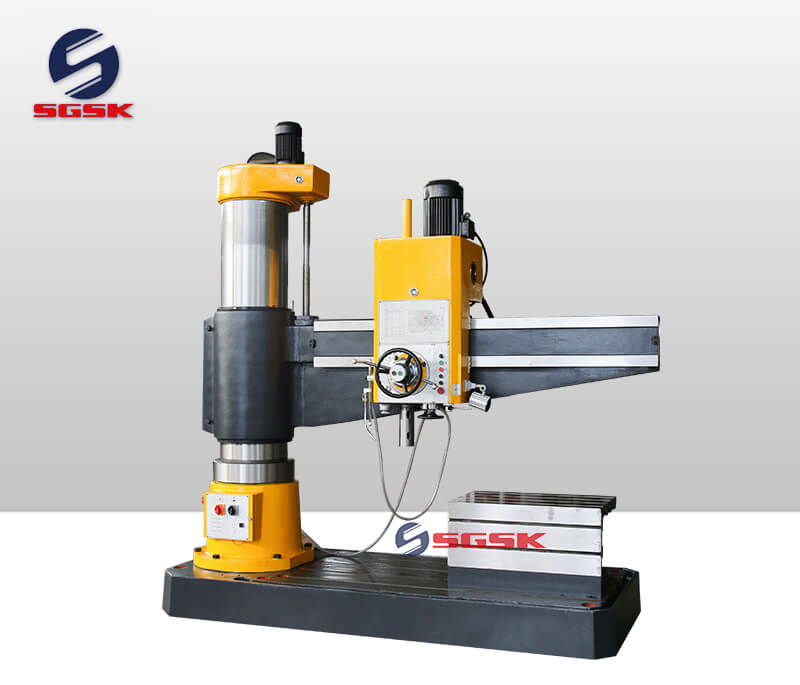

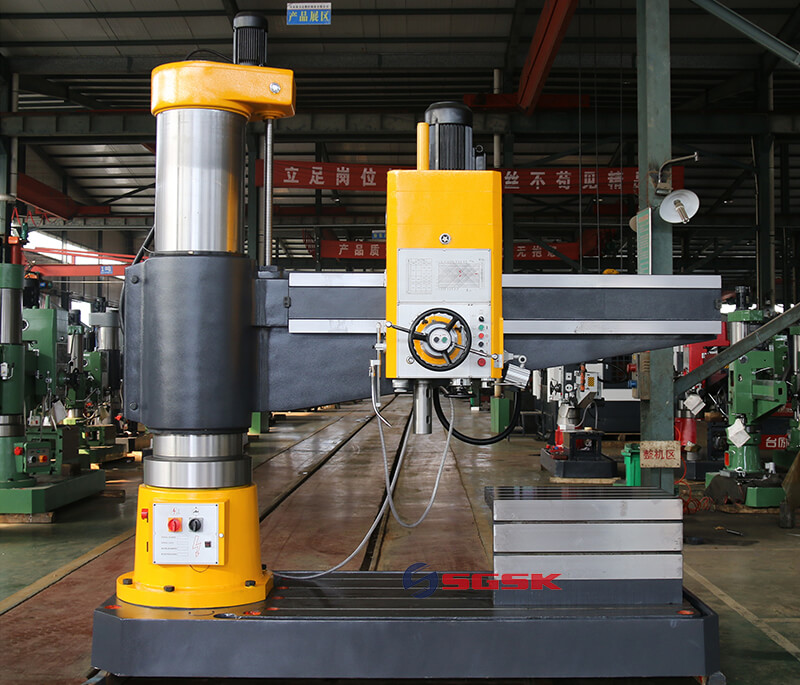

Z3080*20A Z3080*25A Hydraulic Radial Drilling Machine

Product Main Technical Parameters

Hydraulic Radial Drilling Machine Description:

1.hydraulic clamping

2.Hydraulic transmission

3.Hydraulic pre-selection

4.Electrical machinery double insurance


Hydraulic Radial Drilling Machine Main Technical Specifications:

SpecificationsUnitsZ3080*20AZ3080*25A
Max. drilling diametermm8080
Distance from spindle nose to table surfacemm350-1570350-1570
Distance between spindle axis and column surfacemm510-2000480-2500
Spindle travelmm400400
Spindle taperMT66
Spindle speeds range(r.p.m)16-160016-1600
Spindle speed step
1616
Spindle feeding range(r.p.m)0.04-3.200.04-3.20
Spindle feeding step
1616
Rocker rotary angle
+/-90°+/-90°
Main motor powerkw7.57.5
Movement motor powerkw1.51.5
N/Wkg70009500
Overall dimensions(L*W*H)mm2980*1250*33003500*1450*3300
