Product Main Technical Parameters

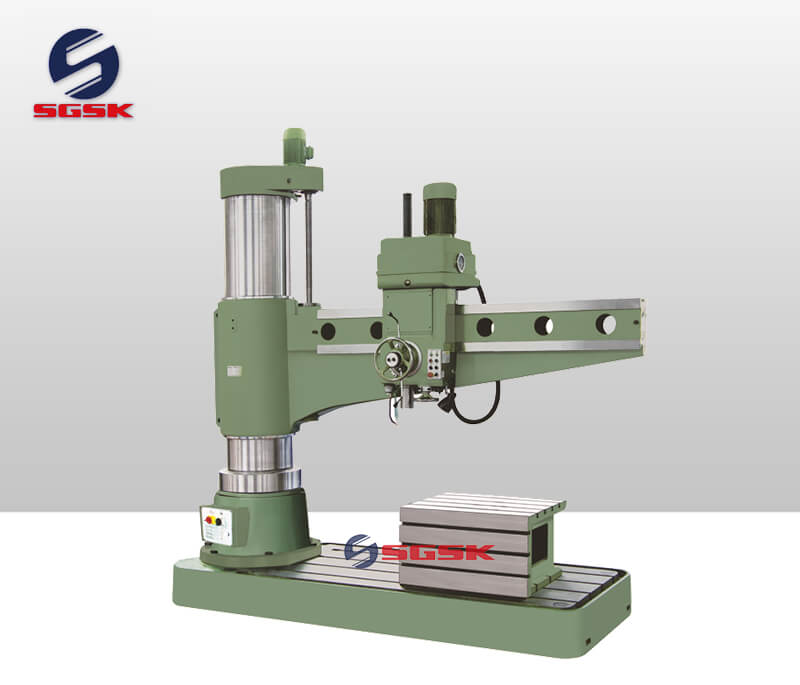

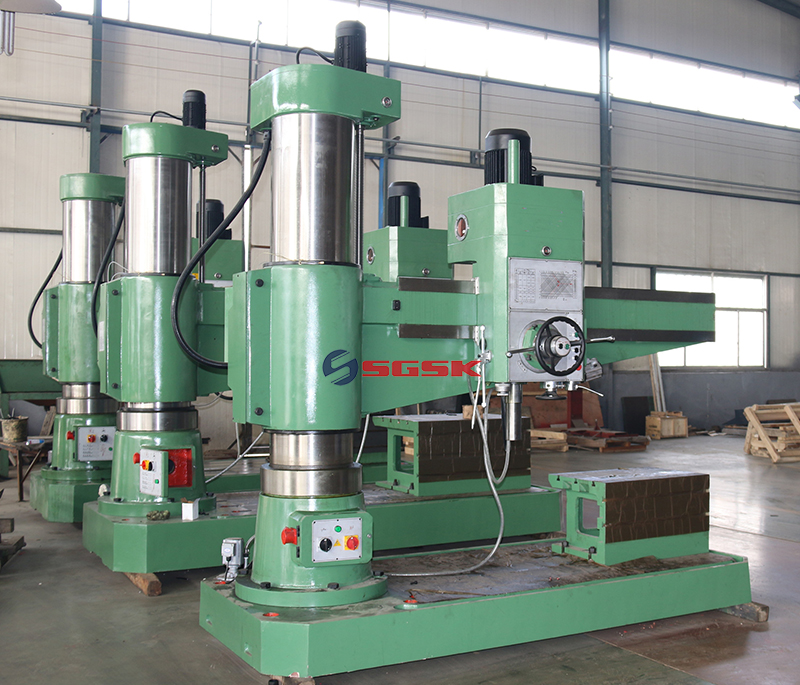

Hydraulic Radial Drilling Machine Features
Hydraulic clamping
Hydraulic transmission
Hydraulic pre-selection
Electrical machinery double insurance
Hydraulic Radial Drilling Machine Main Technical Specifications:
| SPECIFICATIONS | Z3080X25/I |
| Max. drilling dia(mm) | 80 |
| Spindle center to column generating distance | 500-2500 |
| Distance from spindle nose to table surface(mm) | 550-2000 |
| Spindle travel (mm) | 450 |
| Spindle Cone | 6 |
| Range of spindle speeds(r.p.m) | 16-1250 |
| Spindle speed series | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |

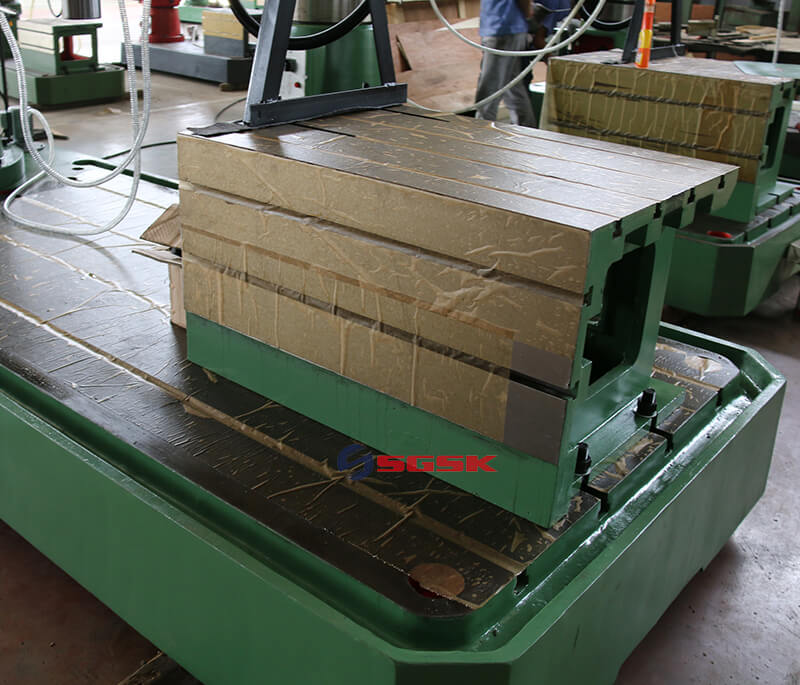

| Table size（mm） | 1000x800x560 |
| Headstock horizontal movement distance(mm） | 2000 |
| Main motor power (kw) | 7.5 |
| Machine weight | 11000 |
| Overall dimensions(mm) | 3730x1400x4025 |
