Product Model:

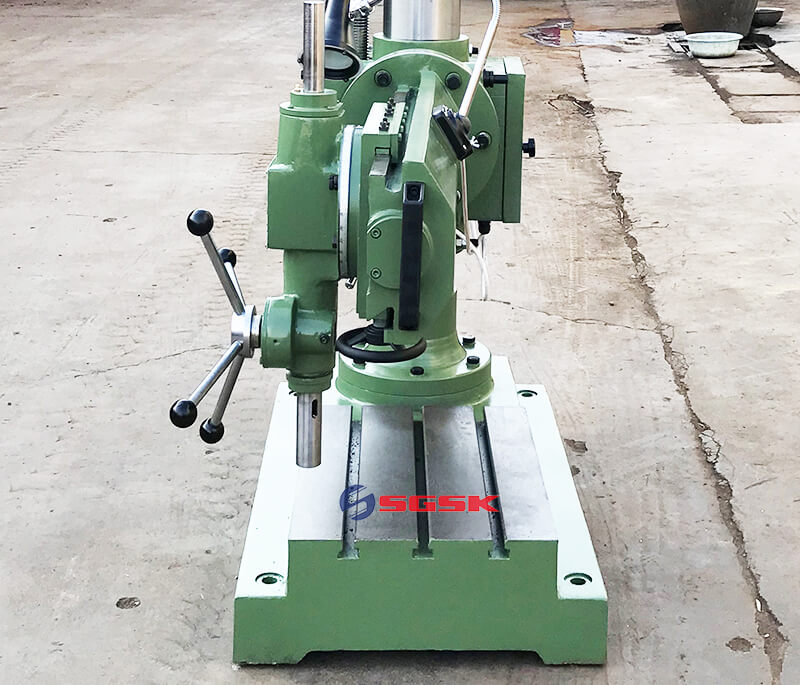

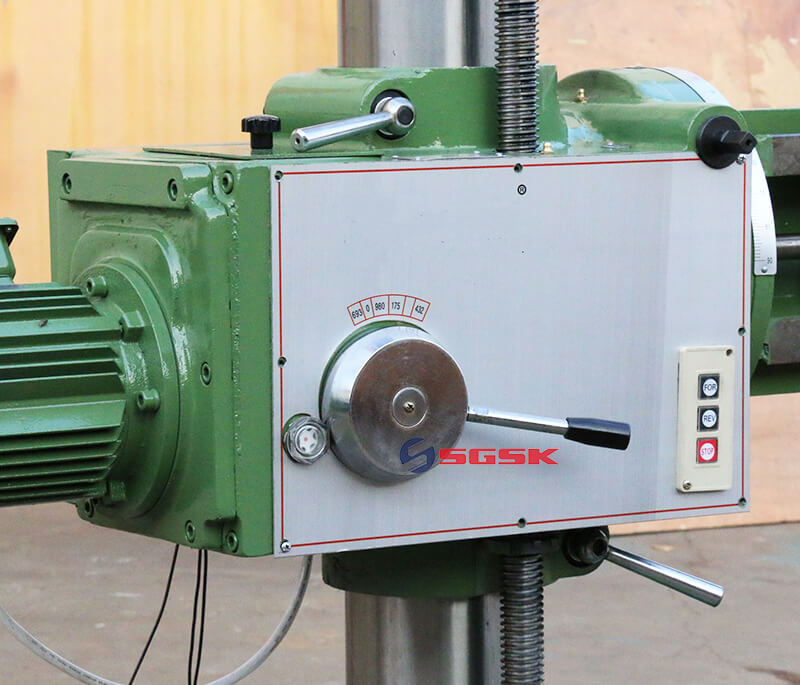

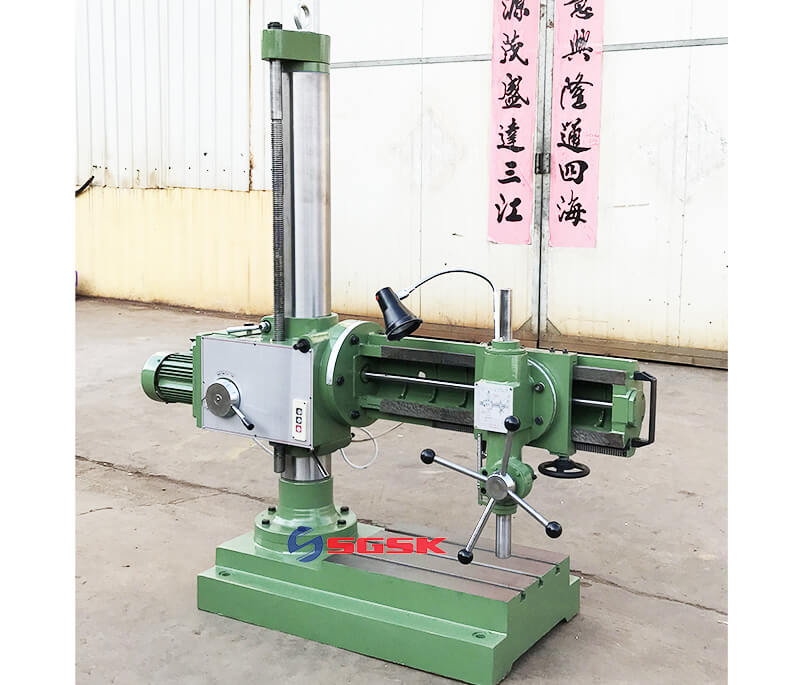

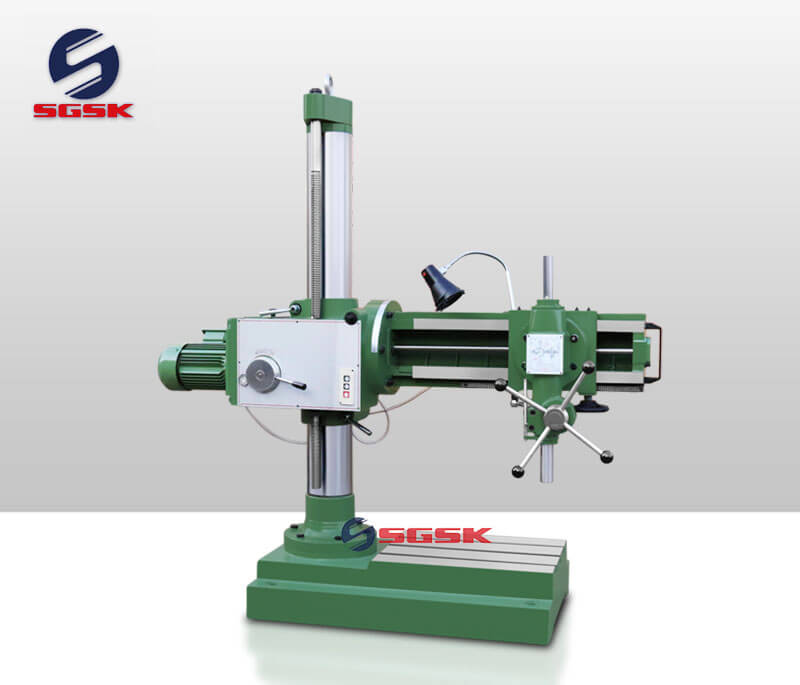

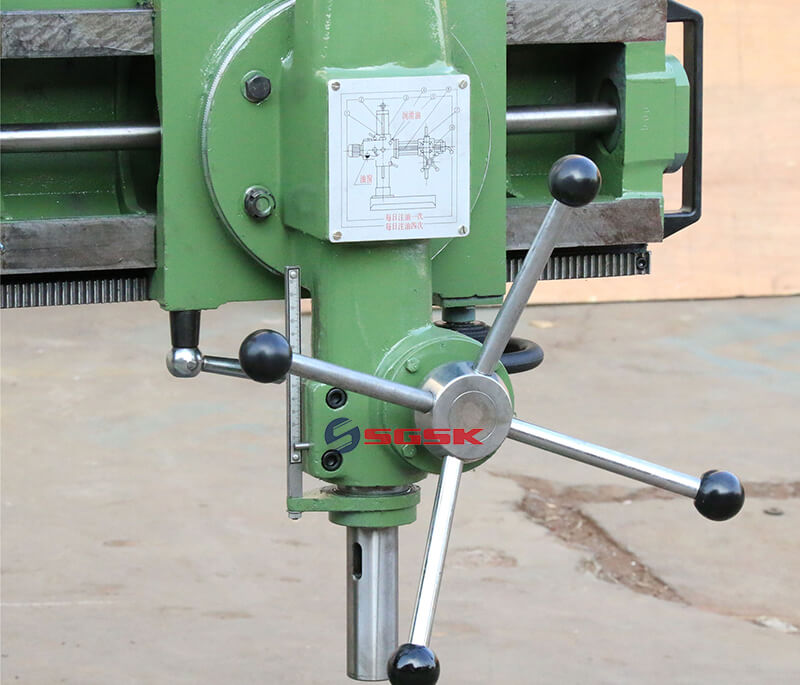

Z3132 Radial Drilling Machine

Product Main Technical Parameters


SpecificationsZ3132
Max.drilling diameter32mm
Spindle center to columnsurfacemax815mm
min315mm
Spindle box horizontal movement500mm
Spindle nose to basemax870mm
min25mm
Spindle rotary angle360°
Spindle rotary angle round horizontal line perpendicular to the column360°
Spindle rotary angle round the column360°
Radial arm lifting speed1.51m/min
Spindle box travel in column845mm
Spindle taperNO.4
Spindle travel130mm
Spindle speed86.5,173 ,212.5,425,343,686,480,960r/min
Base table size710×500mm
Main motor power1.5kw or 2.2kw
Machine weight(apporx)850kg
Machine size(L×W×H)1800×700×2044mm
