Product Main Technical Parameters

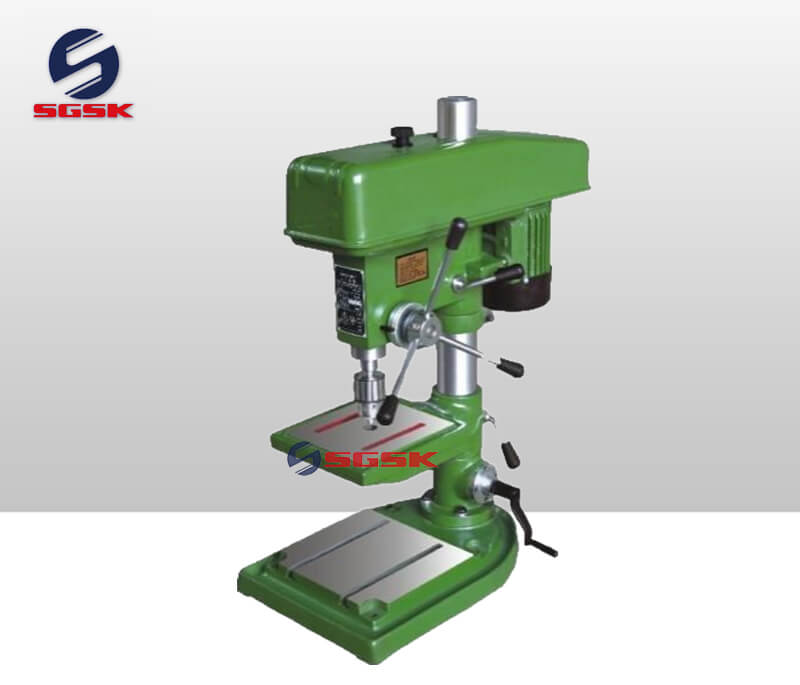

Bench Drilling Machine Description:
1. Both spindle head, column and base using high quality cast iron, strong and everlasting.
2. High precision with excellent feature, widely use at instrument and camera area.
Bench Drilling Machine Main Technical Specifications:
Specifications | Z4112A/4116A | Z4116A | Z4120/Z4125 |
Max. Drilling capacity(mm) | 12.7/16 | 16 | 20/25 |
Diameter of column(mm) | 70 | 85 | 85 |
Spindle travel(mm) | 100 | 125 | 125 |
Distance spindle axis to column surface(mm) | 193 | 240 | 240 |
Max distance spindle nose to worktable(mm) | 95 | 297 | 367 |
Max. Distance spindle nose to worktable(mm) | 320 | 560 | 630 |
Spindle taper(mm) | B16/MT2 | MT2 | MT2/MT3 |
Spindle speeds range(r/min) | 400-4090 | 365-3150 | 365-3150 |
Spindle speeds series(r/min) | 5 | 5 | 5 |
Dimension of worktable surface(mm) | 250×250 | 280×300 | 280×300 |
Dimension of base(mm) | 495×375 | 590×375 | 590×375 |
Overall height(mm) | 850 | 1127 | 1127 |
Motor(W) | 550/750 | 750 | 750/1100 |
G.W/N.W(kg) | 120/102 | 165/140 | 165/140 |
Packing size(cm) | 83×42×92 | 83×42×92 | 82×48×102 |
