Product Model：

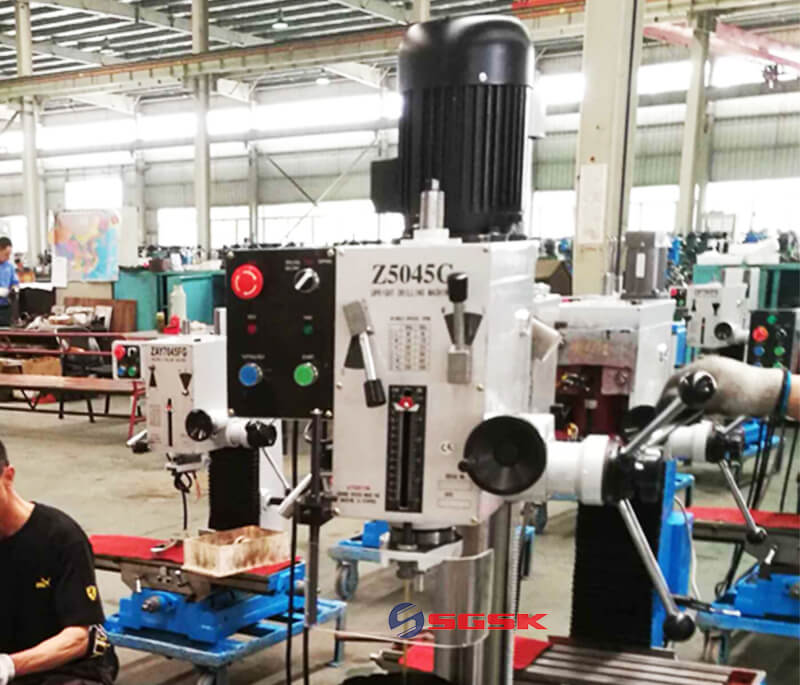

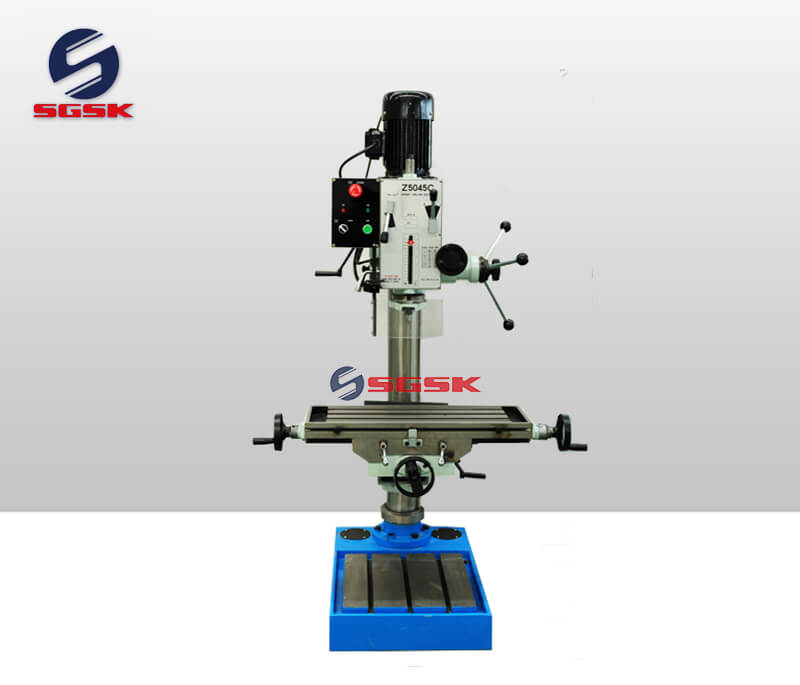

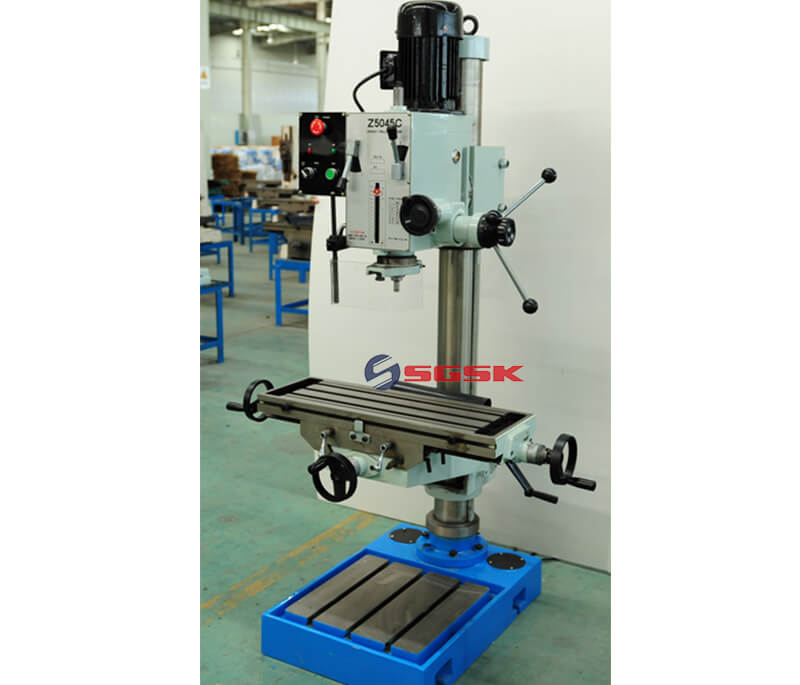

Z5032C Z5040C Z5045C Vertical Drilling Machine

Inquire Now Next Product

Product Main Technical Parameters

ITEM		Z5032C	Z5040C	Z5045C
Max.drilling capacity		32mm	40mm	45mm
Spindle taper		M.T.3 or R8	M.T.4	M.T.4
Spindle travel		130mm	130mm	130mm
Step of spindle speed		6	6	6
Range of spindle speed	50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
Range of spindle speed	60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column		283mm	283mm	283mm
Max.distance from spindle nose toworktable		700mm	700mm	700mm
Max.distance from spindle nose to stand table		1125mm	1125mm	1125mm
Max.travel of headstock		250mm	250mm	250mm
Swivel angle of headstock(horizontal/perpendicular)		360°/±90°	360°/±90°	360°/±90°
Max.travel of worktable bracket		600mm	600mm	600mm

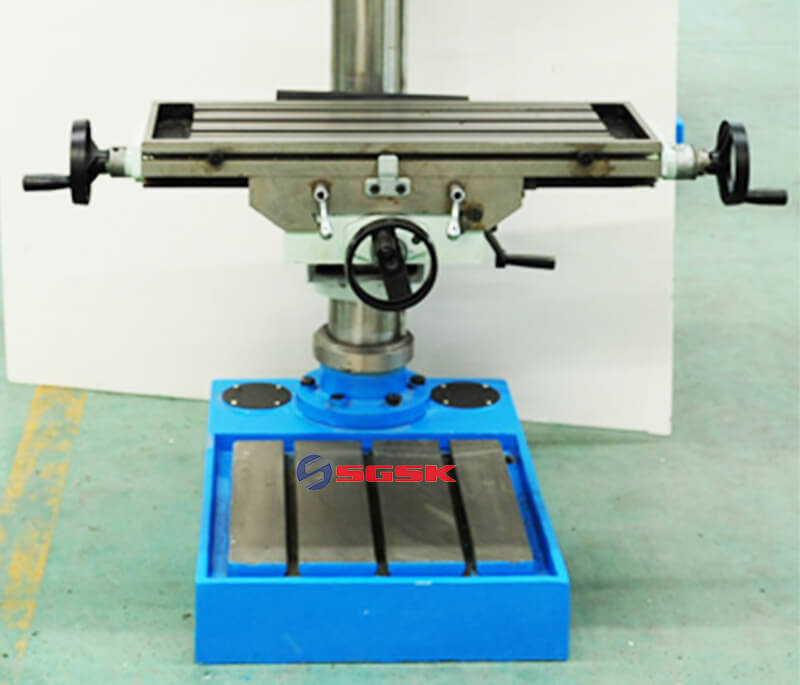

Table size		730×210mm	730×210mm	730×210mm
Size of stand worktable of avaliability		417×416mm	417×416mm	417×416mm
Forward and afterward travel of worktable		205mm	205mm	205mm
Left and right travle of worktable		500mm	500mm	500mm
Vertical travel of worktable		570mm	570mm	570mm
Motor Power		1.1kw	1.1kw	1.5kw
speed of motor		1400rpm	1400rpm	1400rpm
Net weight/Gross weight		430/500kg	432/502kg	435/505kg
Packing size		1850x750x1000mm	1850x750x1000mm	1850x750x1000mm
