Product Main Technical Parameters

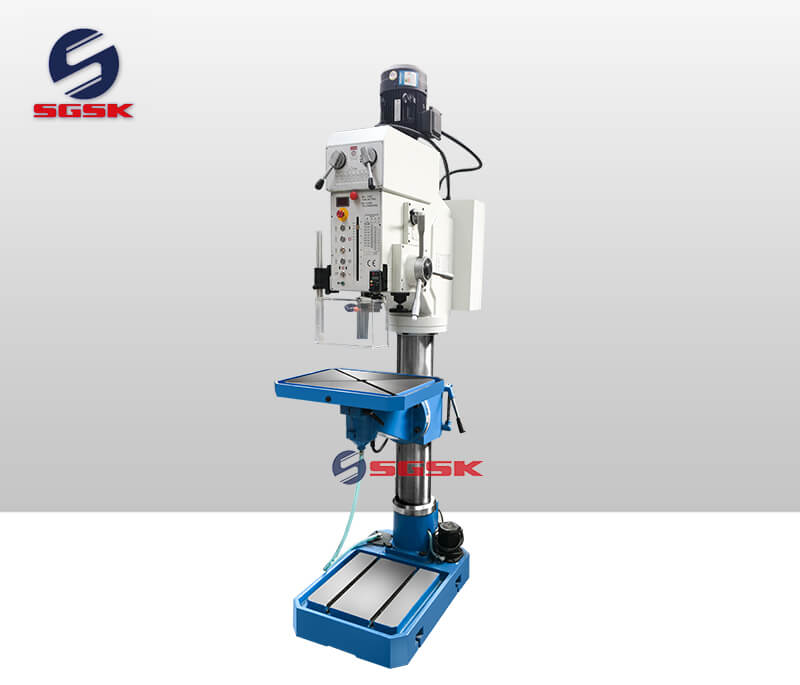

Model | unit | Z5035A |
Max. drilling capacity | Mm | 35 |
Max. tapping capacity | Mm | M22 |
Distance spindle axis to column surface | Mm | 590 |
Max. distance spindle nose to base | Mm | 1150 |
Max. spindle travel | Mm | 155 |
Spindle taper | MT4 | |
Number of speed step of the spindle | Step | 12 |
Spindle speed range | r/mm | 125-3030 |
Feed steps of the spindle | degree | 3 |
Feed range of the spindle | Mm/r | 0.1,0.2,0.3 |
Max. stroke of the worktable and its bracket | Mm | 530 |
Rotation degree of worktable and its bracket in cross direction | Degree | ±45° |

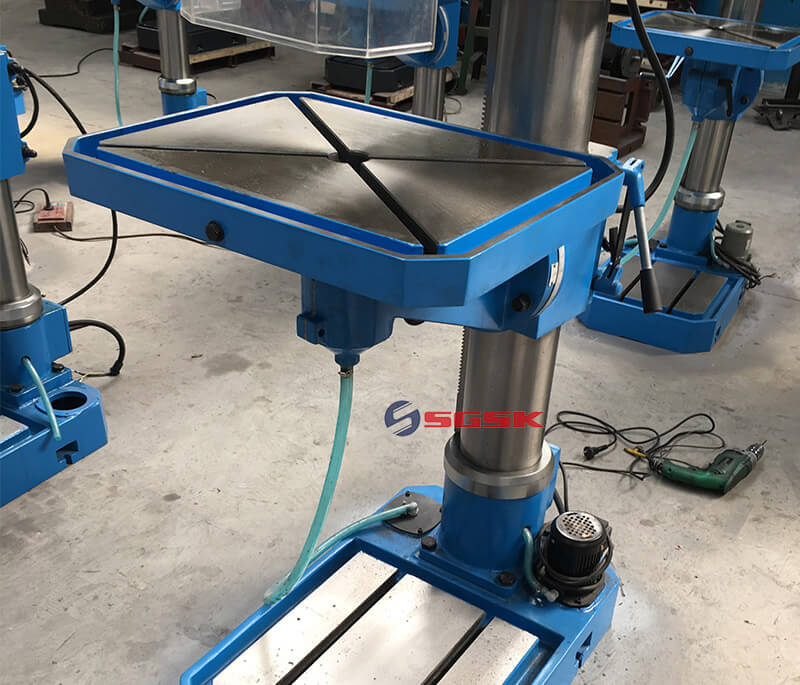

Working area of the worktable | Mm | 500*420 |
Dia. of colun | mm | 120 |
Main motor power | KW | 1.0 |
Max. external dimension | Mm | 875*510*2140 |
N.W | Kg | 430 |
