Product Main Technical Parameters

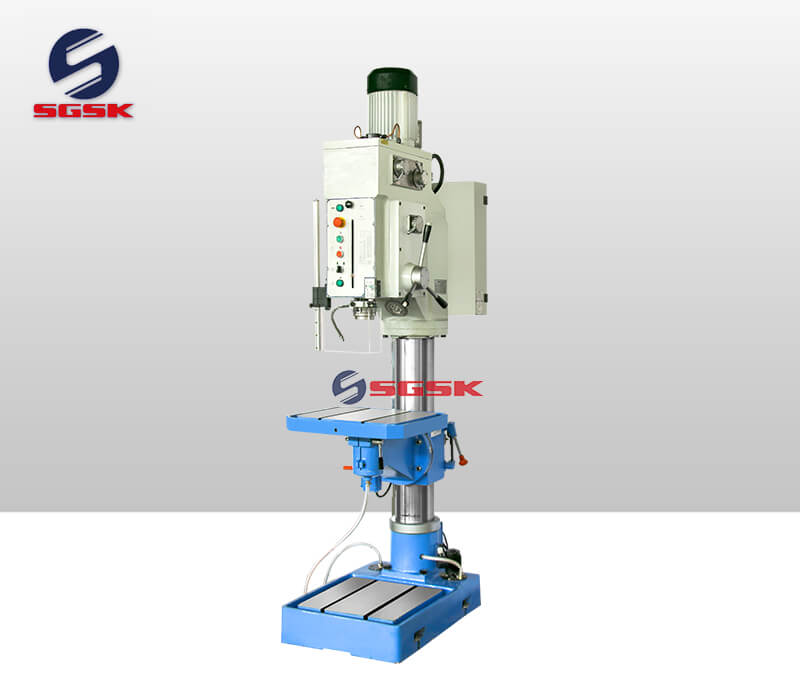

Vertical Drilling Machine Main Performance Characteristics:
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.

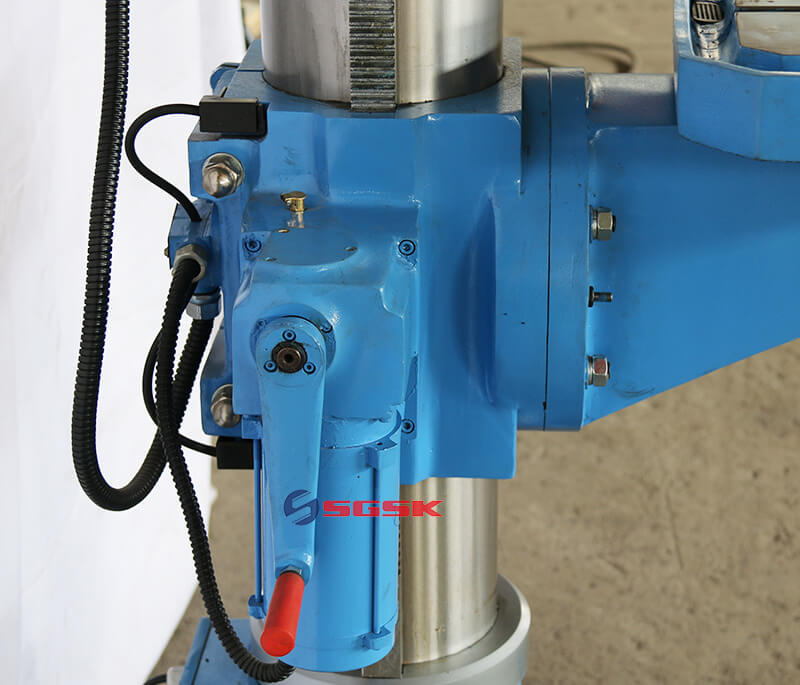

2 .Unique working table, electric and manual lifting mechanism, easy to operate.

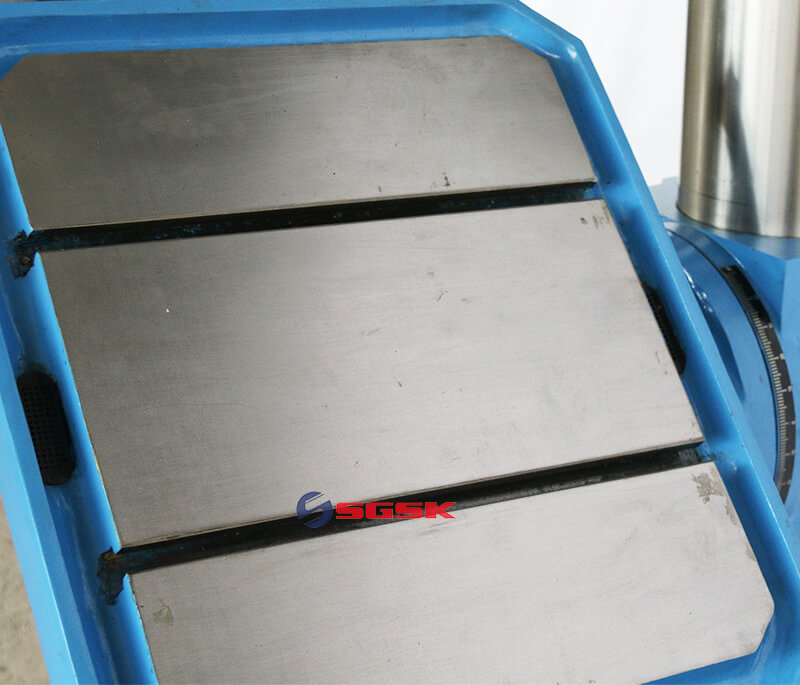

3. The table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.

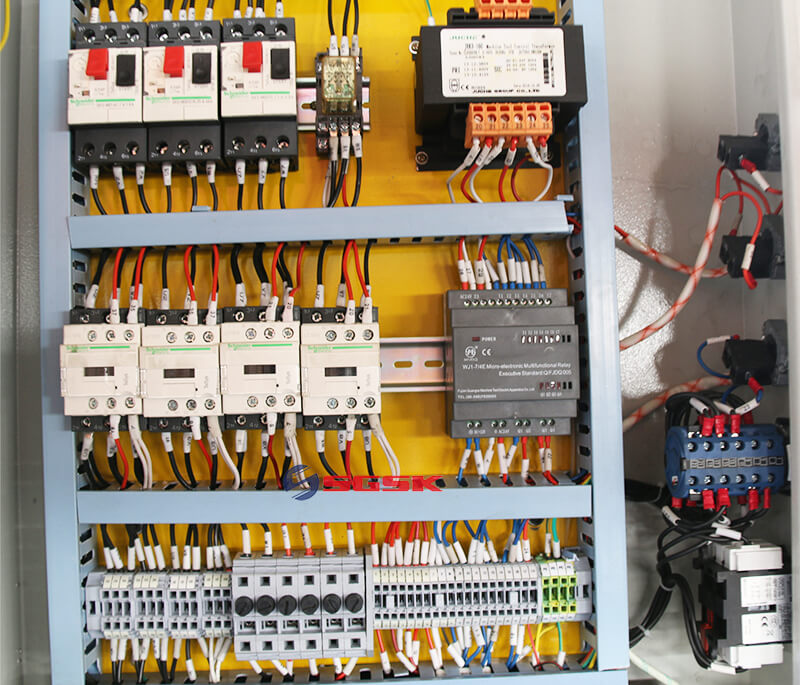

5 .Electrical system to implement the IEC electrical standards, with a short circuit and overload protection function, the main motor power large.
6 .Unique protective devices, safe and reliable.
Vertical Drilling Machine Application:
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Vertical Drilling Machine Main Technical Specifications:
Specifications | Units | Z5040 | Z5050 |
Max. Drilling capacity | mm | 40 | 50 |
Max. Tapping capacity | mm | M27 | M30 |
Diameter of column | mm | 160 | 180 |
Spindle travel | mm | 180 | 240 |
Distance spindle axis to column generating line | mm | 360 | 360 |
Max. spindle nose to table | mm | 590 | 570 |
Max. spindle nose to base | mm | 1180 | 1160 |
Spindle taper | MT4 | MT4 or MT5 | |
Spindle speeds range | r/min | 42-2050 | 42-2050 |
Spindle speeds series | 12 | 12 | |
Spindle feeds | mm/r | 0.07 0.15 0.26 0.40 | 0.07 0.15 0.26 0.40 |
Dimension of worktable surface | mm | 550x470 | 550x440 |
Table travel | mm | 550 | 550 |
Dimension of base table | mm | 450x440 | 450x440 |
Overall height | mm | 2330 | 2380 |
Spindle motor power | K w | 2.2/2.8 | 2.2/2.8 |
Coolant motor | w | 40 | 40 |
G.W/N.W | kg | 815/755 | 1045/985 |
Packing dimension | cm | 108x62x245 | 108x62x245 |
