Product Model:

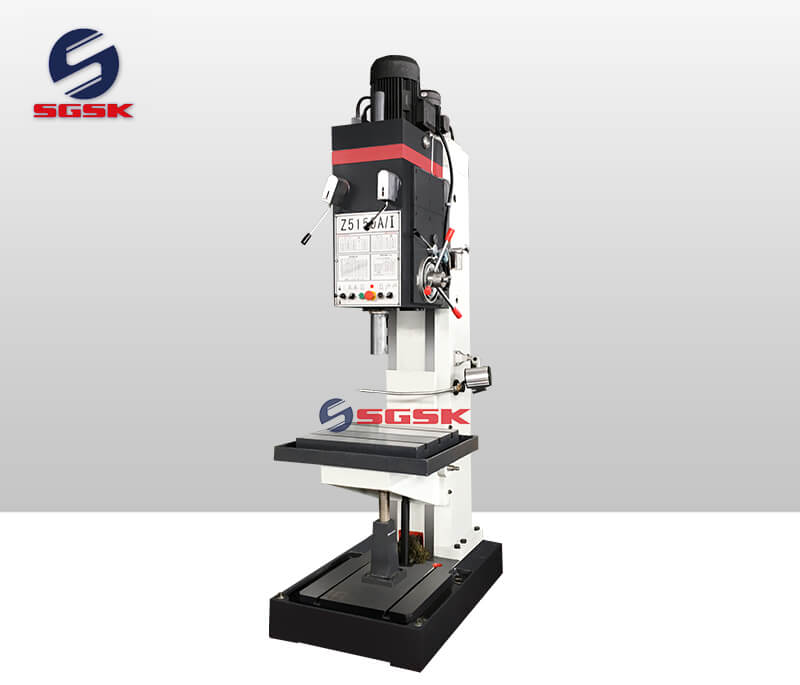

Z5140 Z5150 Vertical Drilling Machine

Product Main Technical Parameters

Vertical Drilling Machine Description:

1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..

2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.



Vertical Drilling Machine Main Technical Specifications:

SpecificationsZ5140Z5150
Max drilling dia40mm50mm
Spindle taperMT4MT5
Spindle stroke250mm250mm
Headstock travel(manual)200mm200mm
Spindle speeds31.5-1400r/min 12 steps31.5-1400r/min 12 steps
Feed range0.056-1.80mm/r 9 steps0.056-1.80mm/r 9 steps

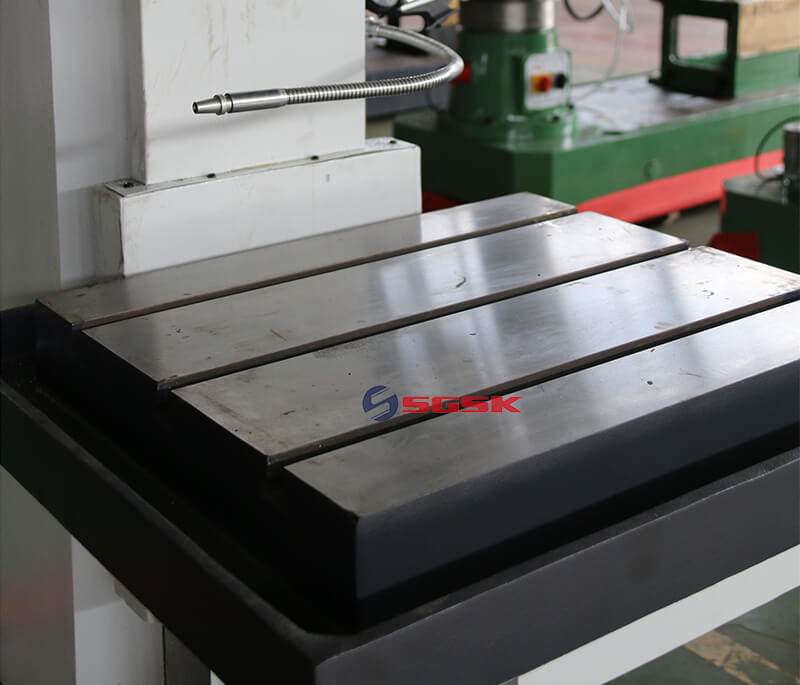

Table size560x480mm560x480mm
Table vertical travel300mm300mm
Max.distance spindle nose to table750mm750mm
Main motor power3kw3kw
Overall dimension1090*905*2465mm1090*905*2465mm
N/W1300kg1350kg
