Product Model：

Z5180 Z51100 Vertical Drilling Machine

Inquire Now Next Product

Product Main Technical Parameters

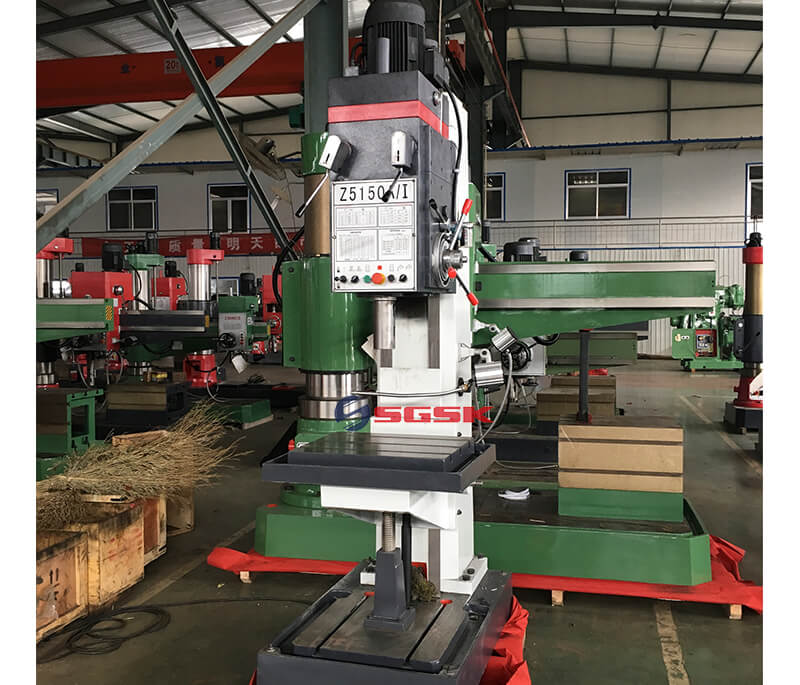

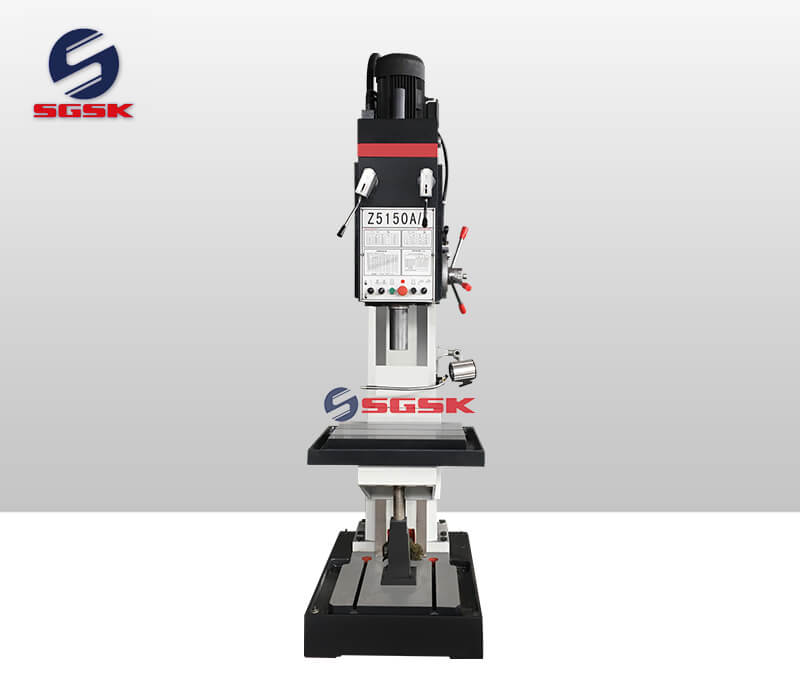

Vertical Drilling Machine Description:

1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..

2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.

Vertical Drilling Machine Main Technical Specifications:

Specifications	Z5180	Z51100
Max drilling diameter	80mm	100mm
Max feed resistance	30000N	45000N
Max. spindle allowable torque	1000N.m	1150N.m
Spindle taper	Morse NO.6	Morse NO.6
Distance from spindle axis to column guideway	375mm	480mm
Spindle travel	250mm	310mm
Spindle box travel	250mm	300mm
Spindle speed	40-570r/min 9 steps	26-320r/min (6)
The amount of feed(mm/rev)	0.1-0.78 6 steps	0.096-0.717r/min (6)
Working table stroke	300mm	300mm
Working table surface size	650×550mm	760×650mm
Distance from spindle nose to table surface	800mm	850mm
Main motor power	5.5kw	7.5kw
Cooling pump flow	25L/min	25L/min
Overall dimension	1452×965×2787mm	1465×970×3170mm
N/W	3200kg	3500kg
