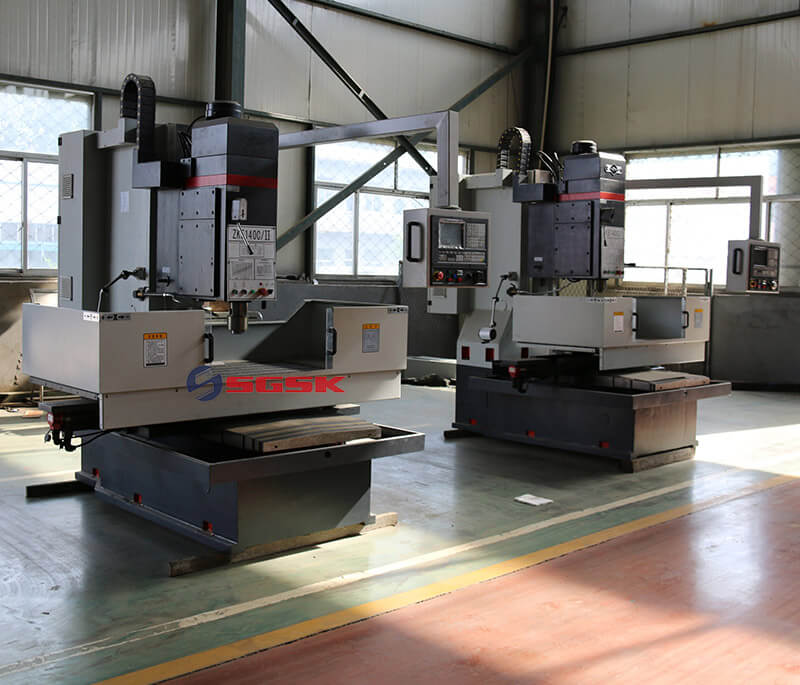

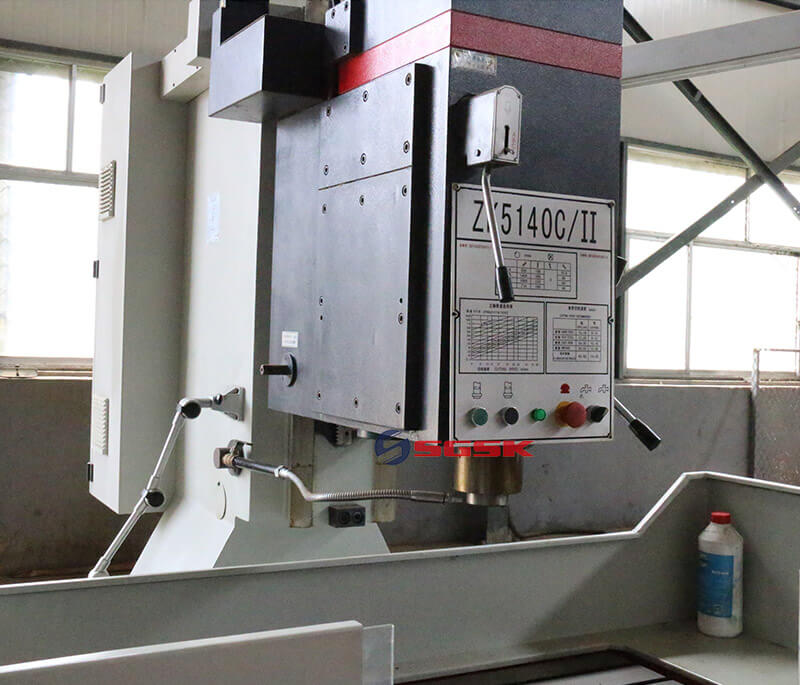

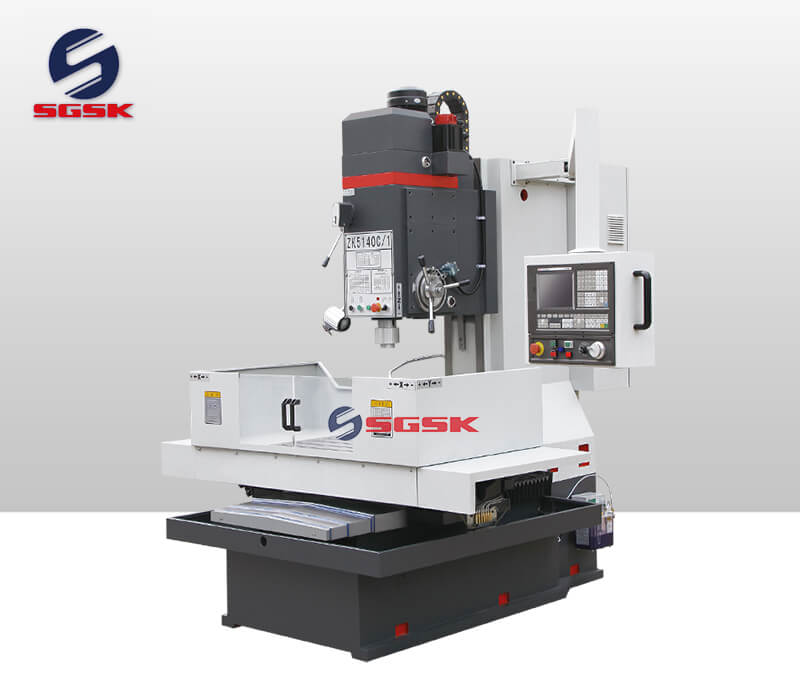

ZK51 CNC Vertical Drilling Machine

Inquire Now Next Product

Product Main Technical Parameters

Main TechnicalSpecifications		Unit	ZK5140C	ZK5150C	ZK5140C/1	ZK5150C/1	ZK5140C/2	ZK5150C/2		ZK5140C/3	ZK5150C/3	ZK5140C/5		ZK5150C/5
Max. drilling diameter		mm	40	50	40	50	40	50		40	50	40		50
Max. Feed resistance		N	16000	20000	16000	20000	16000	20000		16000	20000	16000		20000
Max. Torque of spindle		Nm	350	400	350	400	350	400		350	400	350		400
Spindle taper		Morse	4	5	4	5	4	5		4	5	4		5
Main motor power		kw	3		3		3			4		4
Range of spindle speed		r/min	31.5-1400		31.5-1400		31.5-1400			31.5-1400		31.5-1400(stepless)
Feed range	X.Y axis	mm/min	0.6-3000		0.6-3000		0.6-3000			0.6-3000		0.6-3000
			0.3-2000		0.3-2000		0.3-2000			0.3-2000		0.3-2000
	Rapid feed Z axis	mm/min	6000(9000)		6000(9000)		6000(9000)			6000(9000)		6000(9000)
			3000(4500)		3000(4500)		3000(4500)			3000(4500)		3000(4500)
Spindle box stroke		mm	470		470		470			470		470
The axis of travel	Table X-axis	mm	600		600		1000			850		1200
	Table Y-axis	mm	400		600		600			800		800
	Spindle Z-axis	mm	250		250		250			250		250
Distance between spindle nose to worktable		mm	0-600	0-560	0-600	0-560	0-600		0-560	180-900	90-810	180-900			90-810

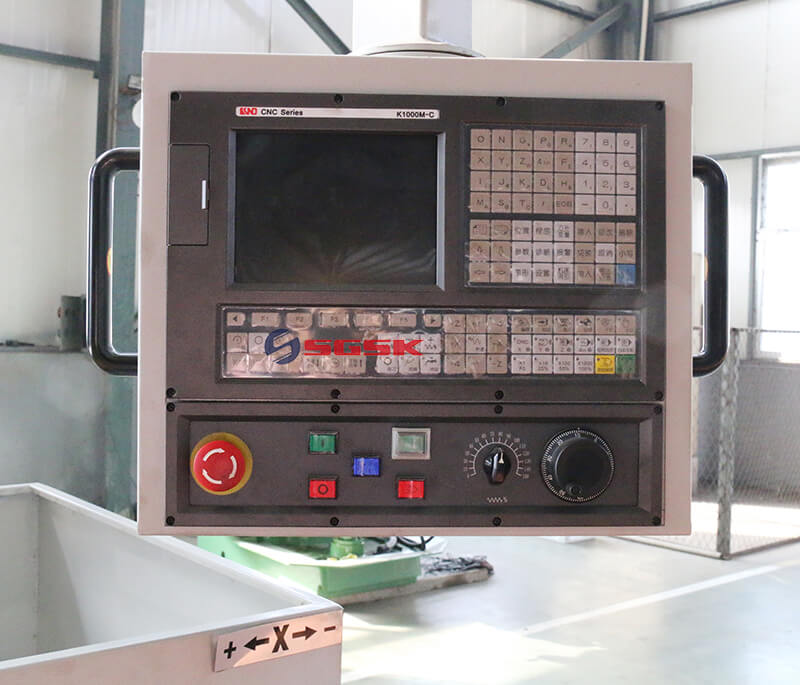

Control method		mm	Microcomputer three-axis control, X,Y-coordinate linkage

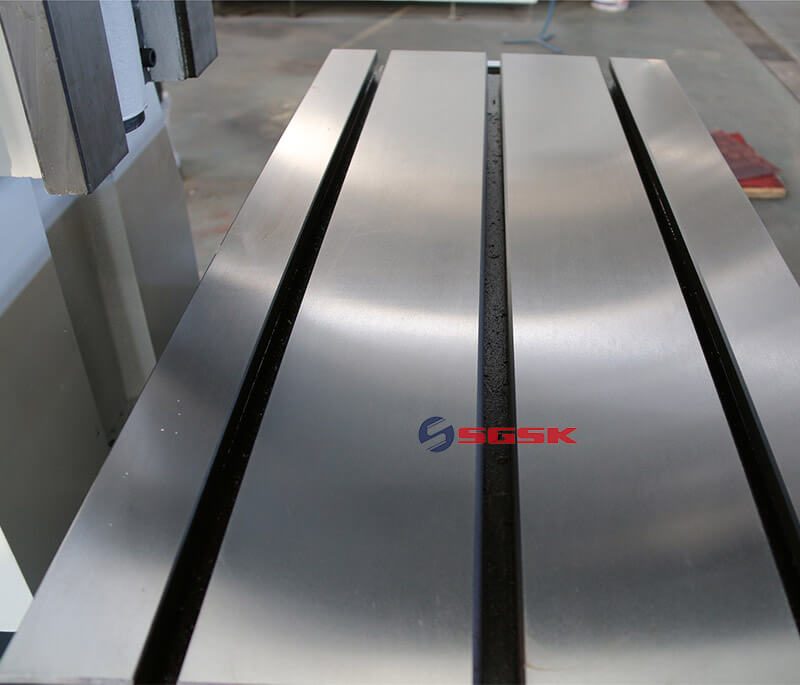

Size of worktable (L*W )		mm	850×450		850×650		1250×650			1100x850			1450x850
Positioning accuracy(X and Y)		mm	0.05(0.04)		0.05(0.04)		0.05(0.04)			0.05(0.04)			0.05(0.04)
Repeat positioningaccuracy (X and Y)		mm	0.02(0.015)		0.02(0.015)		0.02(0.015)			0.02(0.015)			0.02(0.015)
Dimensions (LWH)		mm	1550×1530×2512		1550×1740×2512		1800×1854×2512			1700x2482x2885			2000x2482x2885
