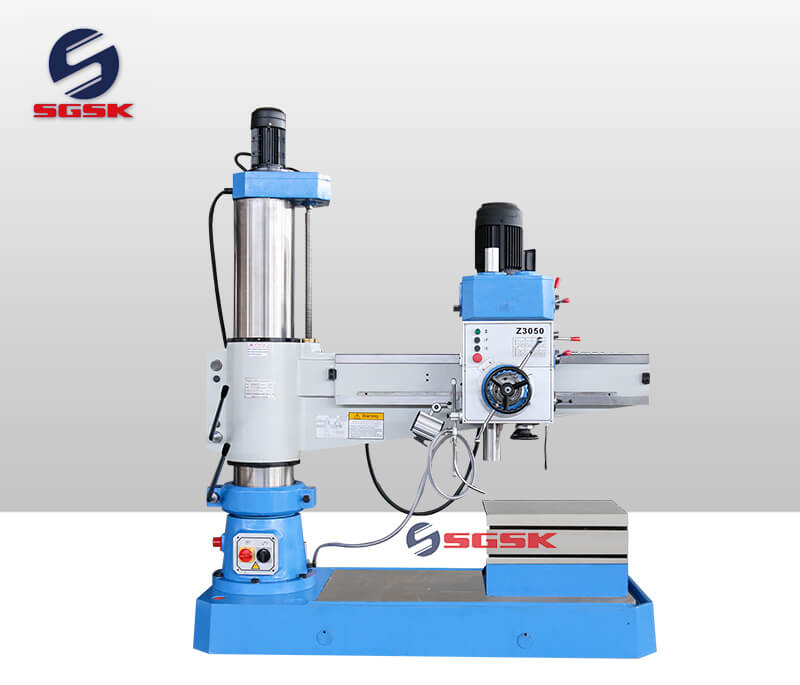

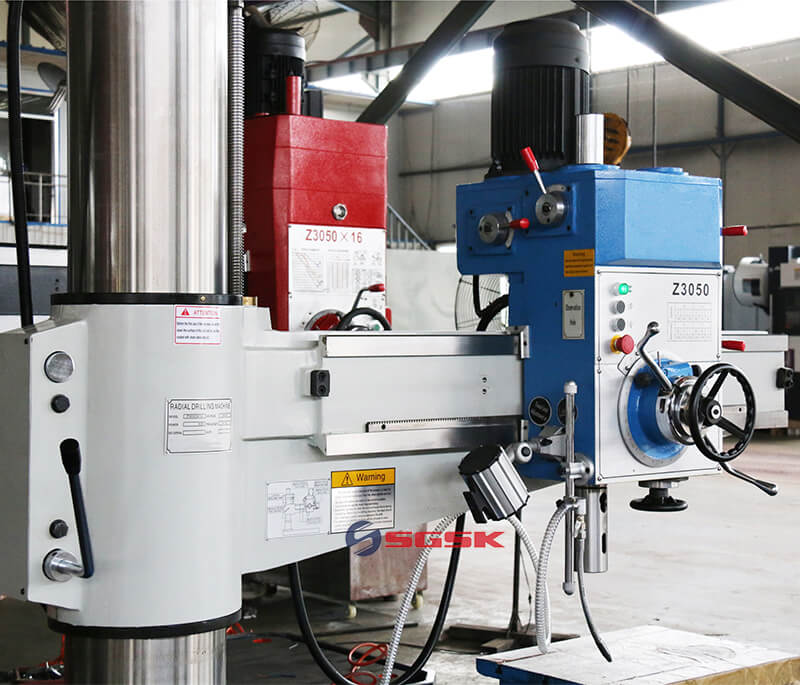

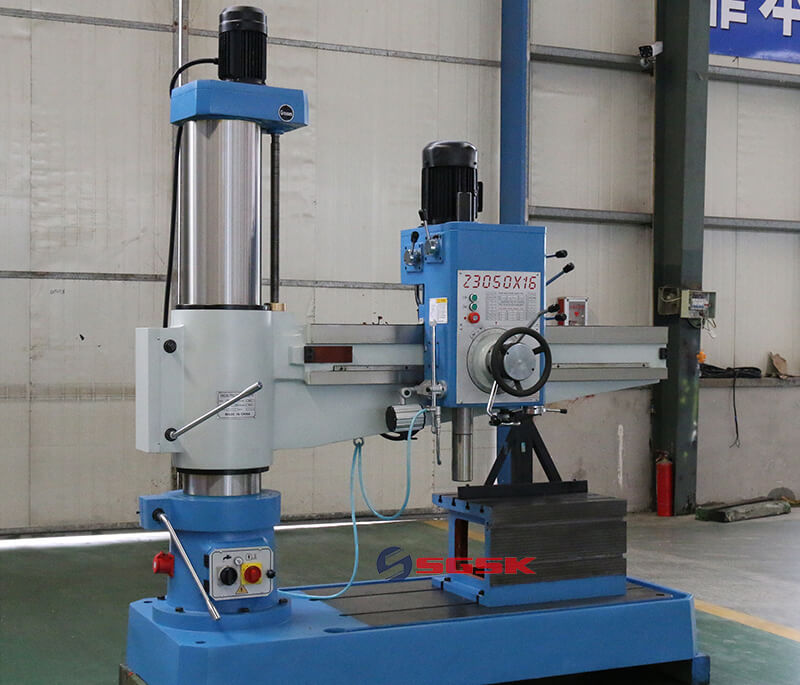

Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Radial Drilling Machine Main Technical Parameters
| SPECIFICATIONS | ZQ3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle axis and column surface(mm) | 260-1150 |
| Distance between spindle axis and column surface (mm) | 360-1600 |
| Spindle travel (mm) | 210 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 78, 135,240,350,590,1100 |
| Spindle speed step | 6 |
| Spindle feeding range(r.p.m) | 0.10-0.56 |
| Spindle feeding step | 6 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2500 |
| Overall dimensions (mm) | 2170×950×2450 |
