Product Main Technical Parameters

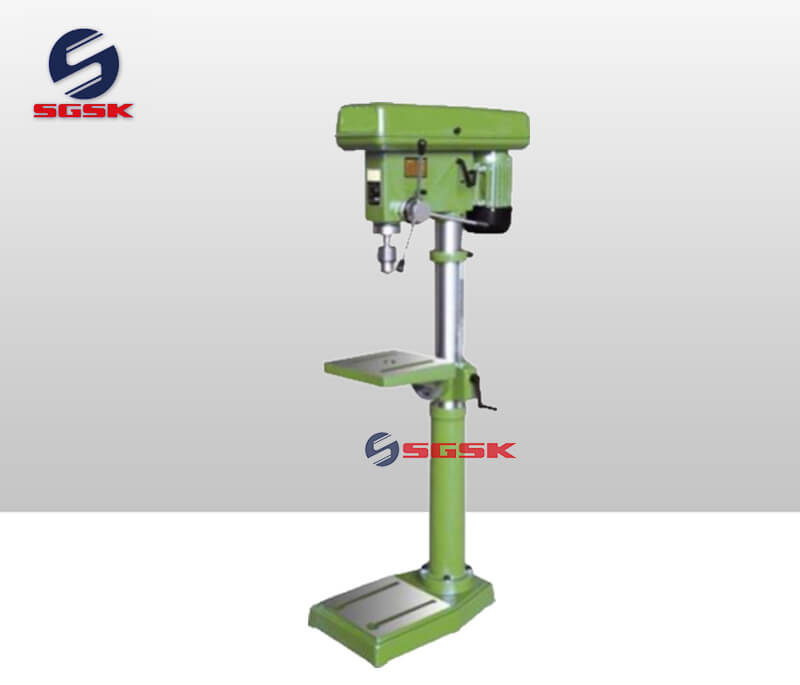

Bench Drilling Machine Description:
Light and flexible ,it can be used not only on machine processing,repairing but also DIY repairing and daily use.
Bench Drilling Machine Main Technical Specifications：
| Model | ZQ4113 | ZQ4116/ZQ4119 | ZQ4125/ZQ4132 | ZQD4125/ZQD4132 |
| Max. Drilling capacity(mm) | 13 | 16/19 | 25/31.5 | 25/31.5 |
| Diameter of column(mm) | 70 | 70 | 85 | 85 |
| Spindle travel(mm) | 85 | 85 | 110 | 110 |
| Distance spindle axis to generating line (mm) | 180 | 180 | 200 | 200 |
| Max distance spindle nose to worktable(mm) | 390 | 410 | 480 | 390 |
| Max. Distance spindle nose to base(mm) | 570 | 590 | 670 | 1140 |
| Spindle taper(mm) | B16 | MT2 | Mt3 | Mt3 |
| Spindle speeds range(r/min) | 450-2650 | 200-2780 | 200-2280/150-2270 | 200-2280/150-2270 |
| Spindle speeds series(r/min) | 4 | 12 | 9/12 | 9/12 |
| Dimension of worktable surface(mm) | 240X240 or Φ300 | 240×240 or Φ300 | 280×280 or Φ360 | 280×280 or Φ360 |
| Dimension of base(mm) | 445x270 | 445×270 | 566x356 | 566x356 |
| Overall height(mm) | 960 | 960 | 1110 | 1680 |
| Motor(W) | 370 | 370/550 | 750 | 750 |
| G.W/N.W(kg) | 68/65 | 68/65 | 105/98 | 115/108 |
| Packing size(cm) | 91x51.5x27 | 91×51.5×27 | 108x77x34 | 108x77x34 |
| Standard accessories | Special accessories |
Drill chuck, Taper sleeve(only MT3 spindle), Arbor(only taper hole spindle), Drift(only taper hole spindle), Wrench | Safety guard, Vice |
