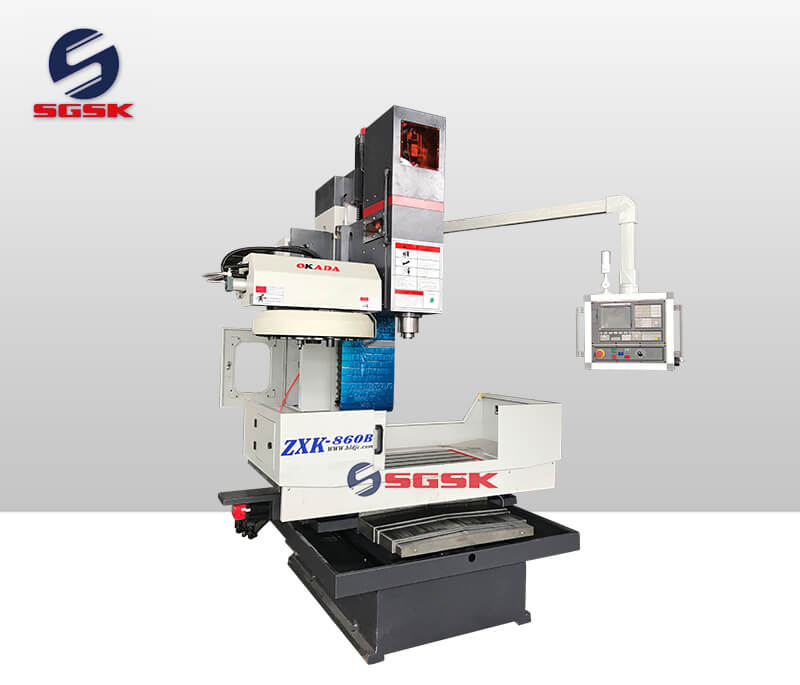

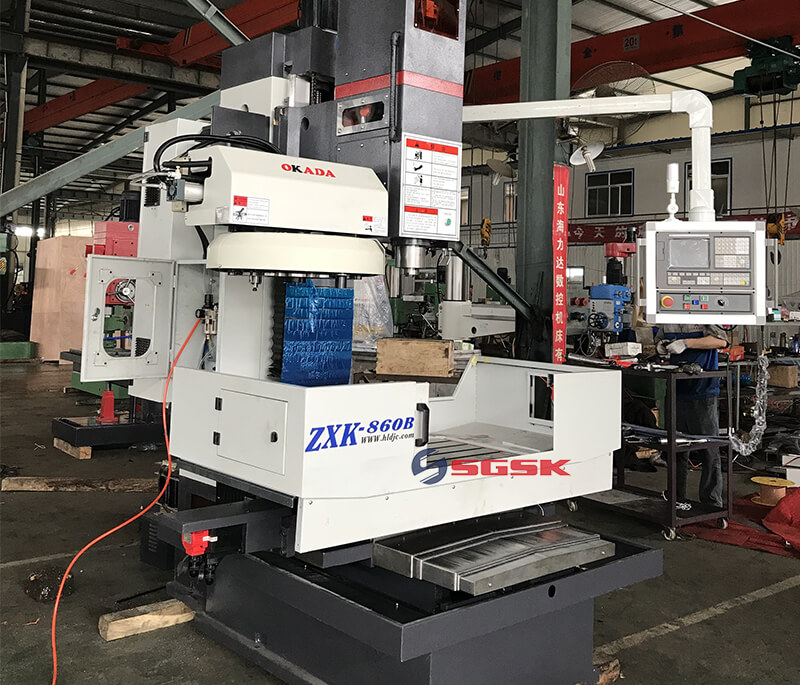

Product Model:
Product Main Technical Parameters
Specifications | unit | ZXK840B | ZXK860B | ZXK1060B | ZXK1280B |
Max drilling diamater | mm | Φ50 | Φ50 | Φ50 | Φ50 |
Max. torque | Nm | 320 | 320 | 320 | 320 |
Max resistance | N | 16000 | 16000 | 16000 | 16000 |
X/Y/Z axis stroke | mm | 850x400x600 | 850x600x600 | 1000x600x600 | 1200x800x600 |

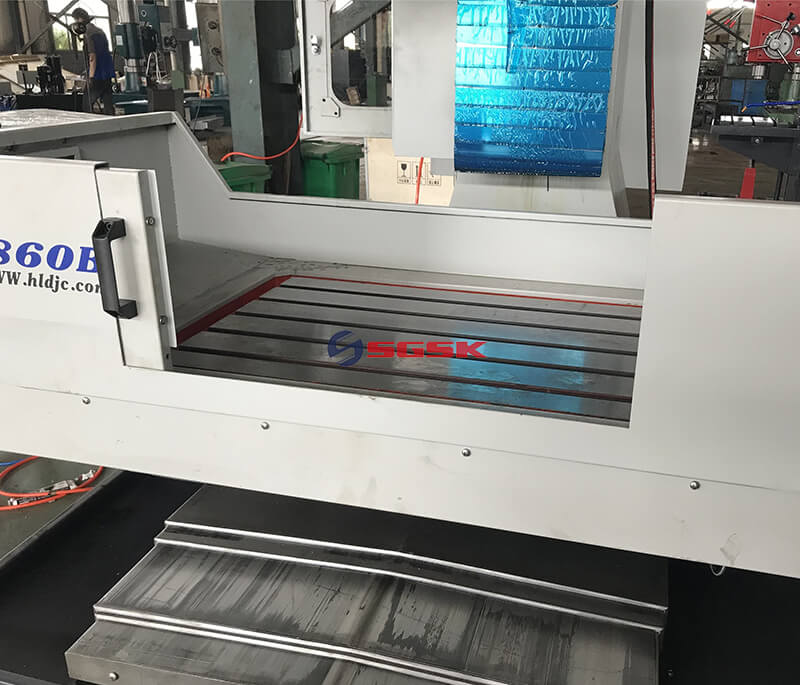

Worktable size | mm | 850x400 | 850x550 | 1000x550 | 1400x900 |
Distance from worktable surface to the ground | mm | 775 | 775 | 775 | 775 |
T slot(number-width-pitch | Mm | 3-18-140 | 5-18-100 | 5-18-100 | 5-18-100 |
Distance from spindle nose to worktable surface | Mm | 180-780 | 180-780 | 180-780 | 245-845 |
Distance from spindle center to column surface | mm | 435 | 640 | 640 | 800 |
Max. load capacity | Kg | 250 | 500 | 500 | 400 |
Fast moving speed | m/min | 15/10 | 15/10 | 15/10 | 15/10 |
Machining feed speed | Mm/min | 1600 | 1600 | 1600 | 1600 |

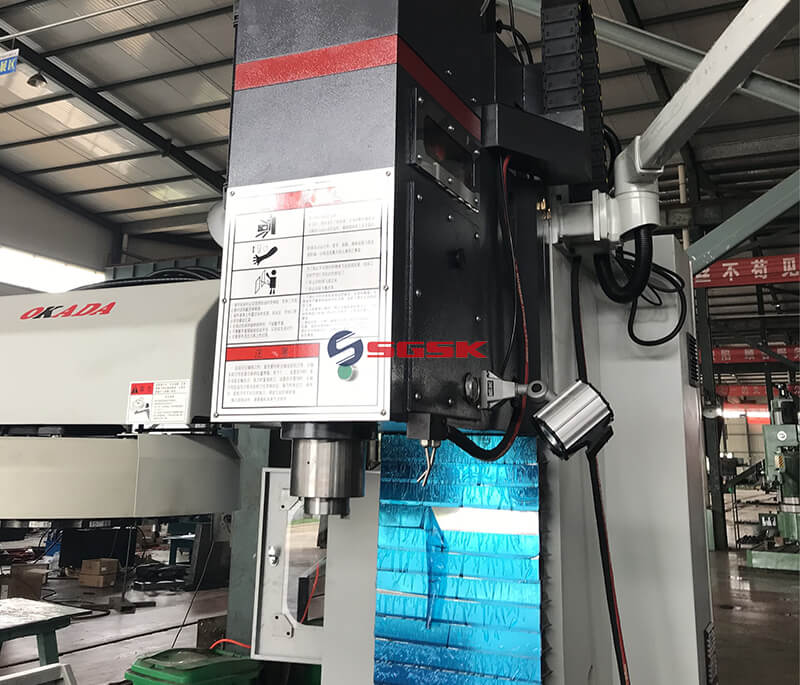

Spindle taper | BT40 | BT40 | BT40 | BT40 | |
Spindle speed | rpm | 30-2000 | 30-2000 | 30-2000 | 30-2000 |
Spindle motor | Kw | 3.7/5.5 | 5.5/7.5 | 5.5/7.5 | 3.7/5.5 |

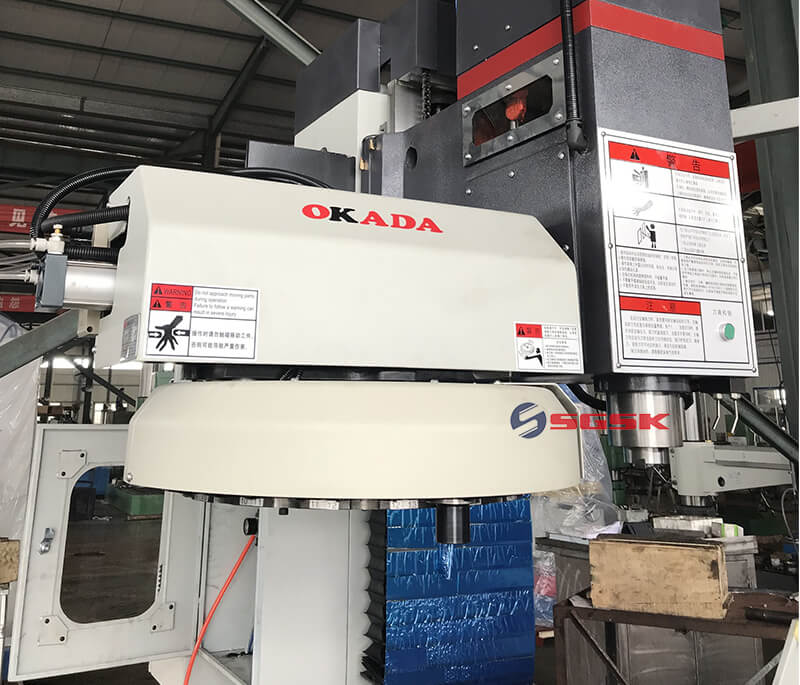

Tool magazine | 16 armless | 16 armless | 16 armless | 16 armless | |
Control system | Mitsubishi:M70A/M70B, FANUC 0I MF, Syntec 21M, KND, GSK controller | ||||
Machine Weight | Kg | 3500 | 4500 | 4500 | 4500 |
