Product Main Technical Parameters

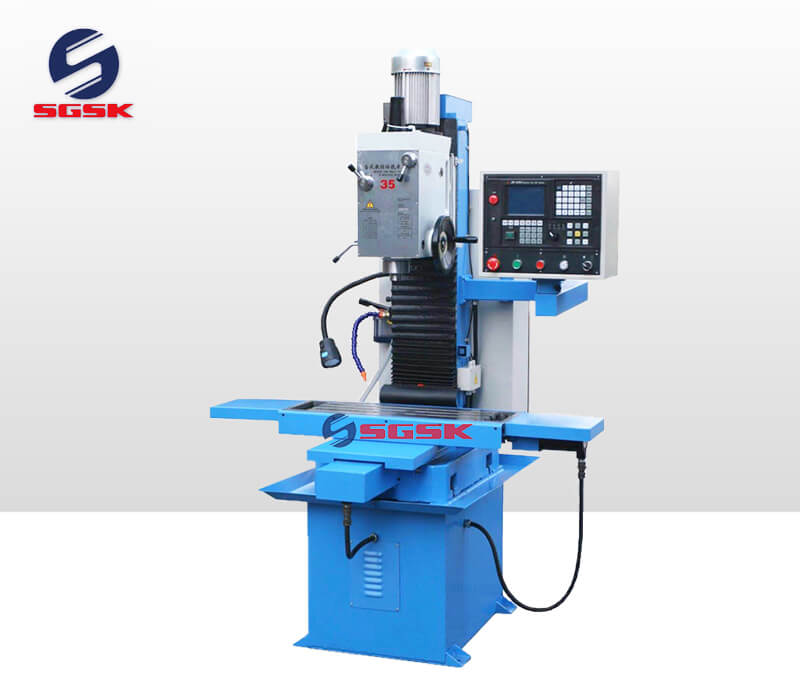

MODEL | ZXK7035 CNC |
CAPACITY | |
Drilling capacity(max.) | Ø35mm |
Milling capacity end mill cutter(max.) | Ø20mm |
Milling capacity cutter head(max.) | Ø60mm |
ACCURACY | |
Repeating accuracy | 0.03mm |
Positioning accuracy | 0.05mm |
SPINDLE | |
Spindle taper | MT4 |
Spindle speed | 60-1160rpm |
Spindle speed steps | 6 |
Distance spindle-column | 290mm |
SPINDLE HOLEING FIXTURE | |
Z-axis travel | 480mm |
Rate of feed/Torque motor Z-axis | 7500mm/min |
CROSS TABLE | |
Table (L×W) | 800×240mm |
Table load | 80kg |
Z-axis travel of table | / |
Y-axis travel | 220mm |
Rate of feed/Torque motor Y-axis | 7500mm/min |
X-axis travel | 450mm |
Rate of feed/Torque motor X-axis | 7500mm/min |
T-slot | 14mm/50mm/3 |
Distance spindle-cross table(max.) | 560mm |
ELECTRIC SUPPLY | |
Motor | 2.2kW |
Motor coolant pump | 40W |
DIMENSION AND WEIGHT | |
Overall dimension (L×W×H) | 1228×1115×2150mm |
Packing size (L×W×H) | 1390×1270×2060mm |
Shelf and cover packing (L×W×H) | / |
Net weight/Gross weight | 500kg |
