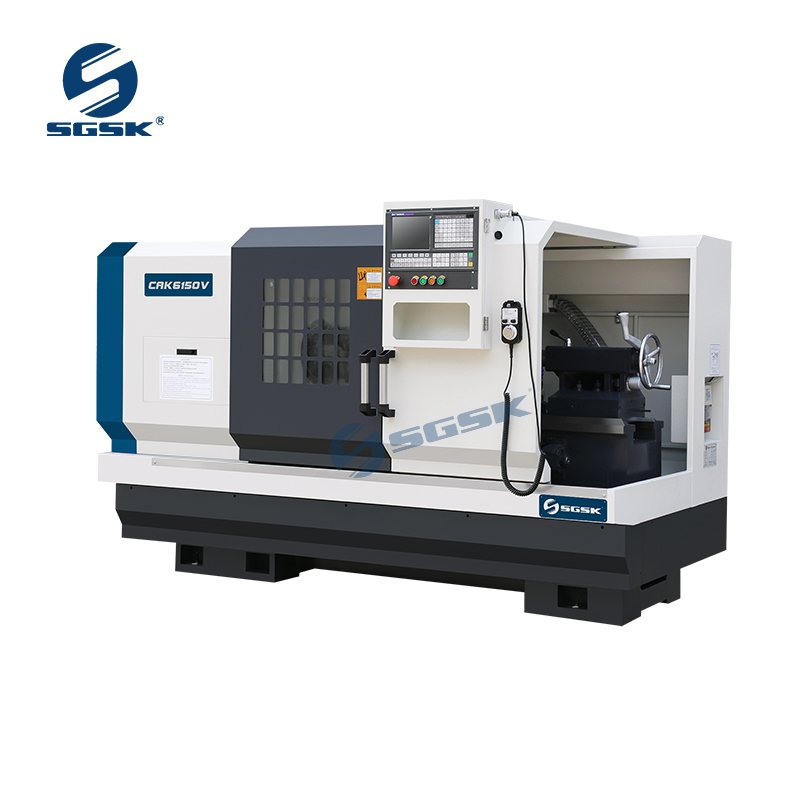

Product Main Technical Parameters
SPECIFICATIONS | Units | CAK6140V | CAK6150V | CAK6160V |
Swing over bed | mm | 400 | 500 | 600 |
Swing over cross slide | mm | 180 | 250 | 395 |
Distance between centers | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
Spindle bore | mm | 82 (选配Opt. 130) | 82 (选配Opt. 130) | 82 (选配Opt. 130) |
Spindle bore taper | - | 公制Metric 90/1:20 | 公制Metric 90/1:20 | 公制Metric 90/1:20 |
Spindle nose type | - | A2-8(选配Opt.A2-11) | A2-8(选配Opt.A2-11) | A2-8(选配Opt.A2-11) |
Spindle speed steps | - | 无级变速Stepless | 无级变速Stepless | 无级变速Stepless |
Spindle speed range | rpm | 1800 (选配Opt. 800) | 1800 (选配Opt. 800) | 1800 (选配Opt. 800) |
Turret/tool post | - | 4工位电动刀架 Electric 4 position | 4工位电动刀架 Electric 4 position | 4工位电动刀架 Electric 4 position |
Tool size | mm | 25*25 | 25*25 | 25*25 |
X axis travel | mm | 240 | 280 | 320 |
Z axis travel | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 |
Tailstock quill diameter | mm | 75 | 75 | 75 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Main motor power | kw | 7.5 | 7.5 | 7.5(选配Opt.11) |
Coolant motor power | kw | 0.125 | 0.125 | 0.125 |
Weight for 1000 | kg | 2500 | 2900 | 3200 |
Weight for 1500 | kg | 2900 | 3300 | 3500 |
Weight for 2000 | kg | 3300 | 3700 | 4000 |
Dimension for 1000 | mm | 2950*1700*1800 | 2950*1700*1800 | 2950*1800*1900 |
Dimension for 1500 | mm | 3650*1700*1800 | 3650*1700*1800 | 3650*1800*1900 |
Dimension for 2000 | mm | 4250*1700*1800 | 4250*1700*1800 | 4250*1800*1900 |
