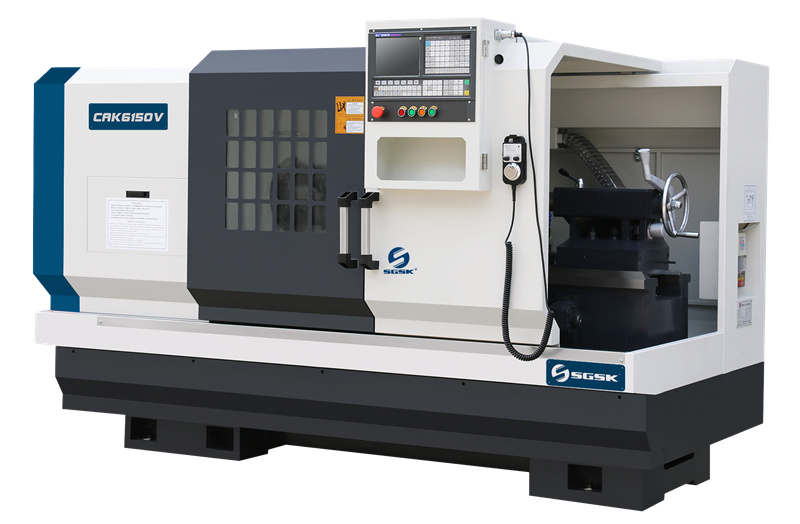

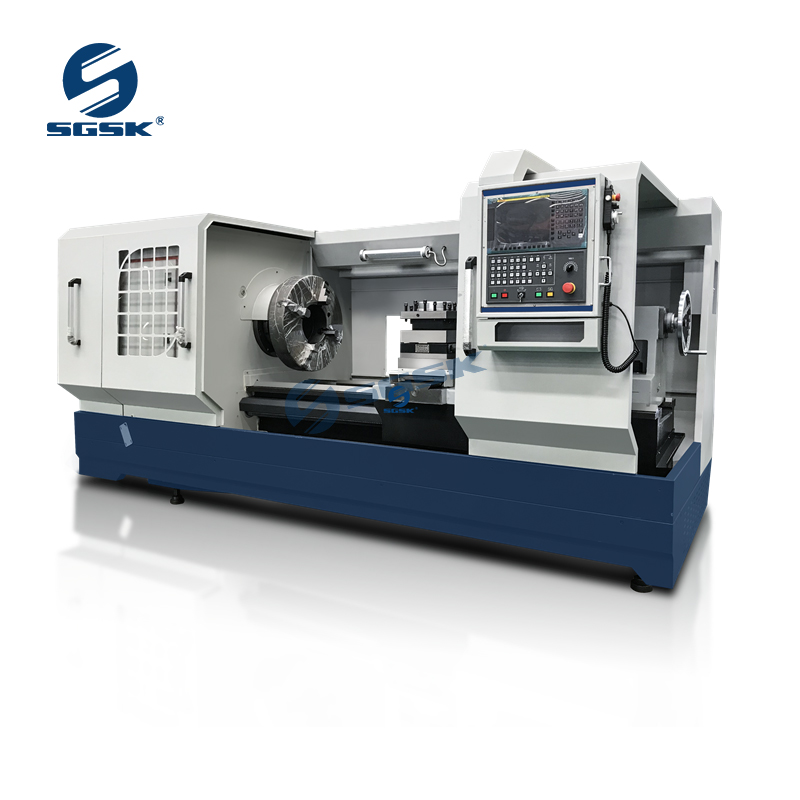

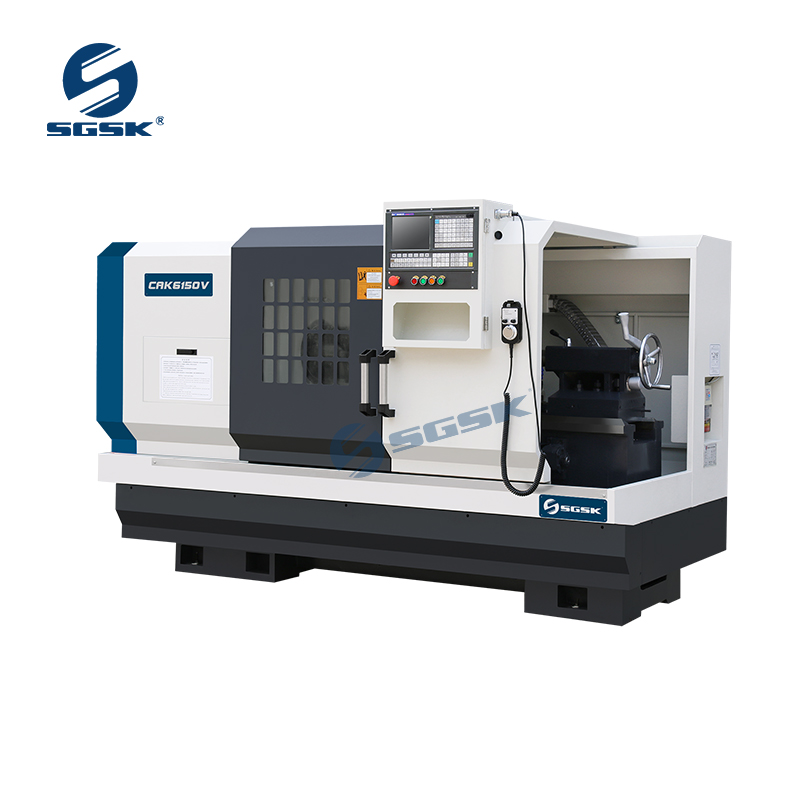

CAK6160V CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Lathe Machine Application：

Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,

inch and other standards.

CNC Lathe Machine Features：

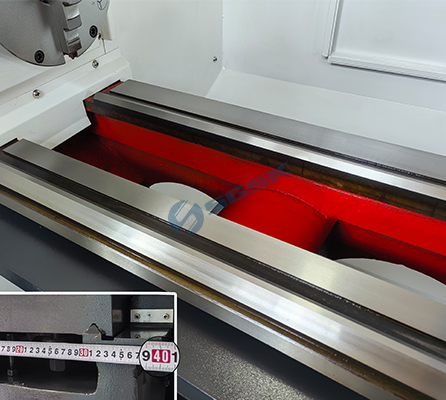

1. A high strength ,widening the carriage ,suitable for heavy cutting

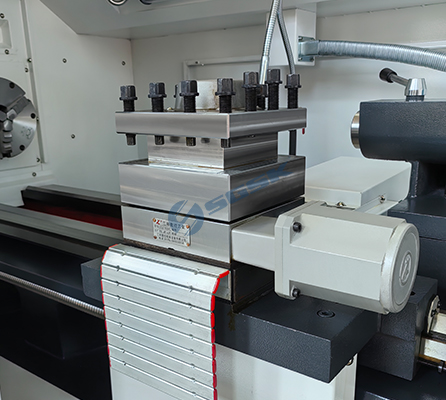

2.Four station electric tool post

3. Frequency conversion stepless speed regulation

4. Standard configuration: manual chuck

5. Optional configuration: hydraulic chuck

CNC Lathe Machine Main Technical Specifications:

SPECIFICATIONS	Units	CAK6160V
Swing over bed	mm	600
Swing over cross slide	mm	395
Distance between centers	mm	1000/1500/2000
Spindle bore	mm	82 (Optional 130)
Spindle bore taper	-	Metric φ90/1:20
Spindle nose type	-	A2-8(A2-11)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	1800 (Optional 800)
Turret/tool post	-	Electric 4 position
Tool size	mm	25 x 25
X axis travel	mm	300
Z axis travel	mm	1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	10000

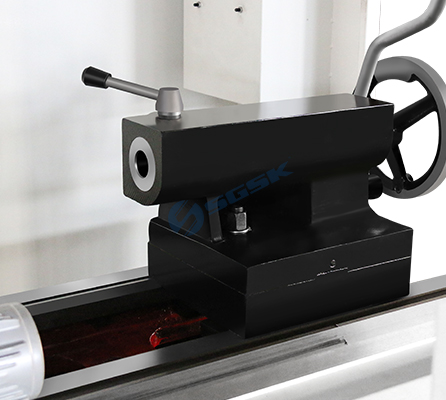

Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	200
Main spindle motor	kw	7.5/11
Coolant pump motor	kw	0.125
Weight for 1000	kg	3200
Weight for 1500	kg	3500
Weight for 2000	kg	4000
Dimension for 1000	mm	2950x1800x1900
Dimension for 1500	mm	3650x1800x1900
Dimension for 2000	mm	4250x1800x1900
